Name: Ebyte E28-2G4M27S SX1281 27dBm 2.4GHz LoRa Wireless RF Transceiver Module - SPI Interface - 8 KM Communication Range
Brand: Ebyte
SKU: 07310
Price: 829.00 INR
Availability: OutOfStock

Ebyte E28-2G4M27S SX1281 27dBm 2.4GHz LoRa Wireless RF Transceiver Module - SPI Interface - 8 KM Communication Range

Ebyte

Ebyte E28-2G4M27S SX1281 27dBm 2.4GHz LoRa Wireless RF Transceiver Module - SPI Interface - 8 KM Communication Range

Based on 0 reviews. - Write a review

₹829.00

₹702.54 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 7
B2B GST Credit Available

Price in reward points: 703

Stock: 0 in Stock
SKU: 07310
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

Ebyte E28-2G4M27S SX1281 27dBm 2.4GHz LoRa Wireless RF Transceiver Module - SPI Interface - 8 KM Communication Range

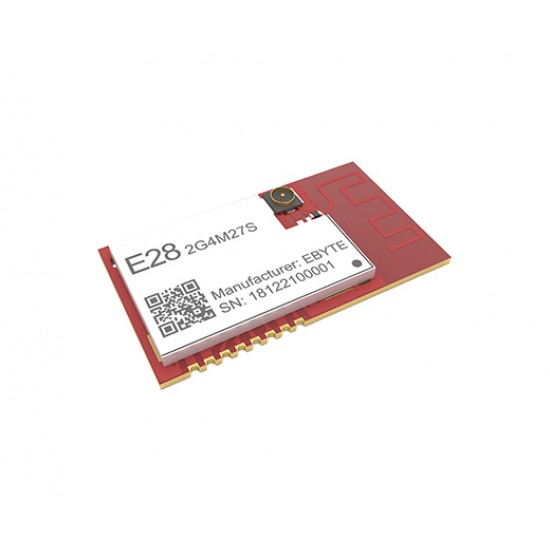

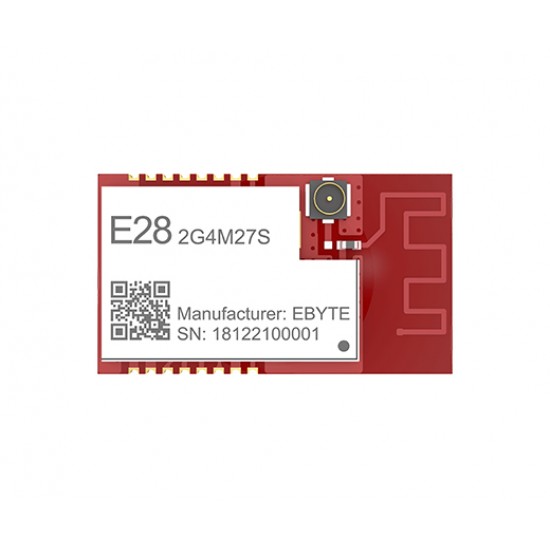

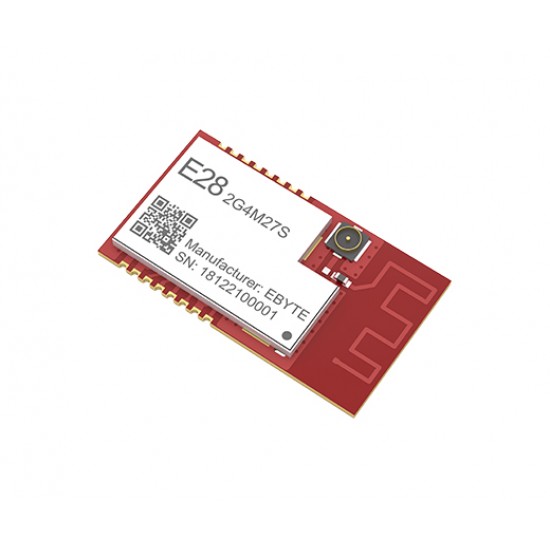

E28-2G4M27S is a 2.4GHz small SMD module (pin spacing 1.27mm)designed by Chengdu Ebyte. With built-in PCB antenna, SPI interface, it owns TX power of 500mW with power consumption.E28-2G4M27S is a hardware platform without firmware, so users need to conduct secondary development.

Datasheet

Features

Under ideal conditions, the communication distance can reach 8km
Built-in PA+LNA, maximum transmit power 500mW
Compatible with BLE protocol
Support license-free ISM 2.4GHz frequency band
Support data transmission rate of 0.595k～2Mbps
Support multiple modulation modes (GFSK Mode, FLRC Mode, LoRa Mode)
Support 2.5 ~ 3.6V power supply, more than 3.3V power supply can ensure the best performance
Adjustable air rate, up to 1.3Mbps under FLRC modulation
Excellent anti-blocking properties

Specifications

Chip solution: SX1281
Operating frequency: 2.4GHz
Blocking power (dBm): 27
Communication interface: SPI
Communication distance: 8km
Operating voltage: 2.5-3.6V
Working temperature: -40 to +85℃
Antenna interface: IPEX/PCB
Dimensions: 26.5 * 15 mm

Application

Home security alarm and remote keyless entry
Smart home and industrial sensors
Wireless alarm security system
Building automation solutions
Wireless industrial-grade remote control
Health care products
Advanced Meter Reading Architecture(AMI)
Automotive industry applications

Package Includes

1x Ebyte E28-2G4M27S SX1281 27dBm 2.4GHz LoRa Wireless RF Transceiver Module - SPI Interface - 8 KM Communication Range
