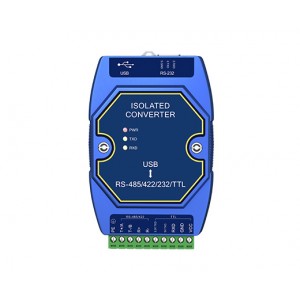

Name: Ebyte E810-U15 USB to RS485/232/422/TTL Converter - FT232RL Chip Based - Industrial Grade - Support Windows 10 - Driver Free Plug & Play
Brand: Ebyte
SKU: 06905
Price: 2050.00 INR
Availability: InStock

Ebyte E810-U15 USB to RS485/232/422/TTL Converter - FT232RL Chip Based - Industrial Grade - Support Windows 10 - Driver Free Plug & Play

Ebyte

Ebyte E810-U15 USB to RS485/232/422/TTL Converter - FT232RL Chip Based - Industrial Grade - Support Windows 10 - Driver Free Plug & Play

Based on 0 reviews. - Write a review

₹2,050.00

₹1,737.29 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 17
B2B GST Credit Available

Price in reward points: 1737

Stock: 1 in Stock
SKU: 06905
Delivery Time
Bulk & B2B RFQ

Add to Cart

Buy Now

Plan to Buy Later ? Add to Wish List

Ebyte E810-U15 USB to RS485/232/422/TTL Converter - FT232RL Chip Based - Industrial Grade - Support Windows 10 - Driver Free Plug & Play

E810-U15 is a universal USB-RS-232, RS-422, RS-485, and TTL interface convert- er. It can convert USB signals to RS-232, RS-422, RS-485, TTL signaling with surge protection on every interface.

The E810-U15 interface converter can provide reliable connections for point-to-point and point-to-multipoint communications. Each point-to-multipoint converter can allow the connection of 128 RS-422 or RS-485 interface devices. The device has a power indicator light and The data flow indicator light can be used to observe the status of the device. The supported communication methods include USB to RS-232, RS-422, RS-485 and TTL conversion.

User Manual

Features

The USB interface adopts Type-c interface, which is convenient, easy to use and reliable; • Supports 3.3VTTL and 5V TTL full duplex communication
Supports three-wire RS-232 full duplex communication
Supports four-wire RS-422 full-duplex communication
Supports two-wire RS-485 half-duplex communication
A 1200 matching resistor (1/4W) can be connected in parallel at the line terminals when multiple devices are connected externally to the converter or when communicating over long distances

Specifications

Interface communication: USB/RS485/RS232/TTL
Chip Solution: FT232RL
RS-232 interface standard: Standard DB9 male connector, full-duplex 2:RXD 3:TXD 5: GND
RS-485 interface standard: 2P 5.08mm terminal block, half-duplex
RS-422 interface standard: 5P 5.08mm terminal block, full-duplex
TTL interface standard: 3P 5.08mm terminal block, default 5V, can be switched to 3.3V through internal jumper
Power output: 2P 5.08mm terminal block, default 100mA@5V, voltage consistent with TTL level voltage
Working temperature and humidity: -40~+85°C5%~95%RH (no condensation)
Storage temperature and humidity: -40~+105C, 5%~95%RH (no condensation)
Dimensions: 72*100*34mm

Package Includes

1x Ebyte E810-U15 USB to RS485/232/422/TTL Converter
1x USB C Data Cable
1x User Manual
1x Terminal Blocks
