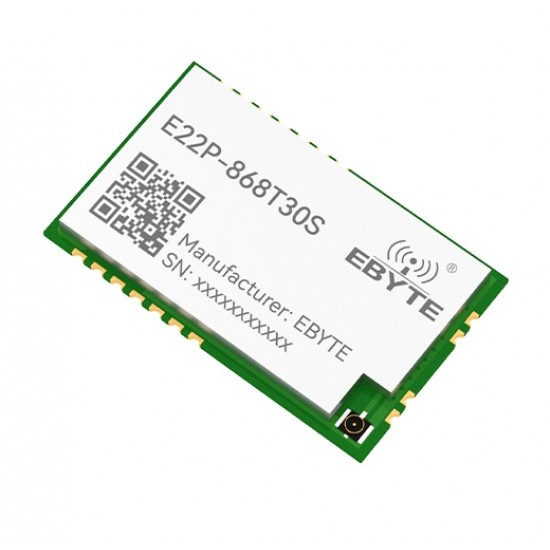

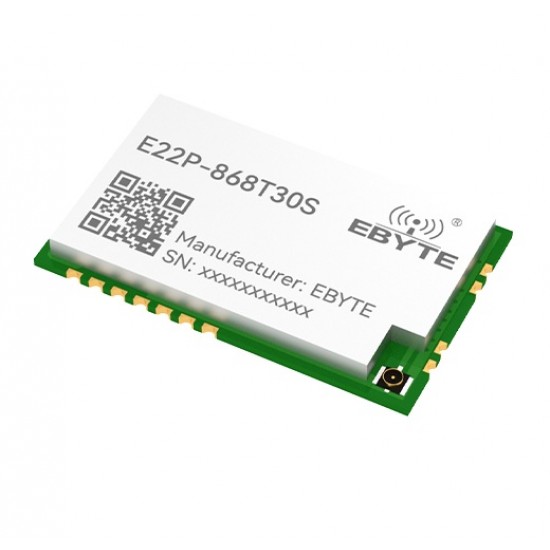

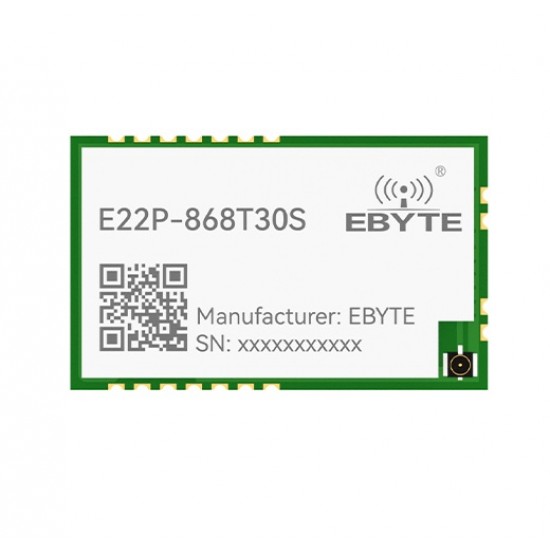

Ebyte E22P-868T30S 30dBm 868MHz LoRa Wireless Transceiver Module - 10km Communication Range IPEX-1 Antenna

The E22P-868T30S is a new-generation, enhanced LoRa wireless data transmission module developed based on a high-performance RF chip from Semtech. It features a maximum transmit power of 30dBm, operates in the 868MHz band, and utilizes LoRa spread-spectrum technology, a UART communication interface, and TTL-level output. Leveraging next-generation LoRa spread-spectrum technology, the module offers faster speeds, lower power consumption, and a compact form factor. It supports features such as wake-on-air, wireless configuration, carrier sensing, automatic relay, and communication keys; it also allows for configurable packet segmentation and supports custom development services.

Datasheet

Specifications

Product model: E22P-868T30S
Operating frequency band: 863.3～873.3MHz
Cache capacity: 1000Byte
Launch Length: 240 Byte
Airspeed : 1.75～15.5Kbps
Blocking power: 30dBm
Transmit Power: 30dBm
Reception Sensitivity: -134dBm
Operating Voltage: 2.7～5.5V
Communication level: 3.3V
Transmit Current: 582~621mA
Received Current: 23~26mA
Dormant current: ≈3uA
Reference Distance: 10km
Operating temperature: -40～+85℃
Storage temperature: -40～+95℃
Antenna Types: IPEX-1 / Stamp hole
Interface method: 1.27mm stamp hole
Communication interface: UART serial port (3.3V)
Packaging methods: SMD mounting
Dimensions: 40.5*25*3.9mm
Weight: ≈4.9g

Package Includes

1x Ebyte E22P-868T30S 30dBm 868MHz LoRa Wireless Transceiver Module - 10km Communication Range IPEX-1 Antenna
