Ebyte ECB33-PGB2N4E32-I 4GB Ram + 32GB eMMC Single Board Computer - Based on Allwinner T536 - Supports Linux / Ubuntu / Buildroot / RTlinux / RTOS / Qt / Python / Java

Ebyte ECB33-PGB2N4E32-I 4GB Ram + 32GB eMMC Single Board Computer - Based on Allwinner T536 - Supports Linux / Ubuntu / Buildroot / RTlinux / RTOS / Qt / Python / Java

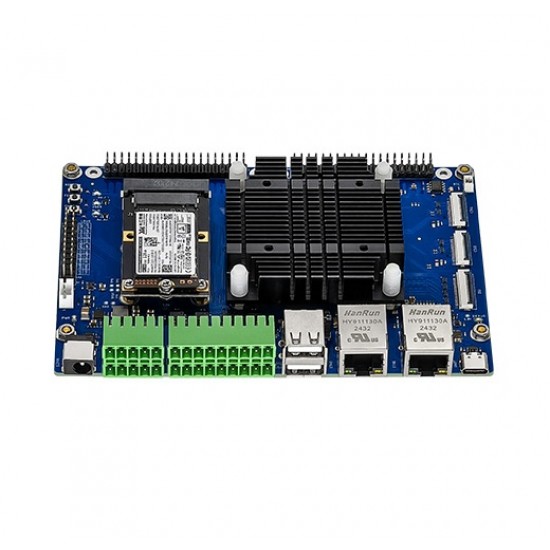

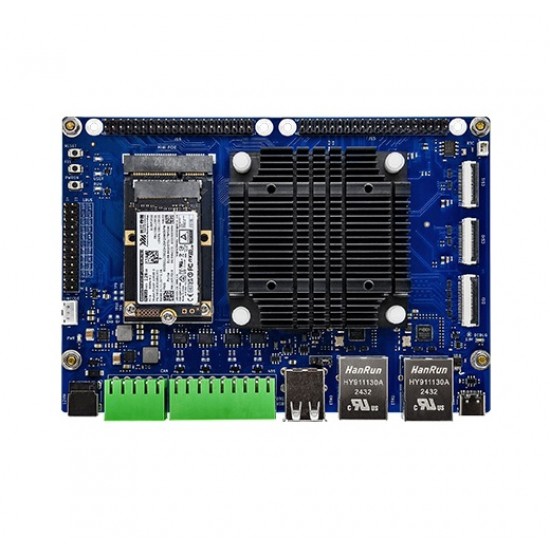

The ECB33-PGB single-board computer (SBC) is based on the ECK33-B series core board from Ebyte. The core board features a 381-pin LGA package and fully utilizes the core board's interfaces, including MIPI DSI display interface, MIPI CSI camera interface, Local Bus interface, USB 2.0, USB OTG, debug interface, Ethernet interface, audio interface, Mini PCIe interface, CAN bus interface, RS485 interface, and a rich set of extended GPIO interfaces. This superior-grade development board can be used not only for functional verification of the core board but also for direct, mass-produced industrial applications.

Datasheet

Specifications

• Power input: 1 DC socket, 12V_5A input
• MIPI DSI: 1-way 26-pin 4-lane MIPI DSI display interface, supporting a maximum resolution of 2.5K@60fps and 4K@45fps, and supporting touch screen and backlight adjustment
• MIPI CS: 2-way 22-pin 2-lane MIPI CSI camera interface, supporting camera power control
• USB HOST: 1-way USB2.0 HOST
• MINI PCIe: 1 PCIe2.1x1 lane, 5Gbps/lane, supports MINI PCIe interface
• USB OTG: 1 USB OTG
• Ethernet: 2-way 10/100/1000M adaptive RJ45 Ethernet port
• TF card: 1 TF card slot, supports plug-in detection
• Audio: 1 LINEOUT differential output
• debug: 1 UART debug serial port, Type-C interface
• GPIO: Two sets of 2.54mm2x20Pin standard RPI expansion interfaces, providing 3.3V and 5V power outputs, a total of 56 GPIO ports, multiplexing two sets of SPI interfaces, two sets of I2S interfaces, one set of SDC interface, five sets of I2C interfaces, and two sets of UART
• LOCAL BUS: 1 LOCAL BUS interface, supporting 8-bit wide data transmission
• CAN: 4-way CAN bus interface
• RS485: 8-way RS485 bus interface
• 8-way RS485 bus interface
• button
• 1 RESET button
• 1 PWRON button
• 1 FEL button
• indicator light
• 1 power indicator light
• 1 running indicator light
• 1 user indicator light
• 1 debugging indicator light
• 1 wireless network indicator light
• RTC: 1-way 1.25mm1x2Pin RTC battery holder
• TP point: 4 power-type TPs, 14 GPADCs, 1 LRADC, 1 CK32K clock, 1 CK24M clock, 2 LINEOUTL audio outputs, 1 AP-NMI, 8 GPIOs

Package Includes

• 1x Ebyte ECB33-PGB2N4E32-I 4GB Ram + 32GB eMMC Single Board Computer - Based on Allwinner T536 - Supports Linux/Ubuntu/Buildroot/RTlinux/RTOS/Qt/Python/Java
