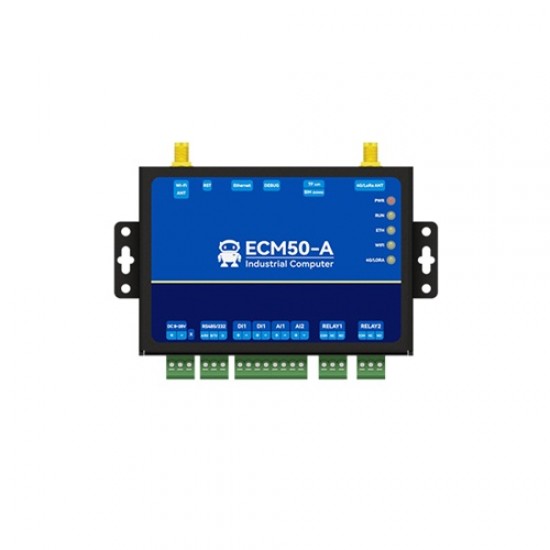

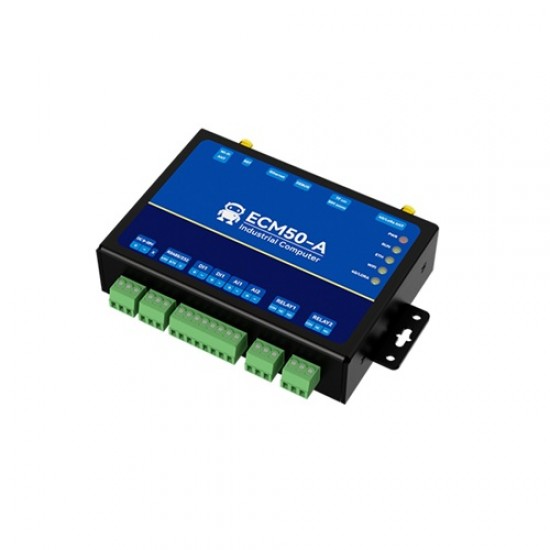

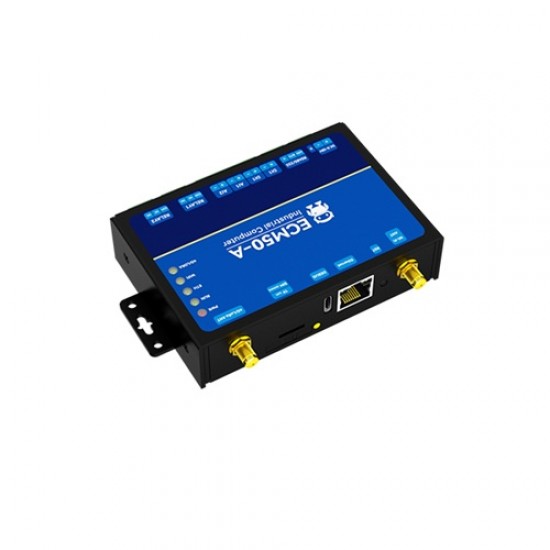

EBYTE ECM50-A08EU ESP32-S3R8 Based Industrial Grade Computer - 8MB PSRAM + 16MB FLASH | RS232, 4G LTE, Wi-Fi, Ethernet, DI/AI/DO
The ECM50-A is an industrial-grade programmable industrial control computer based on the ESP32-S3 chip, supporting four communication methods: Wi-Fi, Bluetooth, Ethernet, and 4G or LoRa. It also supports multiple network protocols such as TCP, HTTP, and MQTT. Users can program using MicroPython to execute customized business logic and data processing on the industrial control computer. It is suitable for various IoT data acquisition, transmission, and control scenarios, and allows for rapid development of custom business functions using the rich source code examples provided by the official website. This significantly reduces development time and saves project development costs. The product casing is coated with a conformal coating, providing protection against mold, moisture, and salt spray.
Specifications
- Processor Model: ESP32-S3R8
- clock speed: Dual-core 32-bit LX7 microprocessor, with a maximum clock speed of 240 MHz.
- Memory: 8MB PSRAM
- storage: 16MB NOR FLASH
- Extended storage: 1* TF card slot
- RS485/RS232: RS232
- 4G: 4G frequency bands: LTE-FDD B1/3/5/8; LTE-TDD B34/38/39/40/41
- Carrier: China Mobile is the default; full network compatibility requires customization.
- Ethernet interface: 1* RJ45 10/100Mbps
- WiFi: WiFi supports IEEE 802.11b/g/n; it supports 20MHz and 40MHz bandwidth in the 2.4GHz band, supports 1T1R mode, and has a data rate of up to 150Mbps.
- Bluetooth: Bluetooth Low Energy (Bluetooth LE): Bluetooth 5, Bluetooth mesh
- FROM: 2* Digital signal detection, compatible with both dry and wet contacts; wet contacts default to NPN type.
- AI: 2* Analog signal detection, default current type 4-20mA; voltage type can be changed; 12-bit accuracy.
- DO: 2 relays, 3A 250VAC
- button: 1* Reset button
- indicator lights: Power indicator, operation indicator (programmable), Ethernet indicator, WiFi indicator (programmable), 4G/LoRa indicator
- Power input: DC 8-28V Phoenix terminal interface or DC 5V Type-C interface
- Power consumption: Typical value: 0.5W (RF fully open), Relay fully open: 1.56W
- Structural dimensions: 111.2*79.2*28mm (excluding terminals and lugs)
Package Includes
- 1x EBYTE ECM50-A08EU ESP32-S3R8 Based Industrial Grade Computer - 8MB PSRAM + 16MB FLASH | RS232, 4G LTE, Wi-Fi, Ethernet, DI/AI/DO
