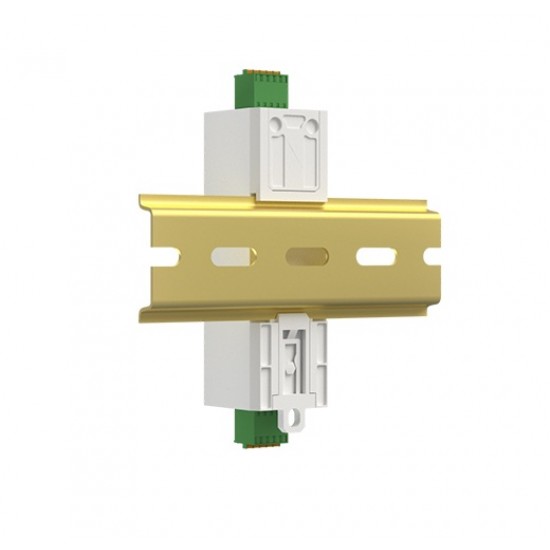

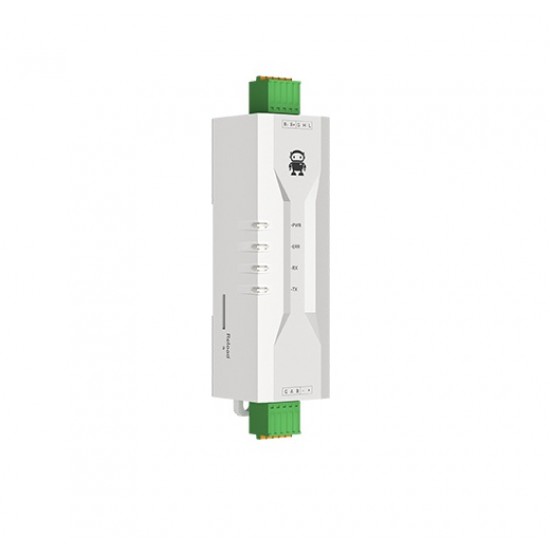

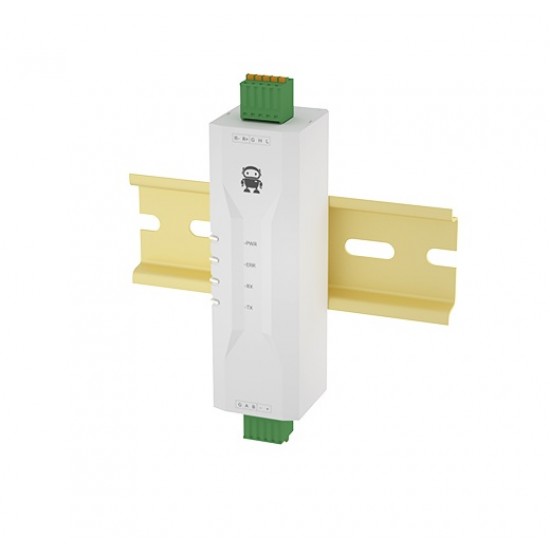

Ebyte EID091-A101 Isolated CANFD to RS485 Converter, DC 8–28V, Industrial DIN Rail Module
The EID091-A101 is an isolated CANFD to RS485 converter independently developed by Chengdu Yibaite Electronic Technology Co., Ltd. This product uses DC 8-28V power, supports ISO and Bosch CANFD protocols, and is compatible with CAN 2.0 A/B. It supports five operating modes, and the external interface uses spring terminals for easy and quick wiring. The product is coated with a conformal coating, providing anti-mildew, anti-moisture, and anti-salt spray properties.
Specifications
- Power supply voltage: DC 8~28V
- Operating current: Standby power consumption: approximately 19.7mA@12V, 11.2mA@24V; Power consumption for transmitting and receiving is approximate: 23.7mA@12V, 13mA@24V;
- RS485 baud rate: 1200~3Mbps, default 115200bps
- Arbitron domain baud rate: 5K~1Mbps, default 500Kbps
- Data domain baud rate: 100K~5Mbps, default 2Mbps (not valid in CAN mode)
- Operating temperature: -40°C~85°C, industrial grade
- Operating humidity: 10%~90%, relative humidity, no condensation
Package Includes
- 1x Ebyte EID091-A101 Isolated CANFD to RS485 Converter, DC 8–28V, Industrial DIN Rail Module
