EBYTE EWD104-BT58PA BLE 5.3 iBeacon Bluetooth Beacon | IP67 Waterproof | Motion Sensor | 160m Range

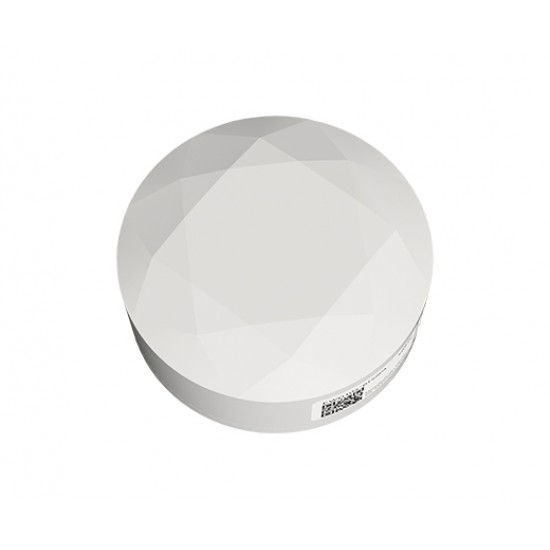

The EBYTE EWD104-BT58PA is a rugged BLE 5.3 iBeacon Bluetooth Beacon designed for reliable indoor and outdoor asset tracking, personnel monitoring, and proximity-based IoT applications. Featuring an integrated motion (accelerometer) sensor, IP67 waterproof enclosure, and an impressive wireless range of up to 160 meters in open environments, it is ideal for industrial automation, logistics, smart warehouses, healthcare, retail, and smart building deployments. Supporting both iBeacon and Eddystone protocols, the beacon is compatible with Android and iOS devices, while OTA firmware updates and configurable broadcast parameters provide flexibility for a wide range of location-based services. Powered by a replaceable CR2450 battery, the EWD104-BT58PA delivers ultra-low power consumption for long battery life and dependable long-term operation.


Datasheet


Specifications

  • Product Model: EWD104-BT58
  • Bluetooth standard: BLE5.3
  • Operating frequency band: 2402~2480MHz
  • Working life  ③: ≈3 years
  • Battery capacity: 600mAh
  • Battery Model: CR2450
  • Transmission power  ④: 0~8dBm
  • Transmission distance  ⑤: 160m
  • Broadcast cycle  ⑥: 1S
  • Power supply voltage  ⑦: 3.0~3.6V
  • Operating power consumption  ⑧: ≈26uA
  • Waterproofing: IP67
  • shell 9-inch: 40mm(Φ)*12mm
  • Operating temperature  10: -40~+85℃
  • Product weight: ≈17g


Package Includes

  • 1x EBYTE EWD104-BT58PA BLE 5.3 iBeacon Bluetooth Beacon | IP67 Waterproof | Motion Sensor | 160m Range
