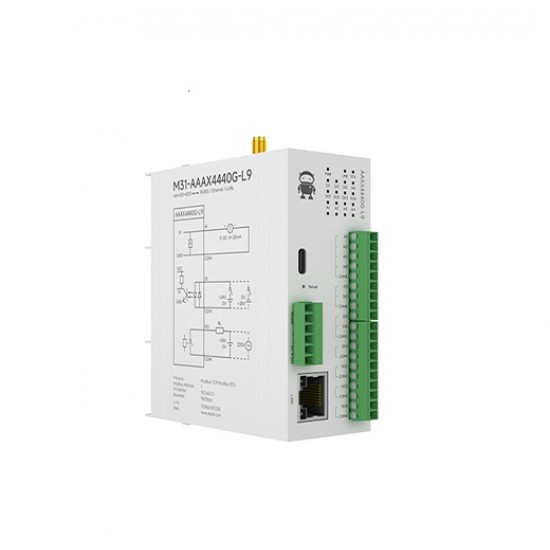

Ebyte M31-AAAX4440G-L9 4DI + 4AI + 4DO LoRa Host Wireless Remote IO Module Multi-Channel Analog/Switch Quantity Acquisition Control

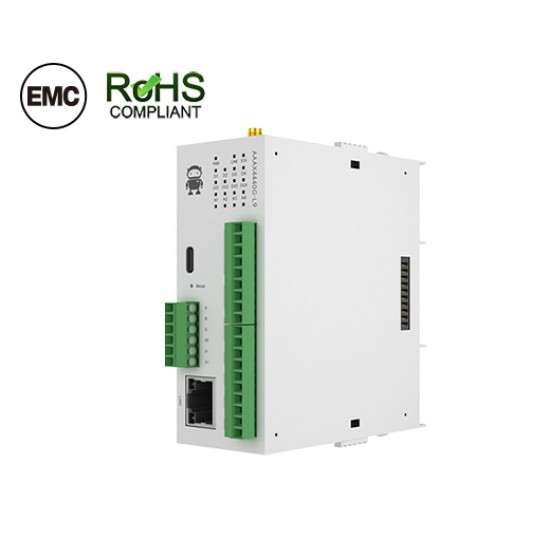

LoRa distributed IO host series is a powerful wireless remote control and data acquisition device. Utilizing LoRa wireless technology (with a built-in wireless module), this LoRa IO device can be controlled by sending Modbus RTU commands via a serial port or a remote LoRa networking device. It can be used with our company's wireless data transmission radio (E95-DTU (900SL30)) to wirelessly acquire and control digital and analog (DI/DO/AI/AO) input and output signals. The product housing is coated with a conformal coating, offering resistance to mildew, moisture, and salt spray.M31 Series has certified with EMC、RoHS .

Datasheet

Specifications

power supply

Operating voltage: DC 9～36V
Power indicator: PWR red LED indicator

Wireless parameters

M31-XXXXXXXXG-L9: 850.125～930.125MHz
Transmit power: 30dBm (maximum power about 1W)
Transmission distance: 10km (clear and open environment, maximum power, antenna gain 5 dBi, height 2m)
M31-XXXXXXXXG-L9 channel: 18 (0-80 software configurable)
airspeed: 2.4k-62.5k (6 airspeed options)
Subcontractor Chief: 240Bytes
Antenna Options: SMA antenna base (external screw and inner hole)

communication

Communication interface: LoRa、RS485、RJ45
Baud rate: 2400-230400 (8 baud rates optional)

Communication Protocol

LoRa: Standard Modbus RTU protocol
RS485: Standard Modbus RTU protocol
Ethernet: Standard Modbus TCP protocol

MODBUS

Device Address: Can be modified by software or hardware DIP switches

DI input

Input Type: NPN、PNP
Input voltage: 12~24V
Input impedance: 7.2kΩ
Acquisition frequency: Maximum 1K Hz
Input Instructions: DI green LED indicator

AI Input

Acquisition characteristics: Single-ended input/differential input (optional)

Input Type

Single-ended current: 0-20mA, 4-20mA
Differential current: 0-20mA, 4-20mA, ±20mA
Differential voltage: 0-5V, ±5V, 0-10V, ±10V

AI Resolution: 16-bit (differential)/12-bit (single-ended)
AI Precision: 1‰ (differential)/3‰ (single-ended)
Acquisition frequency: Single-ended maximum 100Hz/differential maximum 40Hz
Input Instructions: AI green LED indicator

DO output

DO output type: Type A relay (normally open)
DO output mode: Level output
Relay contact capacity: 5A 30VDC, 5A 250VAC (the maximum total current supported by the same COM common terminal is 8A)
Output Indicator: DO green LED indicator

AO output

Output Type: 0-20mA、4-20mA
AO output accuracy: 3‰
Input Instructions: AO green LED indicator

other

Product size: 110mm * 40mm * 100mm (length * width * height)
Working temperature and humidity:-40 ~ +85℃, 5% ~ 95%RH (non-condensing)
Storage temperature and humidity: -40 ～ +105℃, 5% ～ 95% RH (non-condensing)

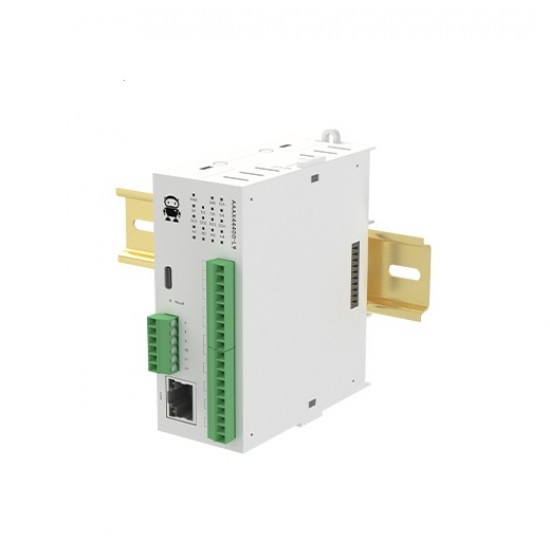

Installation: Positioning holes and guide rail installation

Package Includes

1x Ebyte M31-AAAX4440G-L9 4DI + 4AI + 4DO LoRa Host Wireless Remote IO Module Multi-Channel Analog/Switch Quantity Acquisition Control
