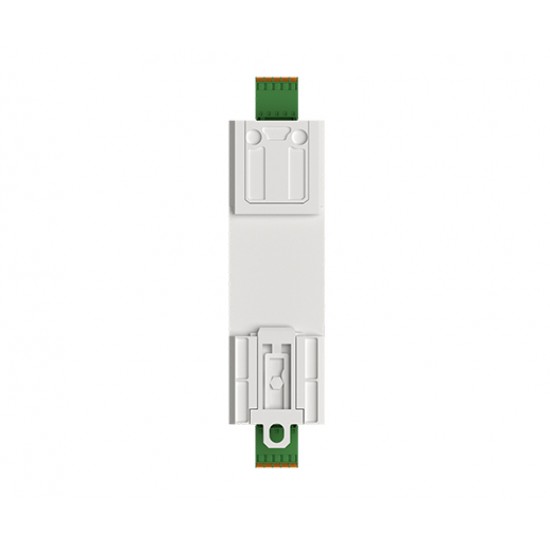

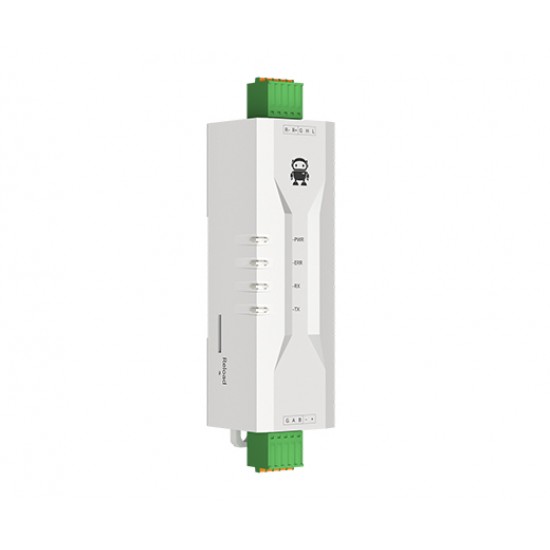

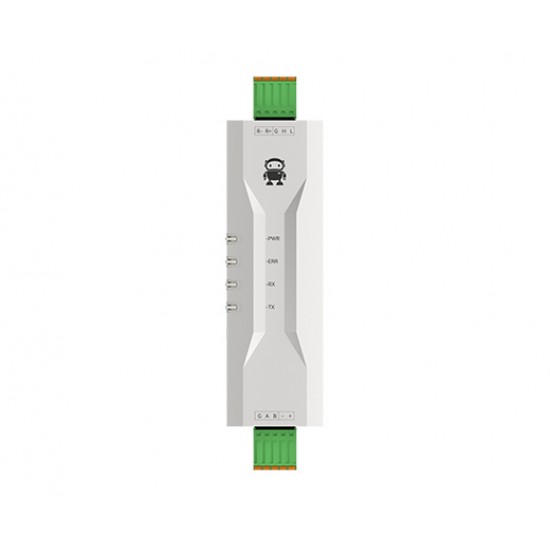

Ebyte ECAN-101 CAN To Serial Protocol RS485 CANBUS Converter - Support Modbus RTU - Din Rail Mount
ECAN-101 is a small smart protocol conversion product independently developed by Ebyte.The shell adopts three-proof coating, which is Anti-Fungal, Anti-Humidity, and Anti-Salt Spray. The product uses a wide voltage power supply of 8V ~ 28V and integrates 1 CAN-BUS interface and 1 RS485 interface, which can realize bidirectional conversion between CAN and RS485 different protocol data.
This product supports five data conversion modes: transparent conversion, transparent conversion with logo, protocol conversion, Modbus RTU conversion, and custom (user). At the same time, the ECAN-101 intelligent protocol converter has the characteristics of compact size and easy installation. It has extremely high cost performance in CAN-BUS product development and data analysis applications. It is a reliable assistant for engineering applications, project debugging and product development.
Features
- Bidirectional conversion between CAN and RS485 protocol data
- Support transparent conversion, transparent tape identification conversion, protocol conversion, Modbus RTU conversion, and customprotocol conversion
- Support RS485 interface parameter configuration
- Support the configuration of AT command parameters
- Support the configuration of upper computer parameters
- Support AT commands, upper computer, and button recovery to factory settings
- Equipped with various status indicators such as power indicator light and status indicator light
- Multi master and multi slave function, replacing multi-channel 485 with a single CAN interface
- Equipped with a 120 ohm terminal resistor
Specifications
- Supply voltage: DC 8V~28V, recommended for 12V or 24V power supply
- Working current: 9.5mA@12V (standby)
- Interface type: Serial interface: RS485:2.5 spring terminal, crimping method
- CAN interface: 2.5 spring terminals, crimping method
- Interface characteristics: Serial interface: standard RS485 level interface, baud rate range: 600bps~460800bps CAN interface: follows ISO 11898 standard, supports CAN2.0A/B, CAN baud rate range: 6Kbps~1000Kbps CAN terminal resistance Integrated, 2.5 spring terminals, crimping method, short circuiting R120+and R120- for use
- Communication indicator: light On board power supply (PWR), error reporting (ERR), receiving (RX), sending (TX)
- indicator lights working temperature -40 ℃~85 ℃
- Industrial grade Working humidity 15% to 90% RH, without condensation
Applications
- Industrial control and other CAN-BUS networks
- Networking of Automobile and Railway Equipment
- Security and fire protection network
- Underground remote communication
- Public Address System
- Parking lot equipment control
- Smart home and smart building
