Ebyte ECK20-6Y28A5ME8G-I - MCIMX6Y2CVM08AB Arm Cortex-A7 Processor - 792MHz - 512MB Ram - 8GB eMMC - NXP Low Power Consumption MPU Core Board - Support Linux & QT (Industrial Grade)

Ebyte ECK20-6Y2XA series core board is based on NXP Cortex-A7 core i.MX6ULL processor, using stamp hole connection to connect low-cost, low-power, cost-effective, high-reliability embedded core board. Widely used in industrial control, HMI, IoT and other fields. The processor uses a single ARM Cortex-A7 core with a maximum main frequency of 792MHz, which can provide 1 LCD display, 1 digital camera, Two 10/100 Ethernet, 2 USB OTG, 8 UART, 2 SDIO, 2 CAN, multiple GPIO and other rich I/O resources.


Datasheet


Specifications

  • Processor model: MCIMX6Y2CVM08AB Arm Cortex-A7
  • Processor frequency: 792MHz
  • RAM Size: 512MB DDR3
  • eMMC : 8GB
  • Display: 1 parallel display interface, maximum resolution supports WXGA (1366×768 60fps)
  • Network: 10/100 adaptive Ethernet MII/RMII interface
  • USB: 2-way USB2.0 OTG interface
  • SDIO: 2-way MMC/SD/SDIO card interface (eMMC configuration only supports 1-waySDIO lead-out)
  • Multiple extended I/O interfaces: including UART, CAN, I2C, SPI, SAI, ADC, GPIO, etc.
  • Supports on-chip watchdog function (timeout can cause processor reset)
  • Support on-chip RTC function
  • Interface type: 120-pin stamp hole
  • Power supply: single-channel DC +5V±10%@0.3A power input
  • Operating temperature: -40℃~ 85℃
  • Dimensions: 38*38*3mm


Applications

  • Smart home
  • Smart toys
  • Smart cities
  • Tablet computer
  • IoT Gateway
  • Advertising all-in-one machine
  • Industrial all-in-one machine
  • Industrial control motherboard
  • Robots and drones


Package Includes

  • 1x Ebyte ECK20-6Y28A5ME8G-I - MCIMX6Y2CVM08AB Arm Cortex-A7 Processor- 792MHz - 512MB Ram - 8GB eMMC - Low Power Consumption MPU Core Board

Write a review

Note: HTML is not translated!
Bad Good
Captcha

Warranty Terms :

Branded products (Waveshare/ Raspberry Pi/ Radxa/ DWIN etc) are as per brand warranty terms. Generic products are eligible for replacement within 7 days of delivery based on following conditions.

Products are eligible for a replacement if there is physical damage during transit or a clear manufacturing defect. Any claim for damage/ wrong items/ replacement must be made within 48 hours of successful delivery of the product. Requests for refund of amount or exchange of product(s) will be reviewed on a case by case basis and HUBTRONICS carries final rights to take a final decision on refund, store credit or exchange.

What to take care of ?

Most of our products are technical in nature and require trained personnel to handle them. Any kind of mishandling can result in damage or malfunctioning of the product, it is not possible for us to provide a replacement or refund if the product is damaged due to technical or physical mishandling.

Who pays the return shipping cost?

Free of cost return pickup from delivery address is eligible for products categorized as manufacturing defect/ Damage in transit/ Wrong items delivered. We do not support return pickup for any B2B order or offline orders not placed on website. Buyer need to arrange return shipping for B2B orders.

What voids warranty?

Please note that replacement/ return or refund is not possible if the product is not compatible with your system/application. Please check all the technical details/ dimensions etc. before ordering and contact us for any kind of clarifications.

If product is soldered/ programmed at any point or physically altered in any way, it is not eligible for return/ replacement. If the item requires soldering for testing, please ensure that you use suitable clips or jig to test it without soldering. Any kind of soldering job makes the product ineligible for return or replacement.

Following items are not eligible for return under any circumstances

  • Device Programmers / Dongles
  • Soldering Consumables (Wire, Flux etc)


Tags: Ebyte , ECK20-6Y28A5ME8G-I , Core Board

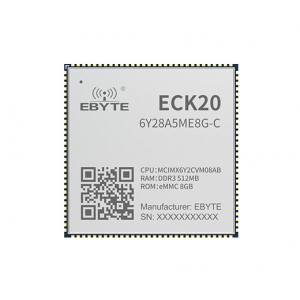

Ebyte ECK20-6Y28A5ME8G-C - MCIMX6Y2CVM08AB Arm Cortex-A7 Processor - 792MHz - 512MB Ram - 8GB eMMC - NXP Low Power Consumption MPU Core Board - Commercial Grade
Ebyte ECK20-6Y28A5ME8G-C - MCIMX6Y2CVM08AB Arm Cortex-A7 Processor - 792MHz - 512MB Ram - 8GB eMMC - NXP Low Power Consumption MPU Core Board - Commercial Grade
Ebyte ECK20-6Y28A5ME8G-C - MCIMX6Y2CVM08AB Arm Cortex-A7 Processor - 792MHz - 512MB Ram - 8GB eMMC - NXP Low Power Consumption MPU Core Board - S..
₹​2,962.00
Ex Gst ₹​2,510.17
Add to Cart
Add to Wish List Compare this Product

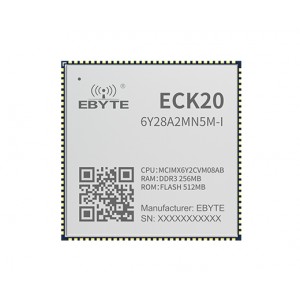

Ebyte ECK20-6Y28A2MN5M-I - MCIMX6Y2CVM08AB - Arm Cortex-A7 Processor - 792MHz - 256MB Ram - 512MB eMMC - NXP Low Power Consumption MPU Core Board - Industrial Grade
