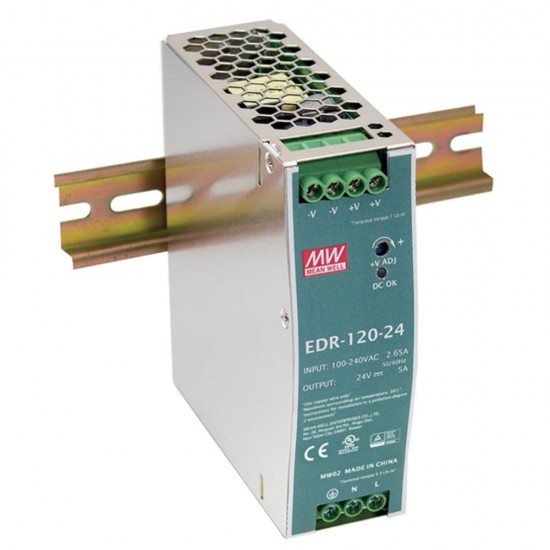

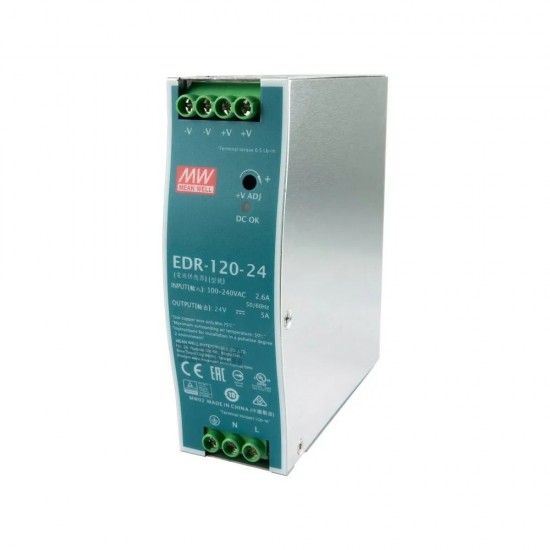

Name: Mean Well EDR-120-24 24V 5A 120W Industrial DIN Rail Power Supply - Single Output
Brand: Mean Well
SKU: 07512
Price: 2199.00 INR
Availability: InStock

Mean Well EDR-120-24 24V 5A 120W Industrial DIN Rail Power Supply - Single Output

Mean Well

Mean Well EDR-120-24 24V 5A 120W Industrial DIN Rail Power Supply - Single Output

Based on 0 reviews. - Write a review

₹2,199.00

₹1,863.56 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 19
B2B GST Credit Available

Price in reward points: 1865

Stock: 3 in Stock
SKU: 07512
Delivery Time
Bulk & B2B RFQ

Add to Cart

Buy Now

Plan to Buy Later ? Add to Wish List

Mean Well EDR-120-24 24V 5A 120W Industrial DIN Rail Power Supply - Single Output

The Mean Well EDR-120-24 is a reliable and compact 24V 5A 120W industrial DIN rail power supply designed for use in automation systems, control panels, and industrial equipment. Built for durability and long service life, it delivers stable DC output with high efficiency while operating in demanding environments.

This power supply supports a wide AC input range and features essential protections such as short circuit, overload, and overvoltage protection to ensure safe and continuous operation. Its slim DIN rail–mount design allows easy installation and space-saving integration inside electrical cabinets. The EDR-120-24 is compliant with international safety standards, making it a dependable choice for industrial control, PLC systems, and factory automation applications.

Datasheet

Features

Reliable 24V DC Output: Provides stable 24V DC power for a wide range of industrial applications
120W Power Rating: Supports up to 5A output for mid-level power requirements
Industrial DIN Rail Mount: Easy and secure installation on standard DIN rails
Wide AC Input Range: Works with various input voltages for global compatibility
High Efficiency: Reduces heat generation and improves energy savings
Built-in Protection: Includes short circuit, overload, and overvoltage protection
Compact and Space-Saving Design: Suitable for control cabinets and electrical panels
Durable and Long-Lasting: Designed for industrial environments
Meets Safety Standards: Conforms to international safety and EMC requirements

Specifications

Model: Well EDR-120-24
Output Voltage: 24 V DC
Output Current: 5 A
Output Power: 120 W
Input Range (AC): 90 VAC – 264 VAC
Input Range (DC): 127 VDC – 370 VDC
Frequency Range: 47 – 63 Hz
Output Adjustment Range: ±10% (adjustable via potentiometer)
Ripple & Noise (max.): ≈ 100 mV p-p
Regulation (Line / Load): ±0.5 % / ±1 %
Efficiency (Typical): ~87.5 %
Cooling: Convection (fan-less)
Mounting: DIN rail TS-35/7.5 or 15
ORKING TEMP.: -20 ~ +60 (Refer to "Derating Curve") ℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85 , 10 ~ 95% RH
Dimensions: 40*125.2*113.5mm (W*H*D)
Weight: 650 g
