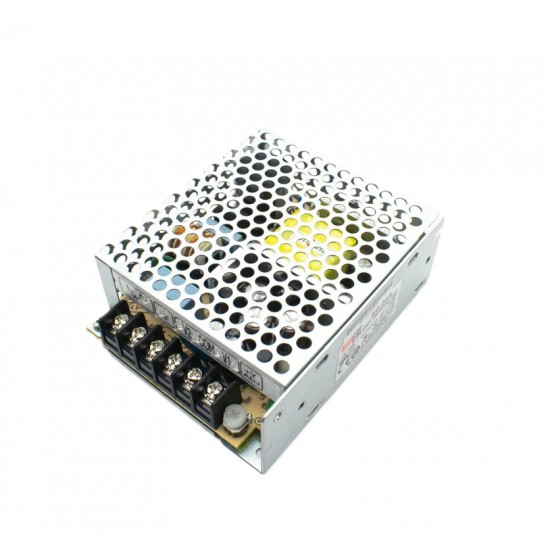

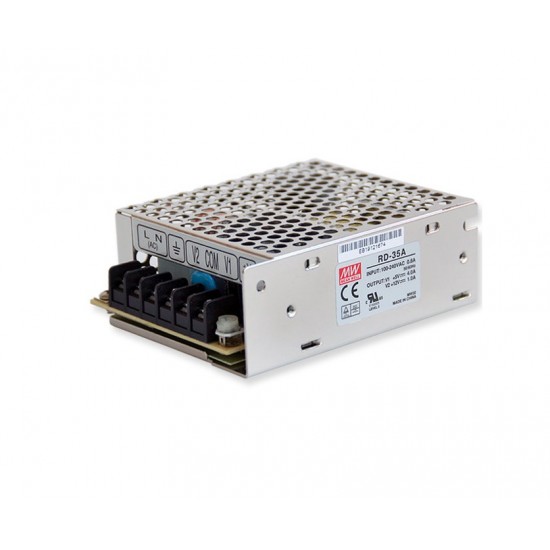

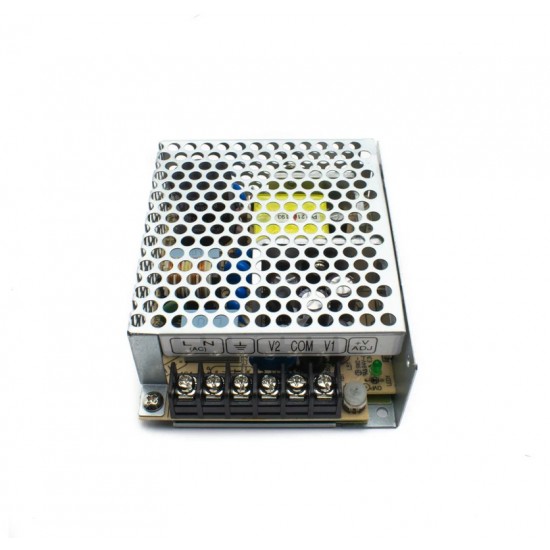

Mean Well RD-35-A 5V 4A + 12V 1A 32W Dual Output Switching Power Supply (SMPS)
The Mean Well RD-35-A is a compact and reliable 35W dual output switching power supply designed for industrial control systems, automation equipment, and embedded applications. It provides two DC outputs (+5V and +12V) from a single unit, making it ideal for systems that require multiple voltage rails with stable and efficient power delivery.
Built with high efficiency and low ripple noise, the RD-35-A ensures consistent performance and long-term reliability. It features short circuit, overload, and over-voltage protection, safeguarding both the power supply and connected devices. The unit supports a wide AC input range, allowing stable operation in various environments.
With its compact enclosed design and screw terminal connections, the Mean Well RD-35-A is easy to install and well-suited for control panels, communication equipment, LED controllers, and test instruments. Backed by Mean Well’s proven quality standards, it is a dependable power solution for industrial and commercial applications.
Features
- Dual DC Outputs: Provides two isolated outputs — +5 V and +12 V — ideal for powering multiple circuits or devices simultaneously.
- Rated Output Power ~32 W: Sufficient for small control systems, instrumentation, LED drivers, and embedded electronics.
- Universal AC Input: Accepts a wide input range of 88 – 264 VAC (and 125 – 373 VDC), making it suitable for global AC mains.
- Protection & Reliability
- Built-In Protections: Includes protection against short circuit, overload, and over-voltage, enhancing safety for both the supply and connected devices.
- Automatic Recovery: Protection circuitry resets automatically after faults are cleared.
- Long-Life Components: Uses 105 °C rated electrolytic capacitors for durability and stable performance.
- Convection Cooling: Fan-less design reduces noise and eliminates moving parts, increasing reliability.
- Free Air Cooling & 5G Vibration Resistance: Works well in industrial environments with vibration and without forced air.
- LED Power Indicator: Shows when the unit is powered ON.
Specifications
- Model: RD-35A
- Input Voltage Range: 88 – 264 VAC / 125 – 373 VDC
- Frequency: 47 – 63 Hz
- Output #1 Voltage: +5 V DC
- Output #1 Current: 4 A max
- Output #2 Voltage: +12 V DC
- Output #2 Current: 1 A max
- Total Rated Power: ~32 W
- Ripple & Noise (Max): ~80 mVp-p @ 5 V, ~120 mVp-p @ 12 V
- Voltage Adjustment: CH1: ~4.75 – 5.5 V (adjustable)
- Efficiency (Typ.): ~79 %
- Operating Temp Range: –25 °C to +70 °C
- Working Humidity: 20 ~ 90% RH
- Storage Temp Range: -40 ~ +85 , 10 ~ 95% RH ℃
- Protections: Short circuit / Overload / Over-voltage (auto recovery)
- Dimesions: 99*82*36mm (L*W*H)
Package Includes
- 1x Mean Well RD-35-A 5V 4A + 12V 1A 32W Dual Output Switching Power Supply (SMPS)
