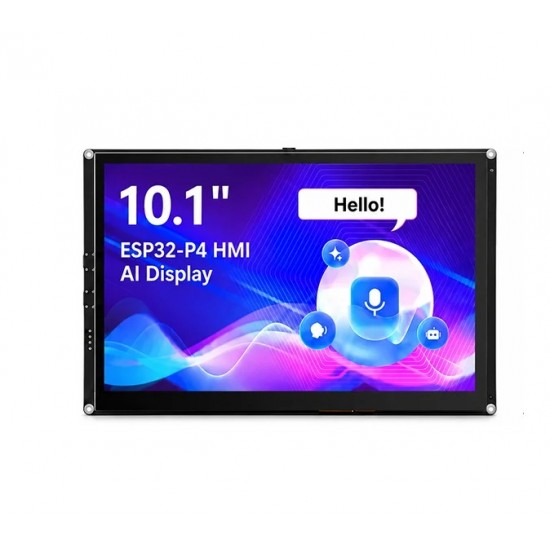

Elecrow 10.1 Inch Smart Home Control Panel for Home Assistant, Ready-to-Use, Wall-Mounted Touchscreen-Without Camera
A ready-to-use 10.1" Home Assistant control panel based on the Elecrow CrowPanel ESP32-P4. Connect it to Wi-Fi, link it to your Home Assistant server, and access the same dashboard, devices, scenes, and automations you already use. Designed as a dedicated wall-mounted interface, it keeps your smart home controls always available without relying on a phone or laptop.
Your Home Assistant Dashboard, Always Within Reach
Turn your Home Assistant setup into a dedicated wall-mounted smart home control center.
Powered by the CrowPanel Advanced 10.1-inch ESP32-P4 HMI platform, this Home Assistant control panel comes with the Home Assistant firmware pre-installed, so you don't need to develop your own ESP32 firmware or build a touchscreen interface from scratch.
Simply connect the panel to your Wi-Fi network, link it to your existing Home Assistant server, and access your dashboards, devices, scenes, and automations directly from the 10.1-inch touchscreen.
Features
- Home Assistant Ready: Pre-installed firmware for a quick, hassle-free smart home setup
- Ready Out of the Box: No ESP32 programming or HMI development required
- 10.1" IPS Touchscreen: 1024 × 600 resolution with responsive capacitive touch
- Wi-Fi Connected: Connect directly to your existing Home Assistant server.
- No Custom HMI Development: Use your existing dashboards, cards, scenes, and controls.
- Powerful ESP32-P4: Dual-core RISC-V processor for smooth and responsive HMI performance
- Wi-Fi 6 & Bluetooth: Fast and reliable wireless connectivity for smart home applications
- Built-in Audio: Dual speakers and microphone for interactive control and future voice applications
- Rich Expansion: GPIO, UART, I²C, USB-C, SD card, and optional wireless module support
Perfect for
- Smart Home Wall Panels
- Lighting & Scene Control
- Temperature & Climate Monitoring
- Energy Monitoring
- EV Charging Control
- Solar Energy Dashboards
- Security & Sensor Dashboards
- Home & Building Automation
Specifications
- CPU/SoC: ESP32-P4
- RISC-V 32-bit dual-core processor for HP systems, running at up to 400 MHz;
- RISC-V 32-bit single-core processor for LP systems, running at up to 40 MHz
- System Memory
- 768 KB L2MEM(HP)
- 32 KB SRAM(LP)
- ·8 KB TCM
- 32 MB PSRAM
- Memory
- 128 KB ROM(HP)
- 16 KB ROM(LP)
- 16 MB Flash
- Development Environment: ESP-IDF, Arduino IDE
- Firmware: Pre-installed Home Assistant Firmware (Ready-to-use)
- Size: 10.1 inch
- Resolution: 1024*600
- Display Panel: IPS Panel
- Touch Panel: Capacitive Touch, Single/5-point Touch
- Viewing Angle: 178°
- Brightness: 400 cd/m²(Typ.)
- Color Depth: 16.7M (8-bit)
- WiFi: Support 2.4GHz(Wi-Fi6), 802.11 b/g/n
- Bluetooth: Supports Bluetooth 5.3 and BLE
- Other: Zigbee、LoRa、nRF2401、Matter、Thread and Wi-Fi Halow (Optional)
- Interface: USB2.0, UART, I2C, GPIO female headers, SD card holder, battery socket, speaker jack, camera header, module female headers, etc.
- Function: Audio amplifier, battery charge management, USB to UART, microphones, dual speakers, etc.
- Speaker Connector
- Model: BX-PH 2.0-2PWT
- Number of Pins: 1x2P
- Pin Pitch: 2mm
- Dimensions(L*W*H): 8*8.5*5.6mm
- Mounting Type: SMT Right Angle
- Reset Button: Yes, press to reset the device
- Boot Button: Yes, press and hold the power button to burn the program
- Power Button: Switch On/Off
- PWR: Device power on/off indication
- CHG: Lithium battery charging status, Low battery state
- Installation method: All around mounting holes(M3 3.2mm)
- Operating temperature: -20~70 °C
- Storage temperature: -30~80 °C
- Power Input: 5V/2A, USB or UART terminal
- Dimensions: 248*147mm
Package Includes
- 1x Elecrow 10.1 Inch Smart Home Control Panel for Home Assistant, Ready-to-Use, Wall-Mounted Touchscreen-Without Camera
