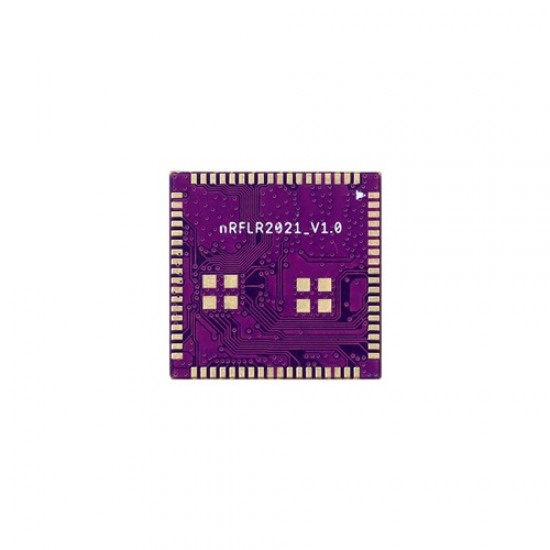

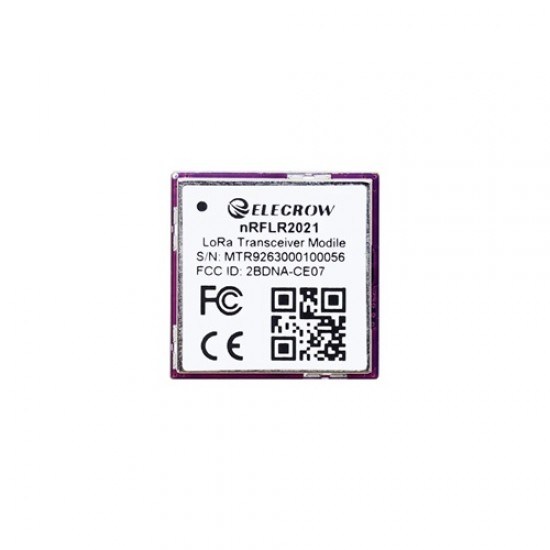

Elecrow nRFLR2021 868MHz Wireless Module with nRF52840 & LR2021 Multi-Band & Multi-Protocol (MPN:LMM16221D)
nRFLR2021 LoRa Module–nRF52840 & LR2021 for Multi-Band IoT Connectivity
The nRFLR2021 is a high-performance multi-protocol LoRa module that combines the Nordic nRF52840 MCU with Semtech’s fourth-generation LR2021 LoRa transceiver. It supports Sub-GHz, 2.4 GHz ISM, and licensed S-band connectivity for flexible terrestrial and satellite IoT applications. The module supports LoRaWAN 1.0.4 Class A, B, and C, as well as Amazon Sidewalk, Sigfox, Wi-SUN FSK, W-MBUS, and Z-Wave, while the nRF52840 adds Bluetooth LE, BLE Mesh, NFC, Thread, and Zigbee connectivity. With FLRC speeds up to 2.6 Mbps, built-in AT commands, SDK support, UART connectivity, and low-power operation, the nRFLR2021 is ideal for global IoT, remote sensing, asset tracking, industrial applications, and emergency communication.
Features
- LoRa Transceiver: Semtech fourth-generation LR2021 with Sub-GHz, 2.4 GHz ISM, and licensed S-band support
- Multi-Protocol Support: LoRaWAN 1.0.4 Class A/B/C, Amazon Sidewalk, Sigfox, Wi-SUN FSK, W-MBUS, and Z-Wave
- Wireless Connectivity: nRF52840 with Bluetooth LE, BLE Mesh, NFC, Thread, and Zigbee
- High-Speed Communication: FLRC modulation with data rates up to 2.6 Mbps
- LoRa Modulation: Supports LoRa, (G)FSK, LR-FHSS, and FLRC modulation
- Frequency Range: Sub-GHz 150–960 MHz, 2.4 GHz ISM, and licensed S-band 1900–2200 MHz
- Long-Range Connectivity: Typical communication range of 5–8 km, with over 12 km possible under line-of-sight conditions
- Low Power: Chip-level sleep current as low as 470 nA and Sub-GHz receive current of 5.7 mA
- Easy Development: Built-in AT command firmware, SDK support, and UART interface for quick integration
- Industrial Grade: Operating temperature from -40°C to +85°C
- Certifications: FCC ID and CE (RED)
Specifications
- Processor: nRF52840 processor, dual-core 32-bit, 64MHz main frequency,
- RF chip: Semtech LR2021 Chip
- Transmit Power TX: 22 dBm@Max(SUB-GHz), 12dBm(2.4 GHz)
- Receiving Sensitivity: -141.5dBm @SF12/BW=125kHz
- Demodulator: Support LoRa/(G)FSK signal modulation，SF5~SF12; Support 150MHz-960MHz configuration;
- Data Transfer Rate: LoRa 0.0458–125 kbps; FLRC 260 kbps–2.6 Mbps
- Frequency: Sub-GHz 850–930 MHz, 2.4 GHz ISM, and S-band 1900–2200 MHz
- Communication Interface: SPI(0~10Mbps)

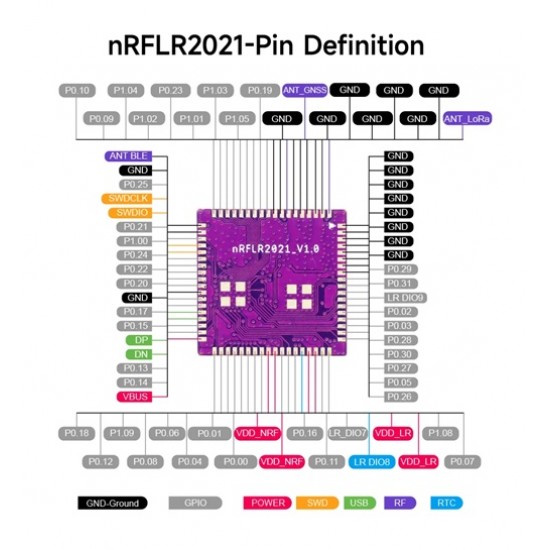

- Lead Pin: Such as SPI signal, VCC, multiple GND pins, NRST, ANT (Sub-GHz), ANT (2.4 GHz), multiple DIO pins, TX control, RX control, BUSY state, etc.
- Antenna: SMT pins, impedance @50 Ω (Sub-GHz antenna pin + 2.4 GHz antenna pin)
- Reference Power Consumption
- Sleep power consumption: 1.4 µA
- Standby power consumption: 1.16mA
- Receive power consumption (including MCU)
- 2.4GHz: 6.10mA
- 868/915MHz: 5.75mA
- Transmit power consumption (including MCU)
- 868MHz: 16.5mA
- 2.4GHz: 30.5mA
- 915MHz: 101mA
- Communication Distance: 6~8km, maximum over 15km
- LoRaWAN Protocol: Class A/B/C (compliant with LoRaWAN 1.0.4 specification)
- Operating Voltage: 1.8~3.7V
- Operating Temperature: -40℃~+85℃, Industrial standard design

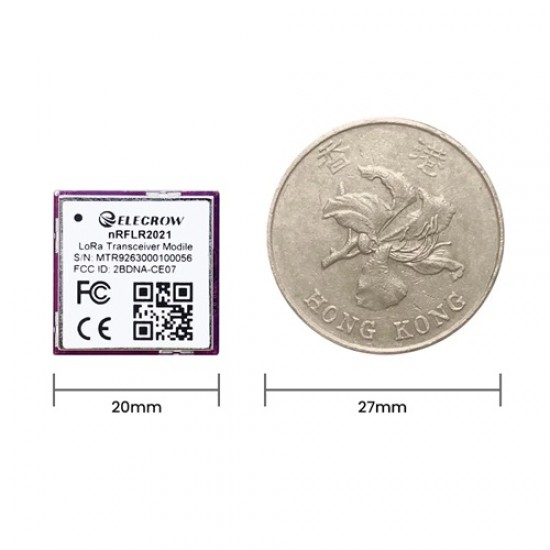

- Package Size: 20*20*3.5mm, 80-Pin, SMT surface mount, LGA package, 1mm board thickness
- Weight: 3g
Applications
- Wireless video and image transmission
- Smart cities
- Smart agriculture
- Industrial automation
- Environmental monitoring
- Logistics management
- Meter reading
- Satellite IoT
- Marine monitoring
- Cross-border tracking
- Mesh networks
- Internet of Things (IoT)
Package Includes
- 1x nRFLR2021 Wireless Transceiver Module
