Elecrow RC070S 7inch 1024x600 IPS Capacitive Touch Monitor (MPN:DIS78950R)

Elecrow RC070S 7inch 1024x600 IPS Capacitive Touch Monitor

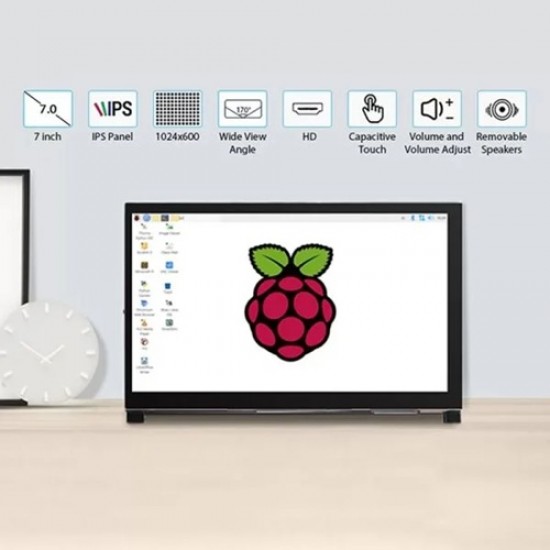

This 7-inch IPS touchscreen boasts a 1024×600 HD resolution with vibrant colors and a wide 178° viewing angle. Its responsive 5-point capacitive touch delivers smooth multi-touch on Windows and precise single-touch on Raspberry Pi. Featuring plug-and-play setup via HDMI and USB cables (no drivers needed), it offers broad compatibility with Raspberry Pi boards, PCs, and gaming consoles. Equipped with built-in dual speakers and audio jacks, along with adjustable backlight and volume, it provides an all-in-one audio-visual solution for DIY projects, industrial control, and entertainment applications.

This is an excellent mini IPS screen 7-inch HD small monitor. It supports HD 1024x600 resolution, and IPS monitors help keep colors consistent at a wide viewing angle.

With a capacitive USB touchscreen, simply power the USB touch port to achieve touch function, and no need to install the driver; plug and play!

Signal via HDMI-compatible port, power&touch via micro USB port, no driver needed. No cable solution for Raspberry Pi 4, just use 2 simple adapters to connect your Raspberry Pi 4 directly.

Equipped with built-in dual speakers and audio jacks, along with adjustable backlight and volume, it provides an all-in-one audio-visual solution for DIY projects, industrial control, and entertainment applications.

Four corner holes let you mount the mini monitor onto your DIY IoT projects that you’re working on. This Raspberry Pi display also comes with 2 stands, is easy to install and remove, great for on-the-go use.

Datasheet

Features

• Easy connection to RPI 4B, compatible with Raspberry Pi 5/4/3/2
• 170-degree wide view angle

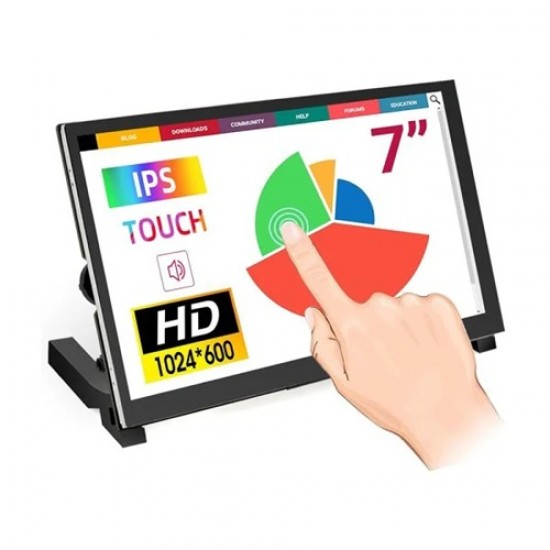

• 5-point capacitive touch HD display
• Dual removable audio speakers to add more fun to your life
• With two pro stands, easily support the monitor

Specifications

• Model: RC070S
• Size: 7 Inch
• Resolution: 1024*600
• Display Type: IPS
• Touch: Capacitive Touchscreen
• 60FPS
• Brightness: 260cd/m2
• Working temperature: -20-60℃
• Storage temperature: -30-70℃
• certification: CE
• Speaker: Support
• Interface: HD&USB

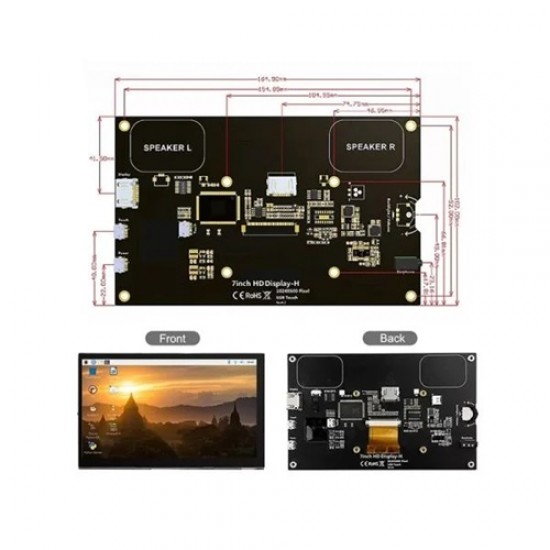

• Dimension:164*99mm
• Screen Size:154*86mm
• Net weight: 235g

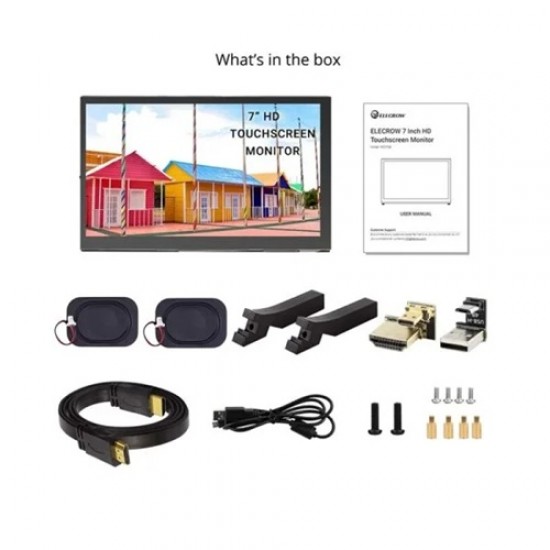

Package Includes

• 1 x 7 Inch IPS Monitor
• 1 x USB to Micro USB Connector
• 1 x HD to Micro HD Connector
• 1 x USB to Micro USB Cable
• 1 x HD to HD Cable
• 4 x M2.5 Screws
• 4 x Small Copper Pillars
• 2 x Pro Stand
• 2 x M3 Screws
• 2 x Speakers
