Elecrow ThinkNode M9 MeshCore Communication Terminal with Full Keyboard 2.4inch LCD|ESP32-S3 + LR1110 | GPS | 2300mAh-868 MHz (MPN:LMM16509D)

Elecrow ThinkNode M9 MeshCore Communication Terminal with Full Keyboard 2.4inch LCD|ESP32-S3 + LR1110 | GPS | 2300mAh-868 MHz (MPN:LMM16509D)

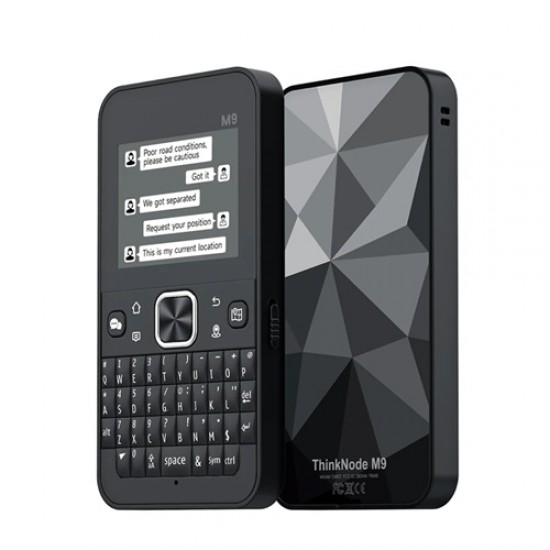

The M9 is a standalone wireless communication device designed in the form factor of a mobile phone, completely eliminating the cumbersome process of connecting a mobile phone to an external receiver via Bluetooth, a common feature in traditional solutions. It highly integrates display, input, communication, and positioning functions into a mobile phone-sized body, achieving a complete "single-device, ready-to-use" experience.

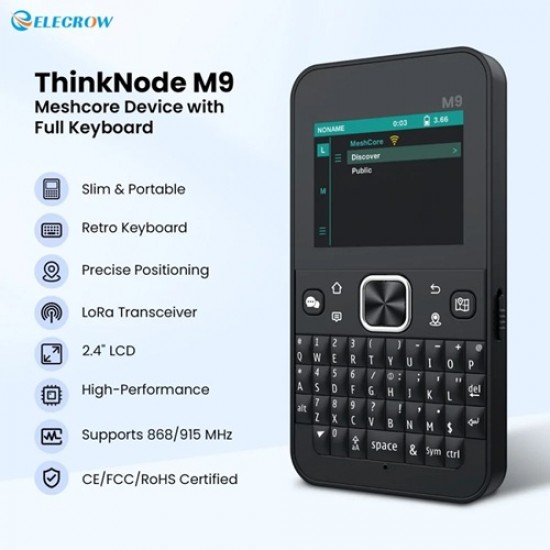

Feature

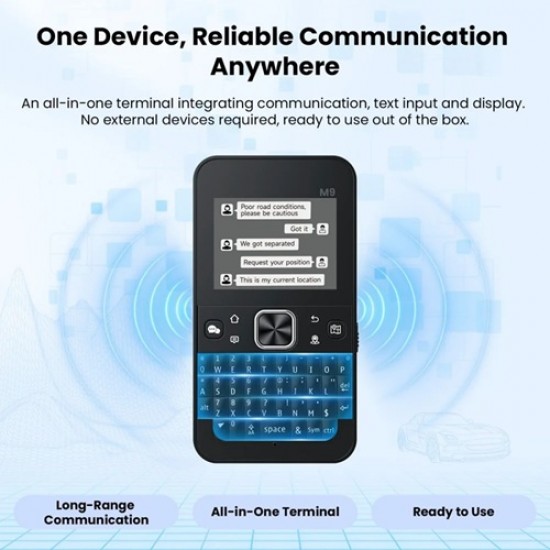

• All-in-one portability: A smartphone-like design integrating communication, input, and display. No external devices are required; it's ready to use right out of the box, with zero learning curve.
• Immediate activation: Pre-installed with Meshcore firmware. It connects to decentralized mesh networks immediately upon startup, supporting various built-in functions such as message sending and receiving, and location sharing.
• Powerful performance: Equipped with an ESP32-S3 dual-core processor (240MHz), 512KB SRAM + 16GB Flash, ensuring smooth and stable operation.
• Versatile wireless: The Semtech LR1110 achieves long-range LoRa communication, integrates Bluetooth & Wi-Fi, and features a built-in optimized antenna for reliable signal strength.
• Retro keyboard + clear display: A 2.4-inch color LCD paired with a physical full keyboard provides efficient and tactile input.
• Precise positioning: Built-in high-precision GPS and ceramic antenna, supporting BeiDou, GPS, Galileo and GLONASS positioning, and with a magnetic compass sensor, navigation and location sharing are more intuitive.
• Long battery life: 2300mAh battery with deeply optimized power consumption, supporting 2~3 days of use(standby mode), easily handling outdoor and emergency scenarios.

Specifications

• Processor: Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, with a main frequency of up to 240MHz
• System memory: 512KB SRAM, 8M PSRAM, 384KB ROM
• Storage: 16M Flash(Built-in memory  card)
• Development Language: MicroPython, C/C++
• Firmware: Meshcore completely compatible
• Development Environment: ESP-IDF, Arduino IDE, LVGL Library
• Configuration Interface: The official MUI and the mobile app
• Wireless Communication
• Bluetooth: Bluetooth Low Energy and Bluetooth 5.0
• WiFi: Support 802.11a/b/g/n，2.4GHz
• LoRa: LR1110, Supports EU868MHz (FPC Antenna)
• GNSS Positioning: Real-time trajectory recording, supports location sharing, and simultaneously analyzes BeiDou, GPS, Galileo, and GLONASS signals.
• Panel Size: 2.4inch
• Panel Type: TFT-TN, LCD
• Resolution: 240(RGB)*320
• Brightness: 200 cd/m²
• Touch: None
• Interface: Type-C socket, full-speed USB 2.0, for burning/charging.

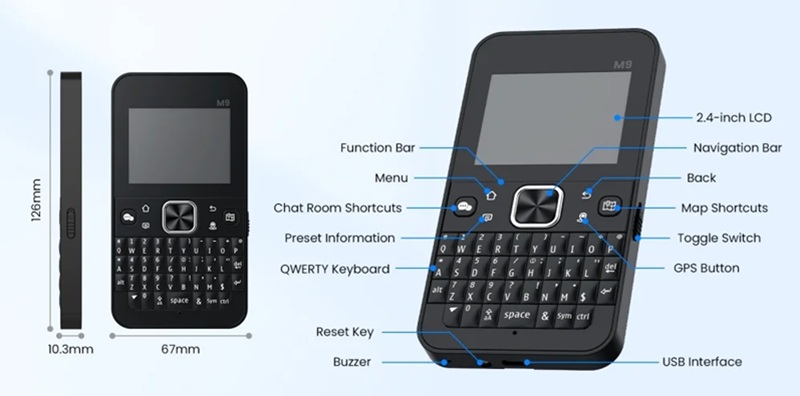

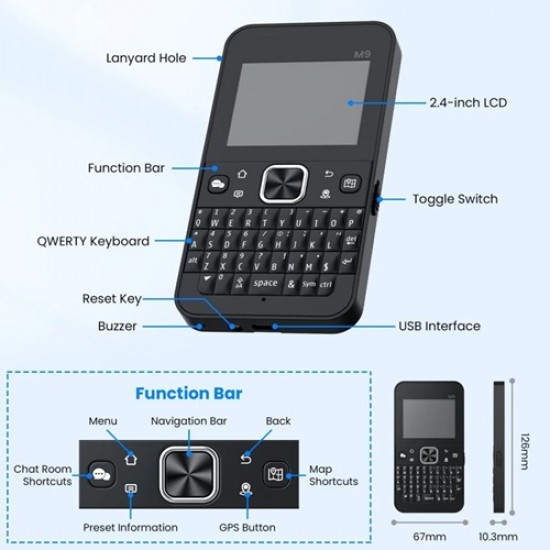

• Keyboard: Function area, navigation area, full keypad (QWERTY, 37 keys), RESET key (hidden)
• Switch: Yes, toggle switch

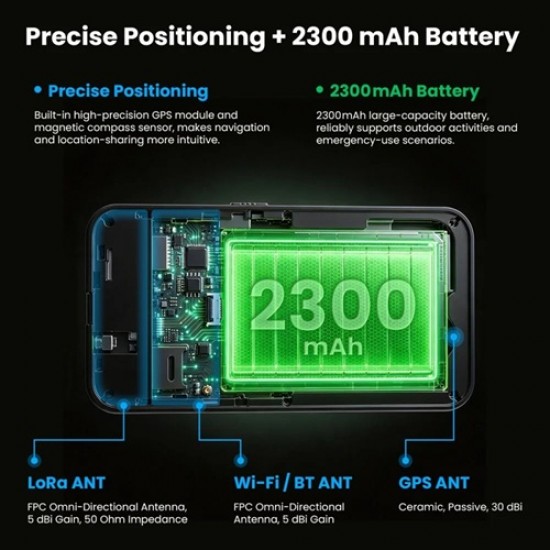

• Antenna: Built-in GPS Antenna, Wi-Fi/BLE Antenna and LoRa Antenna
• Type: Lithium-polymer battery
• Capacity: 2300mAh/3.8V
• Form: Rectangular, 415367
• Protection: With protection board, over-discharge, over-charge, etc.
• RTC clock: Enables faster warm-up and time synchronization
• Magnetic compass: Real-time display of user orientation.
• Buzzer: Audio alerts and feedback
• Power Input: Via Type-C or battery
• Enclosure Material: Plastic Material
• Installation Method: Rear-Mount, Wall-Mount, Desktop
• Operating temperature: -10~60℃
• Storage temperature: -20~70℃
• Relative Humidity: 10%–90%  (non-condensing)
• Size: 126*67*10.3mm
• Net Weight: 123g

Scenarios

• A.Outdoor exploration and teamwork
• b. Emergency and disaster communication
• c. Remote operations and scientific research
• d. Privacy communication and offline social interaction

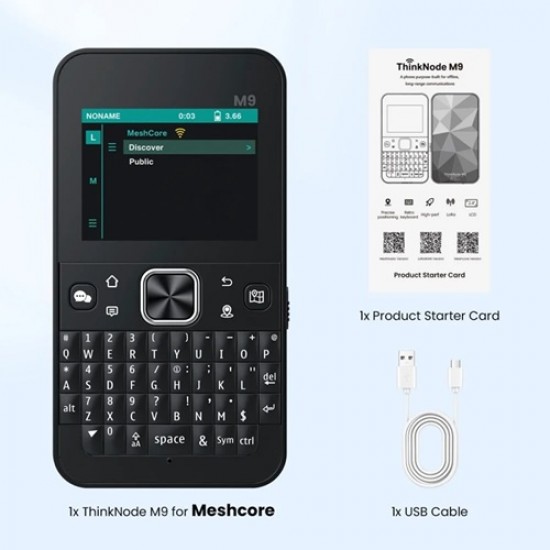

Package Includes

• 1x ThinkNode M9 Full Keyboard Terminal for Meshcore
• 1x USB Cable
• 1x ThinkNode M9 Starter Card
