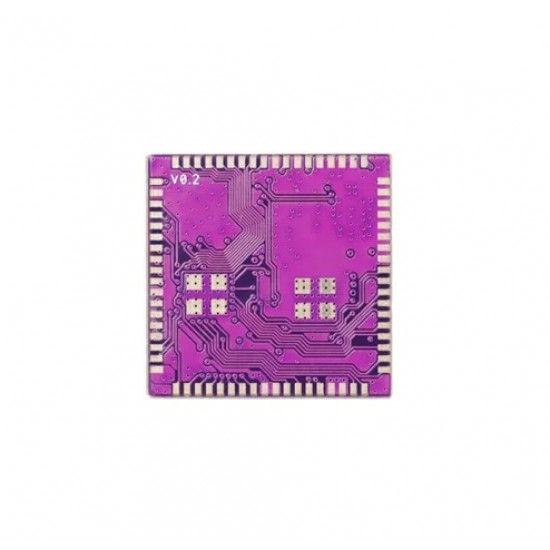

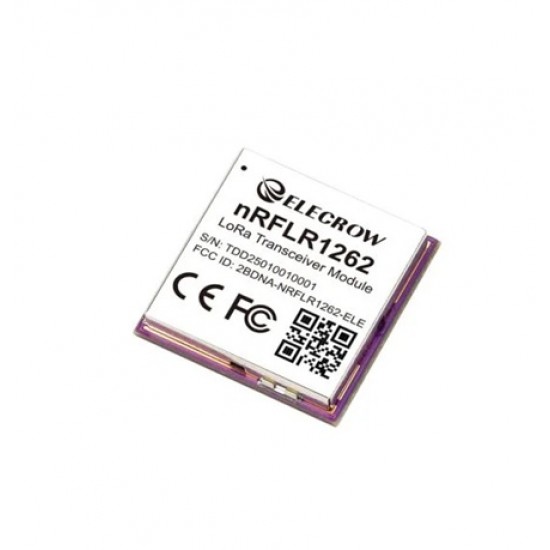

Elecrow nRFLR1262 Wireless Transceiver Module-Integrates Nordic nRF52840 and Semtech SX1262 - Support 850~930MHz

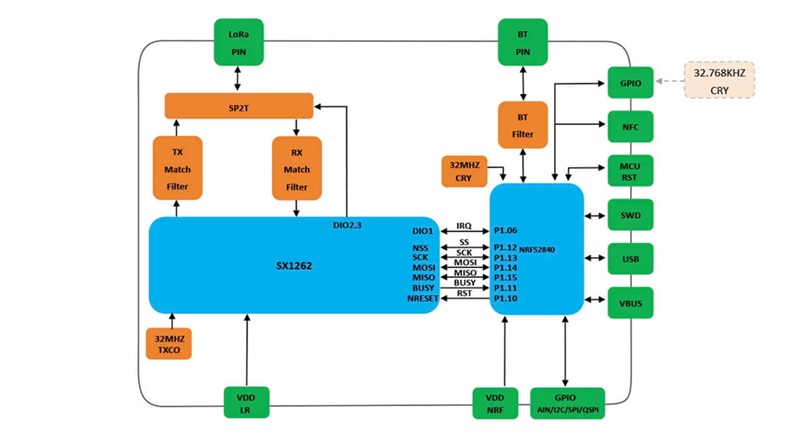

The Elecrow nRFLR1262 module integrates the Nordic nRF52840 microcontroller and the Semtech SX1262 LoRa transceiver chip. It is a high-performance, low-power and long-distance transceiver module. Its maximum transmit power is up to +20dBm, the transmission rate range is wide, from 0.018~62.5Kbps, and the transmission distance can reach up to 10KM.
This module not only supports Bluetooth 5.3 and low-power Bluetooth, but also complies with the A, B and C classes of the LoRaWAN 1.0.3 specification. It also supports LoRa point-to-point (P2P) communication mode, covering the 850~930MHz global LoRa&LoRaWAN ISM frequency, providing strong support for quickly building a custom LoRa network.
The built-in AT command firmware supports customized SDK development, and the rich peripheral interfaces provide great flexibility to meet diverse development needs. Designed to industrial standards, the nRFLR1262 is an ideal choice for developing low-power, long-distance IoT applications, suitable for various scenarios that require efficient communication and energy management.
User Manual / Datasheet / Example Codes Etc.
Features
- High performance: Maximum transmit power can reach +20dBm, support 0.018~62.5kbps transmission rate, -125.5dB sensitivity @SF12/BW=125kHz, 170db link budget；
- Ultra-low power consumption, sleep current is only 5uA;
- Support 850~930MHz global LoRa&LoRaWAN ISM frequency, support LoRa point-to-point (P2P) communication; nRF52840 Bluetooth 5.3 SoC, support low-power Bluetooth, Bluetooth mesh network, NFC, Thread and Zigbee;
- Built-in AT command firmware and support the use of SDK for customized product development, and the AT command set can be easily used through the UART interface;
- Long-distance communication, the communication distance can reach 10km;
- Rich peripherals, the module leads to a variety of GPIO interfaces such as UART, I2C, ADC, etc., providing great flexibility;
- Compact form factor with only 20x 20x 3.5 mm
- FCC, CE RoHS certification
Specifications
- Processor: nRF52840 processor, dual-core 32-bit, 64MHz main frequency
- RF chip: Semtech SX1262 Chip
- Transmit Power TX: +20 dBm@Max
- Receiving Sensitivity: -125.5dBm
- Link Budget: Support 170db link budget
- Demodulator: Support LoRa/(G)FSK/GMSK signal modulation
- LoRa Frequency Range: Support 150MHz-960MHz configuration
- Spreading Factor: SF5~SF12
- Wireless connection: Supports low-power Bluetooth, Bluetooth mesh network, NFC, Thread and Zigbee
- Data Transfer Rate: Supports data transmission rates from 0.018 to 62.5 Kbps
- Other
- Frequency:Covering 850~930MHz (applicable to 868MHz, 915MHz)
- Communication Interface: SPI(0~10Mbps)

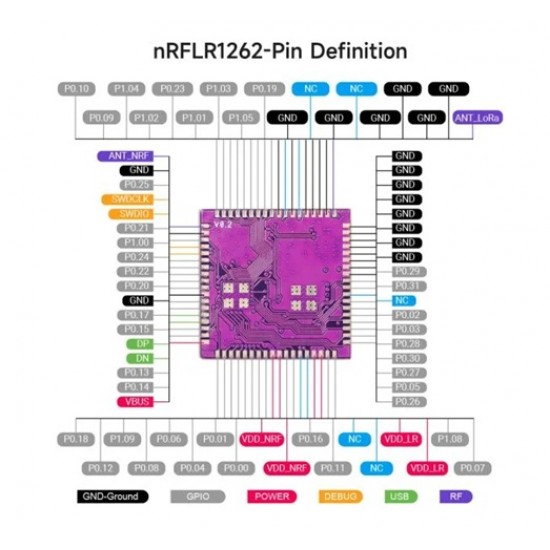

- Lead Pin: Such as SPI signal, VCC, multiple GND, NRST, ANT, TX control, RX control, BUSY status, NFC, SWD debugging pin, etc.
- Antenna: Not onboard, via RF pins
- Reference Power Consumption: 5uA (sleep), 120mA (transmit + MCU), 12mA (receive + MCU)
- Communication Distance: 5~6km, up to 10km
- Crystal Type: Industrial grade 32MHz TCXO
- LoRaWAN Protocol: Class A/B/C (compliant with LoRaWAN 1.0.3 specification)
- Operating Voltage: 1.8~3.7V
- Operating Temperature: -40℃~+85℃, Industrial standard design
- Package Size: 20*20*3.5mm, 80-Pin, SMT patch, LGA package;
- Weight: 3g
Package Includes
- 1x nRFLR1262 Wireless Transceiver Module
