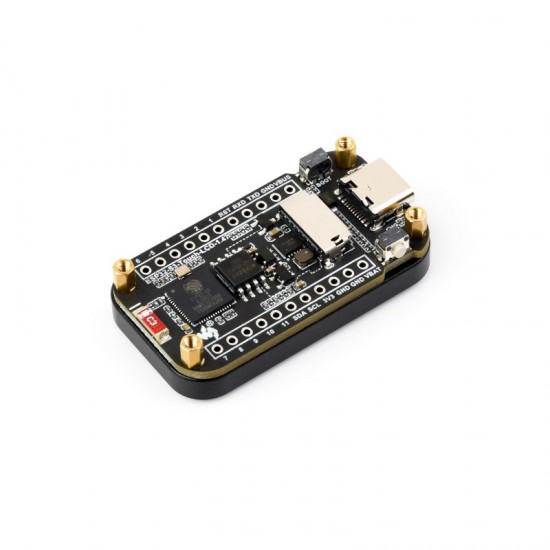

ESP32-S3 1.47inch Touch Display Development Board, 172×320 Resolution, 262K Display Color, Supports 2.4GHz Wi-Fi / BLE 5, 240MHz LX7 Dual-core Processor

ESP32-S3-Touch-LCD-1.47 uses ESP32-S3R8 chip with 2.4GHz WiFi and Bluetooth BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 1.47inch IPS display can smoothly run GUI programs such as LVGL.

Features

• Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency

• Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
• Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
• Onboard 1.47inch capacitive touch LCD display, 172×320 resolution, 262K color
• Adapting multiple IO interfaces, supports full-speed USB standard
• Onboard TF card slot for external TF card storage of pictures or files
• Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios

Resources

User Manual / Datasheet / Example Codes Etc.

Package Contents

1. ESP32-S3-Touch-LCD-1.47 × 1
2. Black header × 2

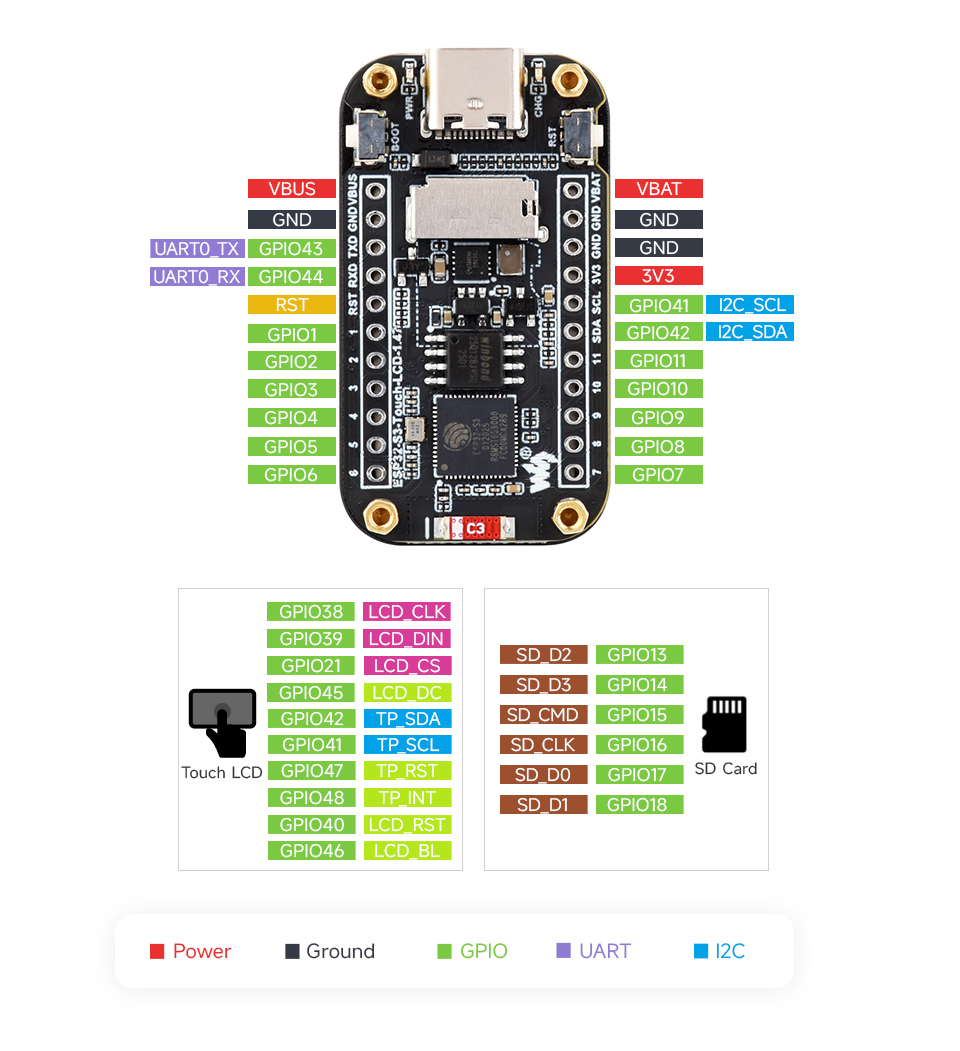

Pinouts

Onboard Peripherals

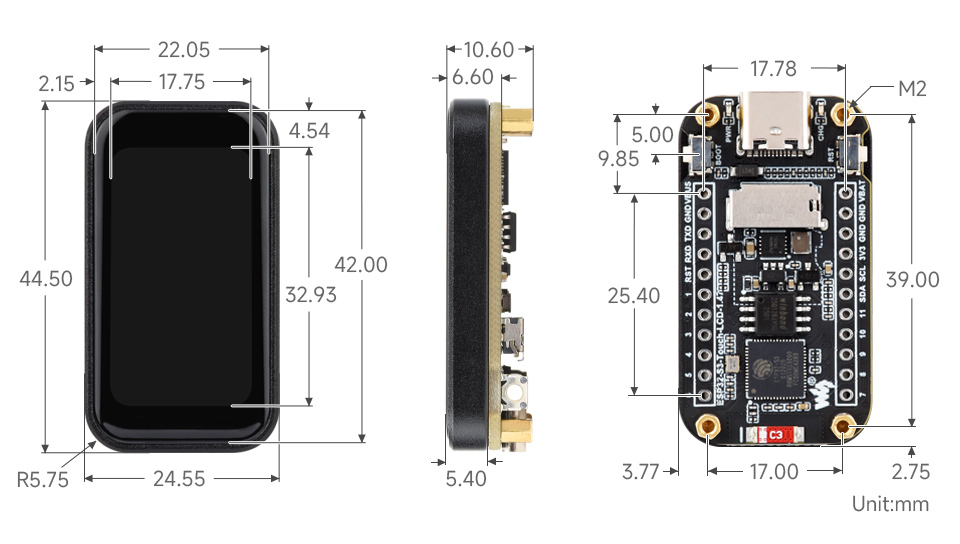

Dimensions
