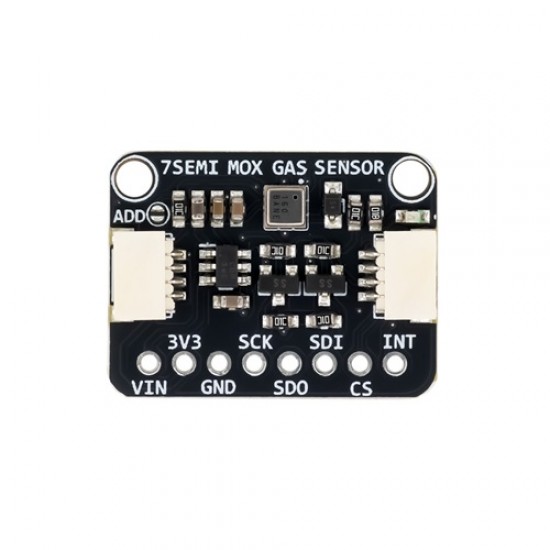

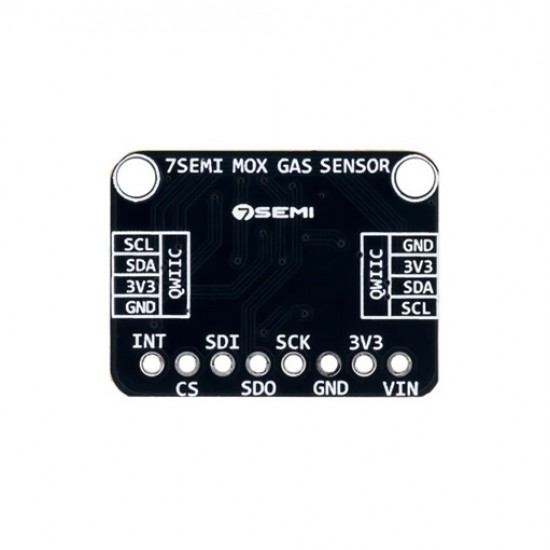

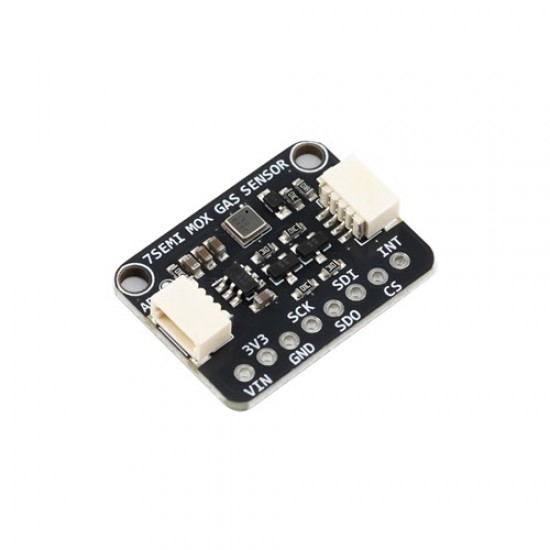

ENS160 Air Quality Sensor Breakout

The 7Semi ENS160 Air Quality Sensor Breakout integrates ScioSense's ENS160 sensor to provide precise indoor air quality monitoring. It detects volatile organic compounds (VOCs), equivalent CO₂ (eCO₂), total volatile organic compounds (TVOC), and air quality index (AQI). Operating at 3.3V with I²C and SPI interfaces, it features a compact design for easy integration, making it ideal for applications like air purifiers and environmental monitoring.

Datasheet

Features

• Comprehensive Detection: Accurately measures a wide range of volatile organic compounds (VOCs) including ethanol, toluene, hydrogen, and oxidizing gases, as well as CO2-equivalents, TVOC, and air quality indices (AQIs).
• Intelligent On-Chip Processing: Built-in algorithms streamline data analysis, offering humidity and temperature compensation, baseline management, and the flexibility to access raw sensor measurements for further customization.
• Wide Operating Range: Functions reliably in temperatures from -40°C to +85°C and humidity levels from 5% to 95%, ensuring consistent performance in diverse environments.
• Global IAQ Compliance: Complies with international indoor air quality standards for eCO2, TVOC, and AQI measurements, providing you with reliable data that meets regulatory requirements.
• Versatile Connectivity: Features I2C interface with Qwiic connectors for easy integration, along with SPI functionality on 0.1"-spaced pins for breadboard use, offering flexibility for various project setups.
• User-Friendly: Jumper-selectable I2C addresses (0x53 or 0x52) allow for easy customization and prevent address conflicts in multi-sensor setups.

Benefits

• Improved Indoor Air Quality: Gain valuable insights into the composition of the air you breathe, enabling you to take proactive measures to improve indoor air quality and promote healthier living and working environments.
• Energy Efficiency: Optimize HVAC systems based on real-time air quality data, reducing energy consumption and costs while maintaining optimal comfort levels.
• Enhanced Comfort: Maintain ideal indoor conditions by monitoring and adjusting humidity, temperature, and VOC levels, creating a more pleasant and productive environment.
• Data-Driven Decisions: Make informed decisions about ventilation, filtration, and other air quality improvement strategies based on accurate and reliable data from the ENS160 sensor.
• Easy Integration: Seamlessly connect the sensor to your existing systems using the convenient Qwiic connectors or breadboard pins, simplifying the integration process and reducing development time.

Applications

• Building Automation: Integrate into building management systems for automated air quality control, ensuring optimal conditions for occupants and reducing energy waste.
• Smart Homes: Create a healthier and more comfortable home environment with personalized air quality monitoring and control, allowing you to tailor settings to your specific needs.
• HVAC Systems: Optimize ventilation and filtration based on accurate air quality measurements, improving energy efficiency and ensuring a consistent supply of fresh air.
• Industrial Monitoring: Ensure worker safety and product quality by monitoring air quality in industrial settings, detecting potential hazards and preventing contamination.

Specifications

• Sensor Used: ENS160
• Interface: I2C, SPI
• Sensor Type: Metal oxide (MOX)
• eCO2 Measurement Range: 400 ppm - 65,000 ppm
• TVOC Measurement Range: 0 ppb - 65,000 ppb
• Operating Voltage: VDD: 1.71V - 1.98V; VDDIO: 1.71V - 3.6V (Typically 3.3V with Qwiic)
• Operating Temperature: -40 ~ 85C
• Operating Humidity: 5% to 95%
• Dimensions: Compact size for easy integration
• Connector: Dual Qwiic
• Target Gas: Air Quality

Package Includes

• 1x ENS160 Air Quality Sensor Breakout
