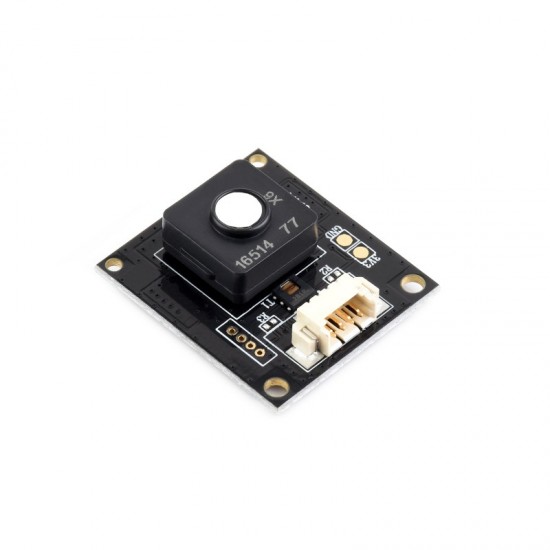

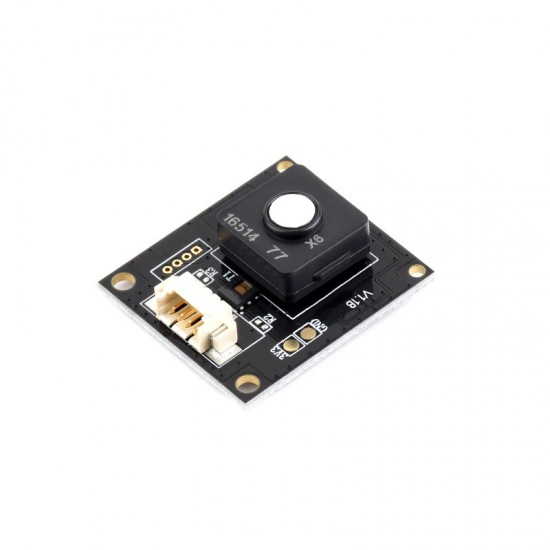

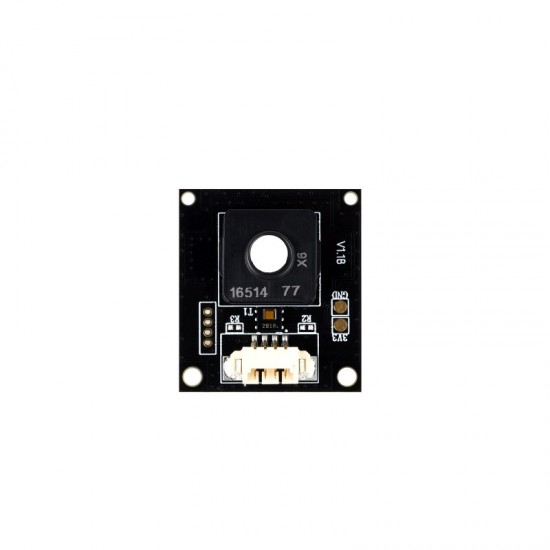

Environment 6-in-1 Gas Sensor Module, Integrates Detection Of HCHO, TVOC, CO, IAQ, Temperature, And Humidity, Supports UART Control Interface

The Environment X6 Sensor is based on solid polymer electrochemical technology from Germany’s EC Sense. It adopts a multi-electrode integrated structure and a solid electrolyte system, outputting current signals through electrochemical reactions at the working electrode surface, enabling highly sensitive detection of target gas concentrations. Compared to traditional gas sensors, the solid-state polymer design offers advantages such as no leakage, no poisoning, virtually no drift, and a long service life.


Features

  • Integrates detection of Indoor Air Quality (IAQ), Carbon Monoxide (CO), Total Volatile Organic Compounds (TVOC), Formaldehyde (HCHO), temperature, and humidity
  • Supports UART communication with 9600bps baud rate, 8 data bits, 1 stop bit, and no parity bit
  • Compact size, low cost, and cost-effective
  • Comes with online development resources and manual (examples for Raspberry Pi / Raspberry Pi Pico / Arduino / ESP32)

Specifications

  • Supply Voltage: 5V
  • Communication Interface: UART
  • Measurement Range
    • HCHO: 0-1 ppm
    • TVOC: 0-5 ppm
    • CO: 0-100 ppm
  • Accuracy
    • HCHO: 0-0.15 ppm (±0.02 ppm); 0.16 ppm+ (< ±2% FS)
    • TVOC: 0-0.2 ppm (±0.05 ppm); 0.2 ppm+ (< ±2% FS)
    • CO: 0-8 ppm (±2.5 ppm); 8 ppm+ (< ±1% FS)
  • Dimensions: 23 × 25.5 × 9.5 mm
  • Operating Current: 6.5 m
  • AOperating Humidity: >15％RH
  • Logic Voltage: 3.3V
  • Baud Rate: 9600 bps
  • Resolution
    • HCHO: 0.001 ppm (Limit of Detection: 0.015 ppm)
    • TVOC: 0.001 ppm (Limit of Detection: 0.050 ppm)
    • CO: 0.001 ppm (Limit of Detection: <8 ppm)
  • Response Time
    • HCHO: T10 <5 s; T90 <90 s
    • TVOC: T10 <3 s; T90 <120 s
    • CO: T10 <3 s; T90 <15 s
  • Mounting Hole Diameter: 2.0 mm
  • Operating Temperature: -40 ℃ ~ +55 ℃


Package Includes

  • Environment X6 Sensor ×1
  • MX1.25 4PIN cable 200mm ×1


UART Control Interface

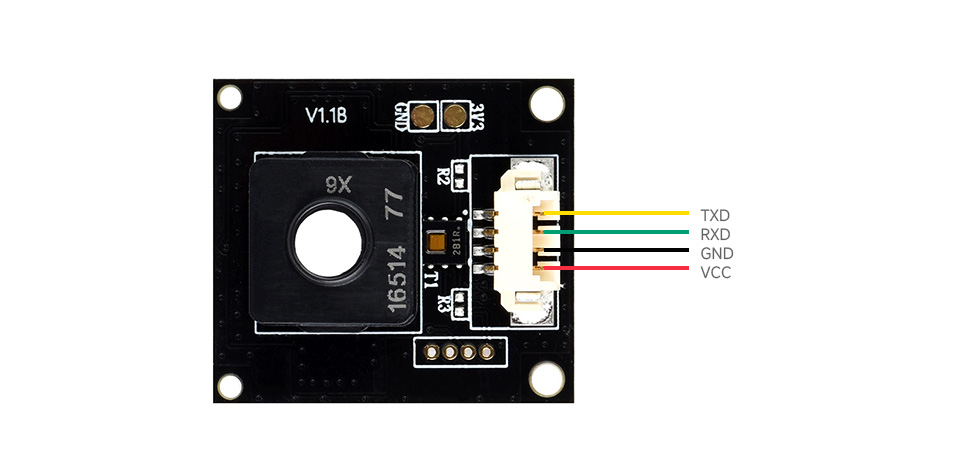

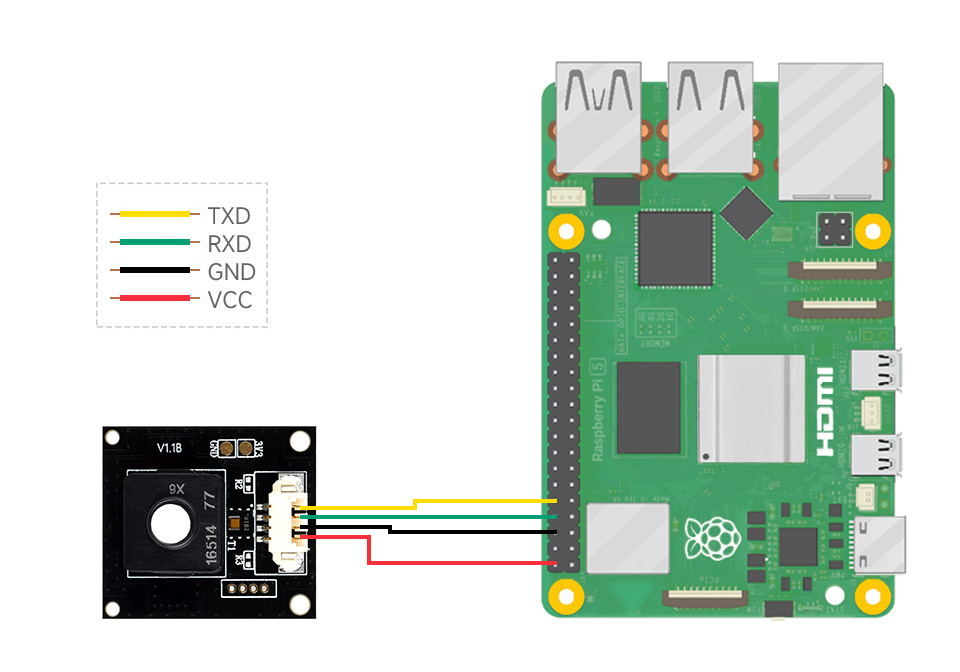

Hardware Connection

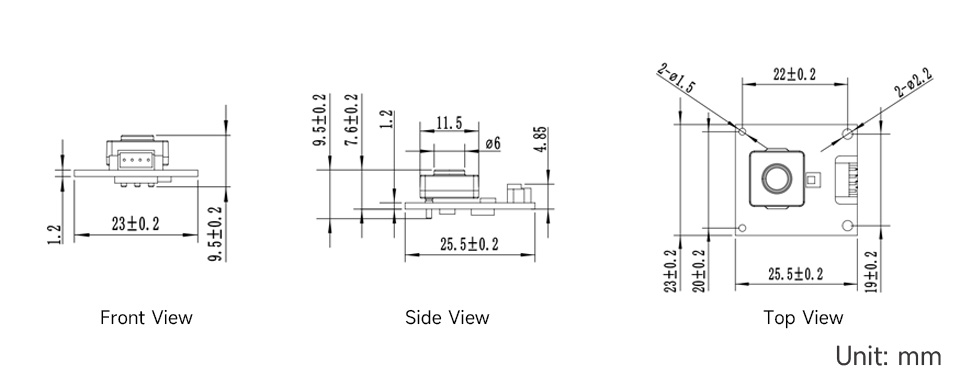

Dimensions

Write a review

Note: HTML is not translated!
Bad Good
Captcha

Warranty Terms :

Branded products (Waveshare/ Raspberry Pi/ Radxa/ DWIN etc) are as per brand warranty terms. Generic products are eligible for replacement within 7 days of delivery based on following conditions.

Products are eligible for a replacement if there is physical damage during transit or a clear manufacturing defect. Any claim for damage/ wrong items/ replacement must be made within 48 hours of successful delivery of the product. Requests for refund of amount or exchange of product(s) will be reviewed on a case by case basis and HUBTRONICS carries final rights to take a final decision on refund, store credit or exchange.

What to take care of ?

Most of our products are technical in nature and require trained personnel to handle them. Any kind of mishandling can result in damage or malfunctioning of the product, it is not possible for us to provide a replacement or refund if the product is damaged due to technical or physical mishandling.

Who pays the return shipping cost?

Free of cost return pickup from delivery address is eligible for products categorized as manufacturing defect/ Damage in transit/ Wrong items delivered. We do not support return pickup for any B2B order or offline orders not placed on website. Buyer need to arrange return shipping for B2B orders.

What voids warranty?

Please note that replacement/ return or refund is not possible if the product is not compatible with your system/application. Please check all the technical details/ dimensions etc. before ordering and contact us for any kind of clarifications.

If product is soldered/ programmed at any point or physically altered in any way, it is not eligible for return/ replacement. If the item requires soldering for testing, please ensure that you use suitable clips or jig to test it without soldering. Any kind of soldering job makes the product ineligible for return or replacement.

Following items are not eligible for return under any circumstances

  • Device Programmers / Dongles
  • Soldering Consumables (Wire, Flux etc)


Tags: Waveshare , Environment Sensor

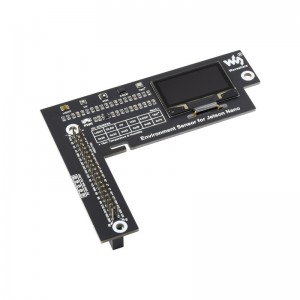

Environment Sensors Module for Jetson Nano, I2C Bus, with 1.3inch OLED Display
