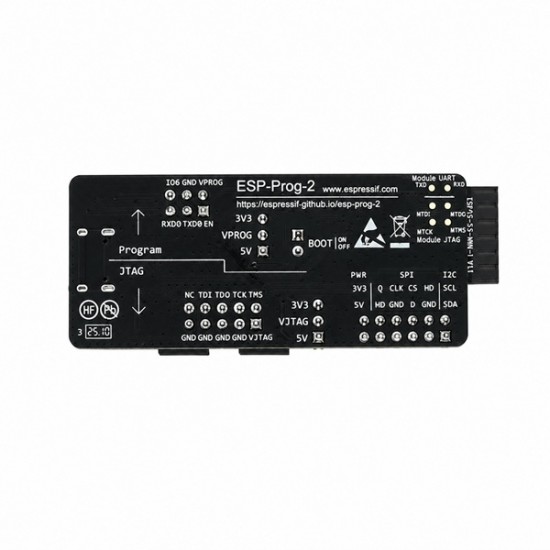

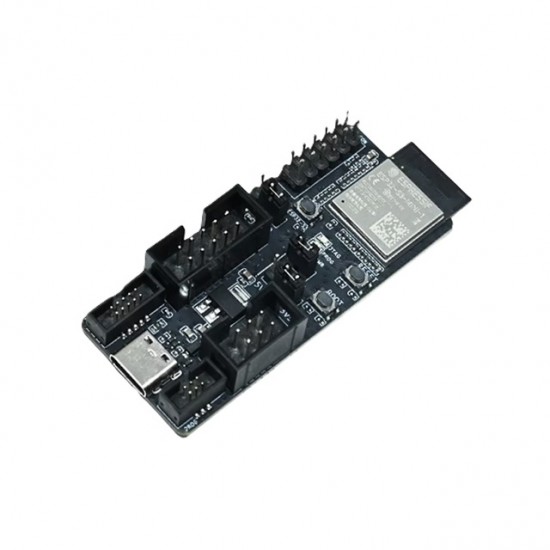

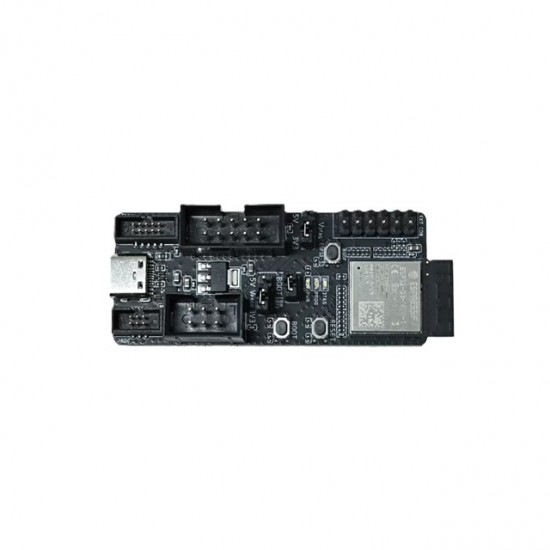

Espressif ESP-Prog-2 Development & Debugging Tool for ESP32/ESP8266

The Espressif Systems ESP-Prog-2 is a professional development and debugging tool designed for ESP32 and ESP8266 series microcontrollers. It supports automatic firmware downloading, serial communication, drag-and-drop programming, and JTAG online debugging, making it ideal for developers working on embedded IoT projects and custom ESP-based hardware.

Built around the ESP32-S3-MINI-1 module, the ESP-Prog-2 provides reliable debugging and programming support for ESP8266, ESP32, ESP32-S2, ESP32-S3, and ESP32-C3 devices. It connects to a computer using a single USB Type-C cable and automatically creates separate ports for firmware flashing and JTAG debugging. The board supports selectable 3.3V or 5V target power output through jumper settings, ensuring compatibility with different development boards and embedded systems.

Key features include dual debugging interfaces, onboard USB connectivity, automatic reset/download circuitry, JTAG debugging support, serial communication, and extended GPIO connectors with both 2.54mm and 1.27mm pin headers. The RX/TX and JTAG signal levels operate at 3.3V logic for safe communication with ESP devices. Its compact and easy-to-use design makes it suitable for firmware development, debugging, prototyping, and production testing applications.

Datasheet

Features

Supports automatic firmware downloading for ESP8266 and ESP32 series
Integrated JTAG online debugging support for ESP32, ESP32-S2, ESP32-S3, and ESP32-C3
Built around the ESP32-S3-MINI-1 module
USB Type-C interface for power, programming, and debugging
Dual-port recognition for separate programming and JTAG functions
Selectable 3.3V or 5V target power output via jumper settings
3.3V logic level RX/TX and JTAG signals for safe communication
Supports serial communication and USB-to-UART bridging
Compatible with ESP-IDF, OpenOCD, PlatformIO, and Arduino IDE
Includes 2.54mm and 1.27mm program/debug interfaces
Onboard reset and boot buttons for easy firmware flashing
LED indicators for power, programming, and debugging status
Compact and easy-to-use design for development and production testing
Supports Windows, Linux, and macOS systems
Extension GPIO connector for additional custom functionality

Specifications

Product Name: ESP-Prog-2 Development & Debugging Tool
Main Chip: ESP32-S3-MINI-1
Supported Chips: ESP8266, ESP32, ESP32-S2, ESP32-S3, ESP32-C3
Debugging Interface: JTAG
Communication Interface: USB-to-UART Serial
USB Connector: USB Type-C
USB Standard: USB 2.0 Full-Speed
Data Transfer Rate: Up to 12 Mbps
Operating Voltage Output: 3.3V / 5V Selectable
Signal Logic Level: 3.3V
Program Connectors: 2.54mm & 1.27mm headers
JTAG Connectors: 2.54mm & 1.27mm headers
Supported OS: Windows, Linux, macOS
Functions: Programming, Debugging, Serial Communication
LED Indicators: Power, UART Activity, JTAG Activity
Applications: ESP firmware development, debugging, prototyping, testing

Package Includes

1x ESP-Prog-2 Development & Debugging Tool for ESP32/ESP8266
