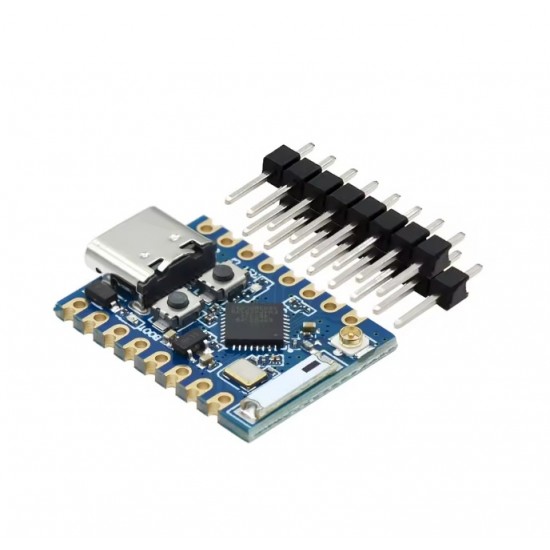

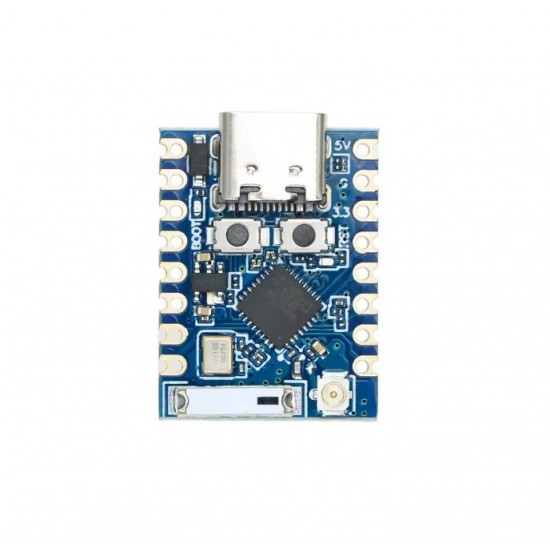

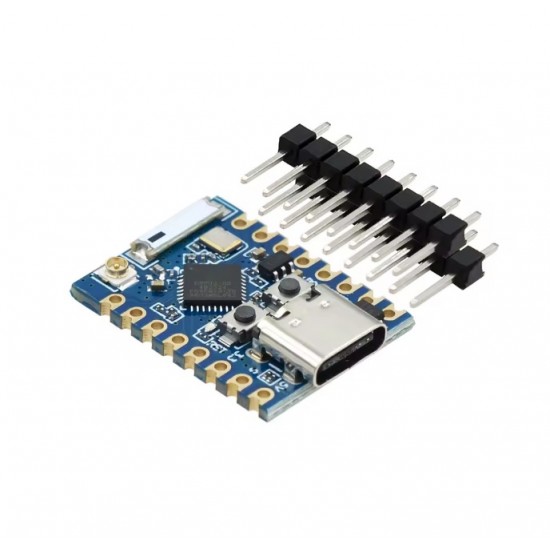

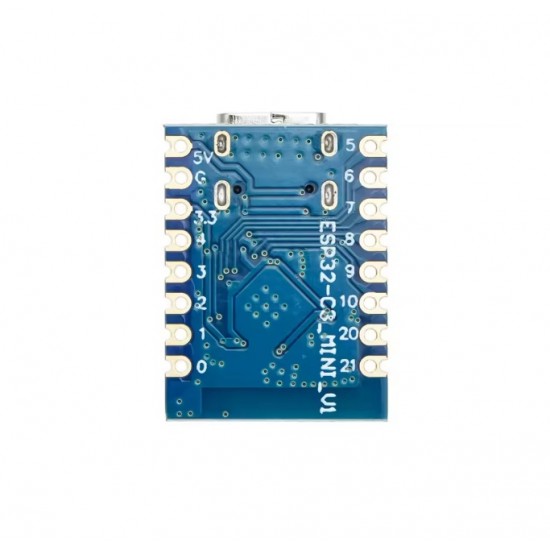

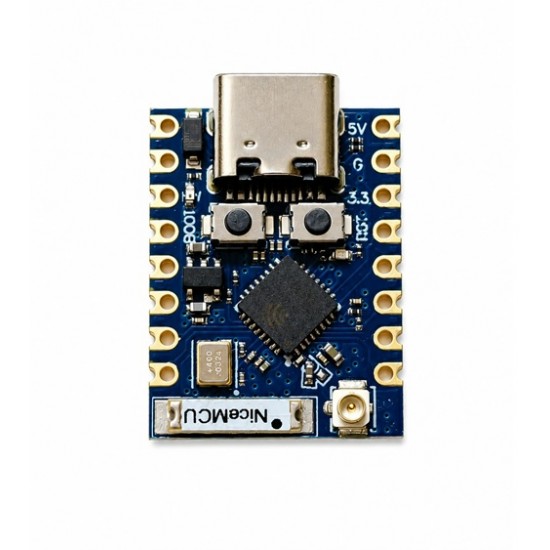

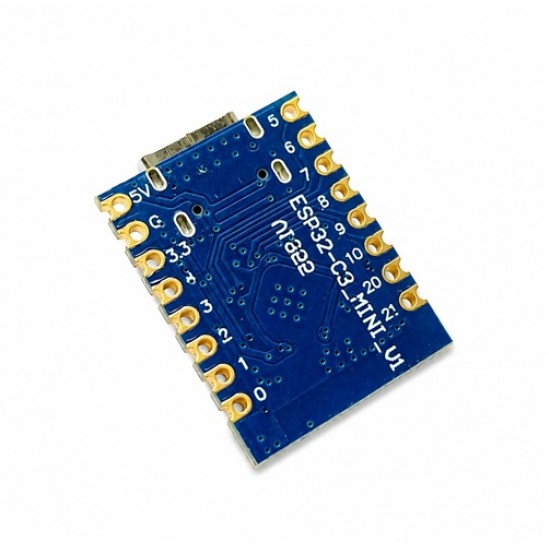

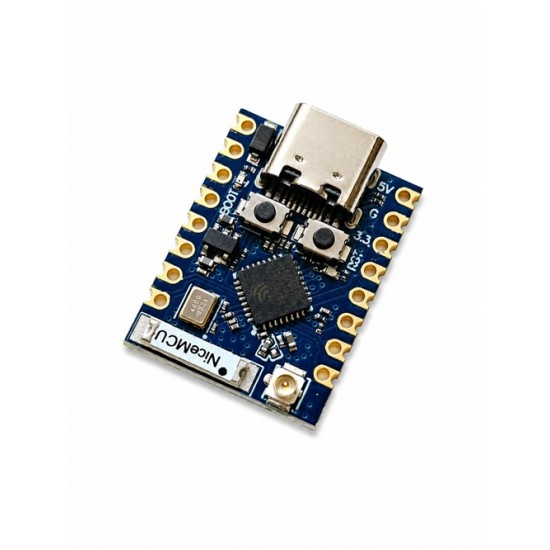

ESP32-C3 Pro Mini Development Board - 2.4GHz Wi-Fi & Bluetooth 5 - Unsoldered Headers
The ESP32-C3 PRO MINI is a compact IoT development board based on the Espressif ESP32-C3 Wi-Fi and Bluetooth dual-mode chip. It features a 32-bit RISC-V CPU with an integrated Floating Point Unit (FPU) capable of handling 32-bit single-precision operations, delivering strong computing performance for modern embedded and IoT applications.
The board offers excellent RF performance and supports IEEE 802.11 b/g/n Wi-Fi and Bluetooth 5 (LE) protocols. It comes equipped with both a ceramic onboard antenna and an IPEX antenna connector, allowing flexible antenna selection to enhance wireless signal strength and reliability.
Designed with a compact, single-sided surface-mount layout, the ESP32-C3 PRO MINI is ideal for space-constrained projects. It provides rich I/O capabilities, including 11 digital GPIO pins that support PWM output and 4 analog input pins with ADC functionality. Multiple communication interfaces are supported, including UART, I²C, and SPI, enabling easy integration with sensors, displays, and peripheral devices.
The board also includes a reset button and a boot mode button, simplifying programming and firmware updates. With its powerful wireless capabilities, flexible I/O, and small form factor, the ESP32-C3 PRO MINI is well suited for IoT devices, smart sensors, wireless controllers, and embedded development projects.
Features
- Based on Espressif ESP32-C3 Wi-Fi & Bluetooth dual-mode SoC
- 32-bit RISC-V single-core CPU with integrated Floating Point Unit (FPU)
- Supports IEEE 802.11 b/g/n Wi-Fi and Bluetooth 5 (BLE)
- Excellent RF performance for stable wireless communication
- Onboard ceramic antenna plus IPEX antenna connector for external antenna support
- Compact single-sided surface-mount design for space-constrained applications

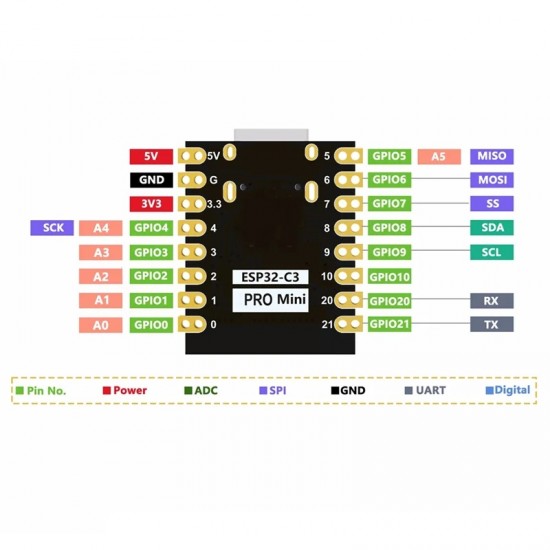

- 11 digital GPIO pins, all supporting PWM output
- 4 analog input pins with ADC functionality
- Supports UART, I²C, and SPI communication interfaces
- Onboard Reset and Boot mode buttons for easy programming
- Ideal for IoT, smart devices, wireless sensors, and embedded development
Specifications
- MCU: Espressif ESP32-C3
- CPU Architecture: 32-bit RISC-V
- Clock Frequency: Up to 160 MHz
- Wireless Connectivity:
- Wi-Fi 802.11 b/g/n (2.4 GHz)
- Bluetooth 5 (BLE)
- Antenna: Ceramic antenna + IPEX external antenna connector
- Digital I/O: 11 GPIO (PWM supported)
- Analog Inputs: 4 × ADC pins
- Communication Interfaces: UART, I²C, SPI
- Operating Voltage: 3.3V
- Power Supply: USB / external 5V input (onboard regulation)
- Buttons: Reset button, Boot button
- Mounting: SMD / Through-hole compatible (module dependent)
- Operating Temperature: –40°C to +85°C (typical)
- Applications: IoT nodes, smart home devices, wireless controllers, sensor networks

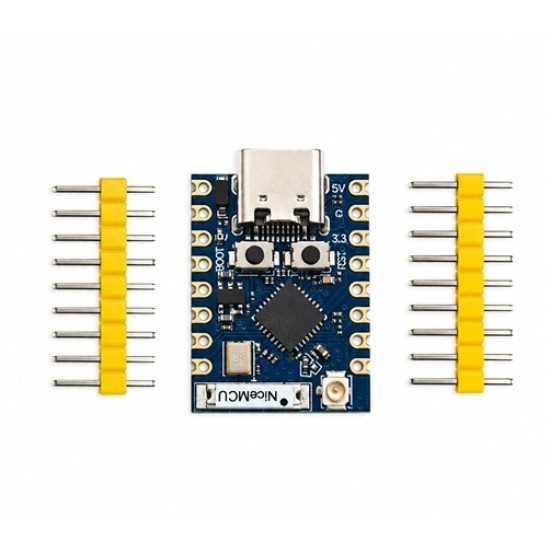

Package Includes
- 1x ESP32-C3 Pro Mini Development Board - 2.4GHz Wi-Fi & Bluetooth 5 - Unsoldered Headers
- 2x Pin Headers
