Waveshare ESP32-C5 2.8inch IPS Capacitive Touch Display Development Board, 240 × 320 Resolution, 5-Point Touch, 262K Color, Integrated 2.4GHz/5GHz Dual-band Wi-Fi And Bluetooth 5 (LE) [Battery Not Included]

This product is designed by Waveshare with onboard 2.8inch LCD display, 6-axis sensor, temperature and humidity sensor, and TF card slot, providing the hardware foundation for display, sensing, voice, and multimedia storage. With these hardware resources, it supports fun interactive mini-games and voice wake-up. It allows access to online AI large model platforms, enabling intelligent voice interaction and continuous upgrades. It comes pre-installed functions such as AI conversation, audio playback, a gravity ball game, 2048 game, and weather. It can be used directly as an AI chatting toy, while also supporting customization and secondary development.


User Manual / Datasheet / Example Codes Etc.


Features

  • Equipped with the ESP32-C5-WROOM-1 series module, featuring a RISC-V 32-bit processor, up to 240MHz main frequency
  • Integrated with 384KB Static RAM, 320KB ROM, 8MB PSRAM, and 32MB Flash, meeting the requirements for program execution, graphical interface, and data storage
  • Integrated 2.4GHz and 5GHz dual-band Wi-Fi, Bluetooth 5 (LE), and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communications, with outstanding RF performance
  • Onboard Batt recharge management module, with reserved 3.7V MX1.25 Lithium Batt header for connecting external Batt
  • Type-C port, improving device compatibility, easier to use
  • Onboard 2.8inch LCD display, 240 × 320 resolution, 262K color
  • Supports 5-point capacitive touch controlled via I2C interface, with interrupt support
  • Adapting UART, I2C and some IO interfaces, integrates full-speed USB port
  • Onboard QMI8658 6-axis sensor, RTC sensor, SHTC3 temperature and humidity sensor, TF card slot, etc.
  • Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
  • Onboard ES8311 audio codec chip, NS4150B power amplifier chip, microphone, and speaker
  • Supports ESP-IDF, Arduino, and other development environments, with rich resources for quick and easy development


Specifications

  • Display panel: IPS
  • Display Resolution: 240 × 320 pixels
  • communication interface: 4-wire SPI
  • Touch Type: Capacitive touch
  • Active Display Area: 57.60 × 43.20 (mm)
  • Display Size: 2.8inch
  • Display Color: 262K
  • Driver IC: ST7789
  • Touch IC: CST3530


Package Includes

  • ESP32-C5-Touch-LCD-2.8 host x1
  • SH1.0 12PIN cable ~100mm x1
  • SH1.0 4PIN cable ~100mm x2
  • 8Ω 2W speaker x1

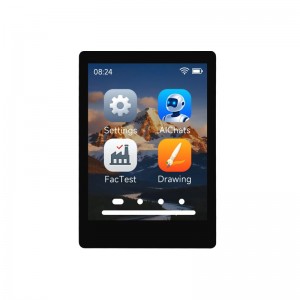

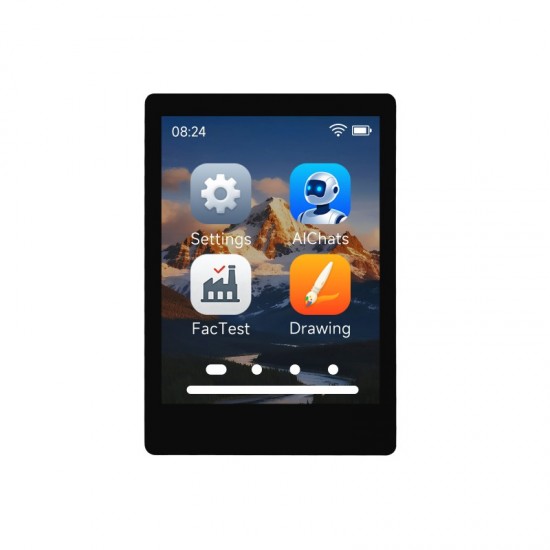

IPS Display Panel

262K color, 240 × 320 resolution, wide viewing angle

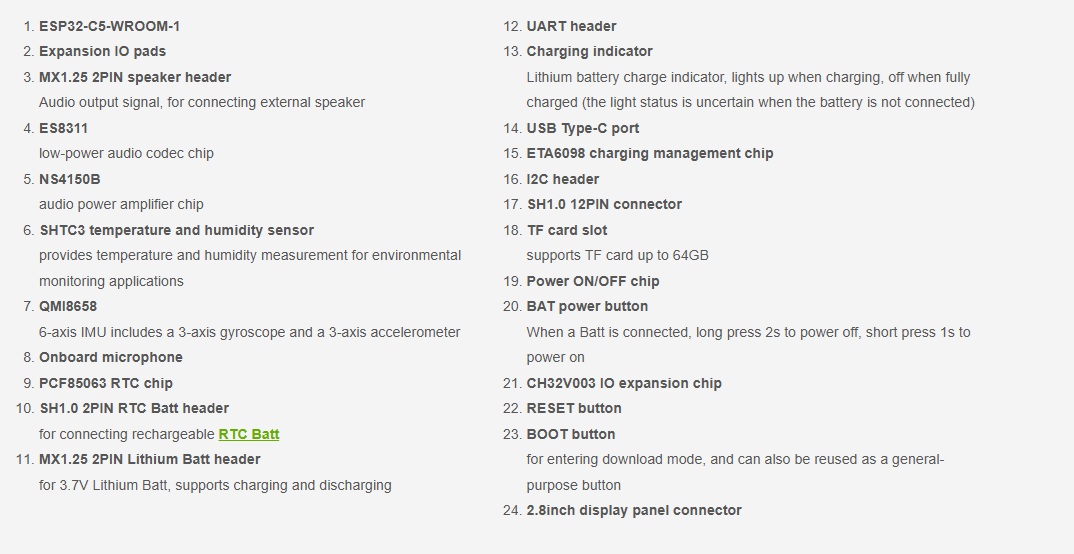

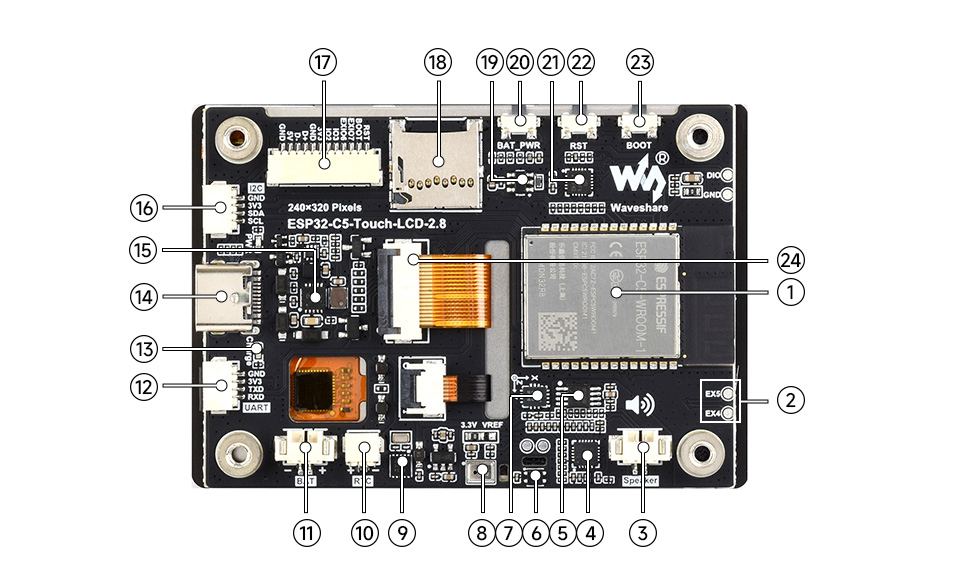

What's On Board

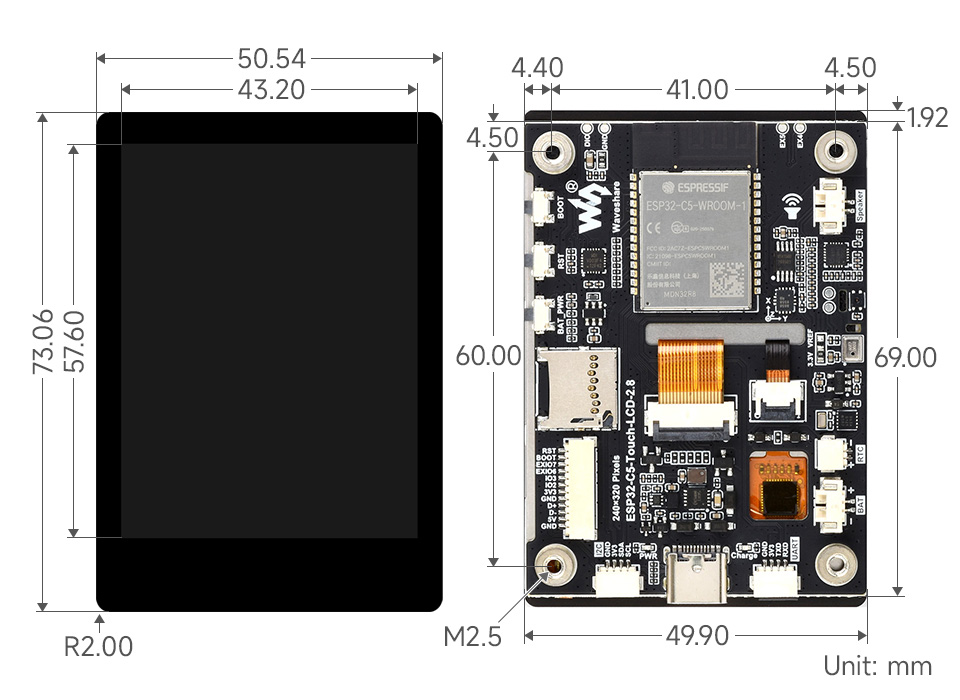

Dimensions

Write a review

Note: HTML is not translated!
Bad Good
Captcha

Warranty Terms :

Branded products (Waveshare/ Raspberry Pi/ Radxa/ DWIN etc) are as per brand warranty terms. Generic products are eligible for replacement within 7 days of delivery based on following conditions.

Products are eligible for a replacement if there is physical damage during transit or a clear manufacturing defect. Any claim for damage/ wrong items/ replacement must be made within 48 hours of successful delivery of the product. Requests for refund of amount or exchange of product(s) will be reviewed on a case by case basis and HUBTRONICS carries final rights to take a final decision on refund, store credit or exchange.

What to take care of ?

Most of our products are technical in nature and require trained personnel to handle them. Any kind of mishandling can result in damage or malfunctioning of the product, it is not possible for us to provide a replacement or refund if the product is damaged due to technical or physical mishandling.

Who pays the return shipping cost?

Free of cost return pickup from delivery address is eligible for products categorized as manufacturing defect/ Damage in transit/ Wrong items delivered. We do not support return pickup for any B2B order or offline orders not placed on website. Buyer need to arrange return shipping for B2B orders.

What voids warranty?

Please note that replacement/ return or refund is not possible if the product is not compatible with your system/application. Please check all the technical details/ dimensions etc. before ordering and contact us for any kind of clarifications.

If product is soldered/ programmed at any point or physically altered in any way, it is not eligible for return/ replacement. If the item requires soldering for testing, please ensure that you use suitable clips or jig to test it without soldering. Any kind of soldering job makes the product ineligible for return or replacement.

Following items are not eligible for return under any circumstances

  • Device Programmers / Dongles
  • Soldering Consumables (Wire, Flux etc)


Tags: Waveshare , ESP32-C5 , IPS , LCD , Display , Development Board

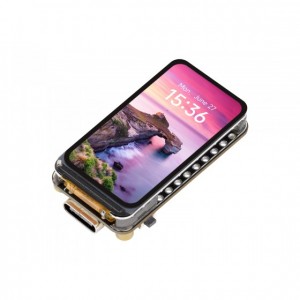

Waveshare ESP32-C5 1.47inch LCD Display Development Board, RISC-V 32-bit Processor, 172×320 Resolution, 262K Color, Supports 2.4GHz / 5GHz Wi-Fi 6 And Bluetooth 5 (LE) - Solder Version
Waveshare ESP32-C5 1.47inch LCD Display Development Board, RISC-V 32-bit Processor, 172×320 Resolution, 262K Color, Supports 2.4GHz / 5GHz Wi-Fi 6 And Bluetooth 5 (LE) - Solder Version
Waveshare ESP32-C5 1.47inch LCD Display Development Board, RISC-V 32-bit Processor, 172×320 Resolution, 262K Color, Supports 2.4GHz / 5GHz Wi-Fi 6 And..
₹​1,249.00
Ex Gst ₹​1,058.47
Add to Cart
Add to Wish List Compare this Product

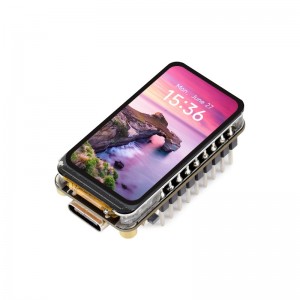

Waveshare ESP32-C5 1.47inch LCD Display Development Board, RISC-V 32-bit Processor, 172×320 Resolution, 262K Color, Supports 2.4GHz / 5GHz Wi-Fi 6 And Bluetooth 5 (LE) - Unsolder Version
