Name: Waveshare ESP32-C5 Dual-Band Wi-Fi 6 Development Board, 240MHz RISC-V Processor, 32MB Flash & 8MB PSRAM, ESP32-C5-WROOM-1 Series Module, Multi-Protocol RISC-V MCU, Built in Antenna (Solder Version)
Brand: WaveShare Electronics
SKU: 34241
Price: 1235.00 INR
Availability: OutOfStock

Waveshare ESP32-C5 Dual-Band Wi-Fi 6 Development Board, 240MHz RISC-V Processor, 32MB Flash & 8MB PSRAM, ESP32-C5-WROOM-1 Series Module, Multi-Protocol RISC-V MCU, Built in Antenna (Solder Version)

WaveShare Electronics

Waveshare ESP32-C5 Dual-Band Wi-Fi 6 Development Board, 240MHz RISC-V Processor, 32MB Flash & 8MB PSRAM, ESP32-C5-WROOM-1 Series Module, Multi-Protocol RISC-V MCU, Built in Antenna (Solder Version)

Based on 0 reviews. - Write a review

₹1,235.00

₹1,046.61 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 10
B2B GST Credit Available

Price in reward points: 1046

Stock: 0 in Stock
SKU: 34241
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

ESP32-C5 Dual-Band Wi-Fi 6 Development Board, 240MHz RISC-V Processor, 32MB Flash & 8MB PSRAM, ESP32-C5-WROOM-1 Series Module, Multi-Protocol RISC-V MCU, Built in Antenna (Solder Version)

The ESP32-C5-WIFI6-KIT is a development board designed by Waveshare based on the ESP32-C5-WROOM-1 module for dual-band Wi-Fi and multi-protocol IoT gateway applications. The ESP32-C5 is a single-core RISC-V chip, supports dual-band Wi-Fi 6 (2.4GHz and 5GHz), and integrates BLE 5, Zigbee, and Thread protocols for flexible use as a smart home hub or cross-protocol communication gateway.

Equipped with 240MHz RISC-V processor, 384KB Static RAM, 8MB PSRAM, and provides options for 8MB or 32MB Flash, enables stable handling the concurrent tasks of multiple protocol stacks and running medium-load applications. Developers can leverage mature development frameworks such as ESP-IDF and Arduino for rapid prototyping and product implementation, making it suitable for IoT scenarios such as smart gateways and multi-protocol device integration.

User Manual / Datasheet / Example Codes Etc.

Features

Adopts ESP32-C5-WROOM-1 series module with RISC-V 32-bit processor, up to 240MHz main frequency
Integrated with 384KB Static RAM, 320KB ROM, and 8MB PSRAM, with options for 16MB or 32MB Flash
Integrated 2.4GHz and 5GHz dual-band Wi-Fi, Bluetooth 5 (LE), and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communications, with outstanding RF performance
Onboard batt. recharge management module, with reserved 3.7V MX1.25 Lithium batt. header for external batt. power supply
USB Type-C port, easier to use
Castellated module allows soldering directly to carrier boards, with rich peripheral interfaces
Supports multiple low-power operating modes, enabling flexible adjustment of the balance between communication range, data rate, and power consumption to meet the power requirements of various application scenarios

Package Includes

ESP32-C5-WIFI6-KIT-N16R8 with pre-soldered headers x1

Function Block Diagram

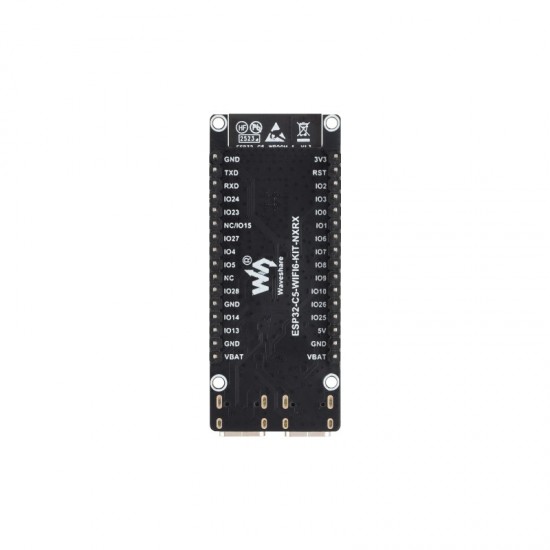

Pinout Definition

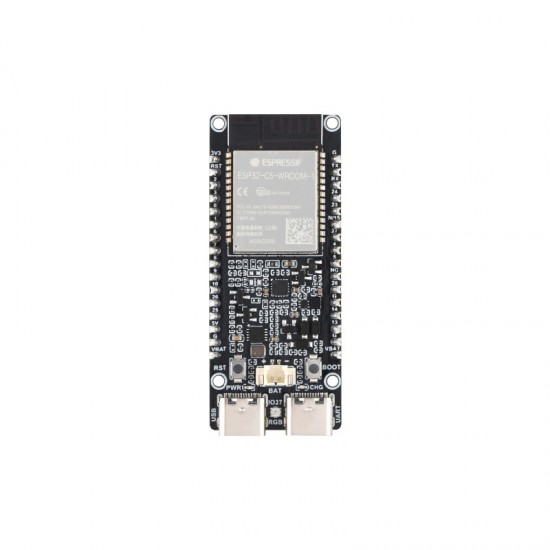

Onboard Resources

Dimensions
