Name: Waveshare ESP32-C6 1.28inch LCD Display Development Board, 240 × 240 resolution, 65K color, Supports 2.4GHz Wi-Fi 6 and Bluetooth 5 [Without Case]
Brand: WaveShare Electronics
SKU: 35450
Price: 1459.00 INR
Availability: OutOfStock

Waveshare ESP32-C6 1.28inch LCD Display Development Board, 240 × 240 resolution, 65K color, Supports 2.4GHz Wi-Fi 6 and Bluetooth 5 [Without Case]

New

WaveShare Electronics

Waveshare ESP32-C6 1.28inch LCD Display Development Board, 240 × 240 resolution, 65K color, Supports 2.4GHz Wi-Fi 6 and Bluetooth 5 [Without Case]

Based on 0 reviews. - Write a review

₹1,459.00

₹1,236.44 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 12
B2B GST Credit Available

Price in reward points: 1236

Stock: 0 in Stock
SKU: 35450
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

Waveshare ESP32-C6 1.28inch LCD Display Development Board, 240 × 240 resolution, 65K color, Supports 2.4GHz Wi-Fi 6 and Bluetooth 5 [Without Case]

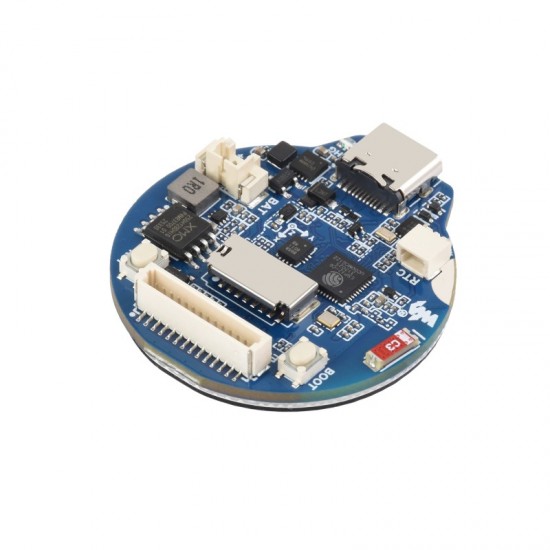

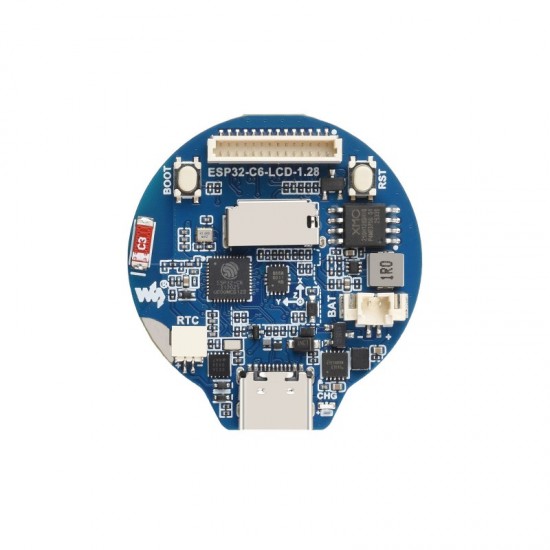

The ESP32-C6-LCD-1.28 is a low-cost, high-performance microcontroller development board designed by Waveshare. With a compact form factor, it integrates 1.28inch LCD display, Lithium Batt charging management chip, 6-axis IMU (3-axis accelerometer and 3-axis gyroscope), and other peripherals, making it easy to develop and integrate into end products.

User Manual / Datasheet / Example Codes Etc.

Features

Equipped with high-performance ESP32-C6 32-bit RISC-V processor, up to 160MHz main frequency
Supports Wi-Fi 6, Bluetooth 5, and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communications, with outstanding RF performance
Built-in 512KB HP Static RAM, 16KB LP Static RAM, 320KB ROM, and external 16MB Flash
Type-C port, easier to use

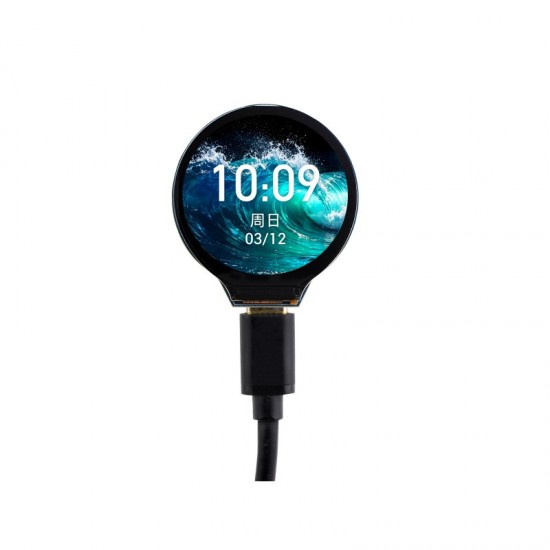

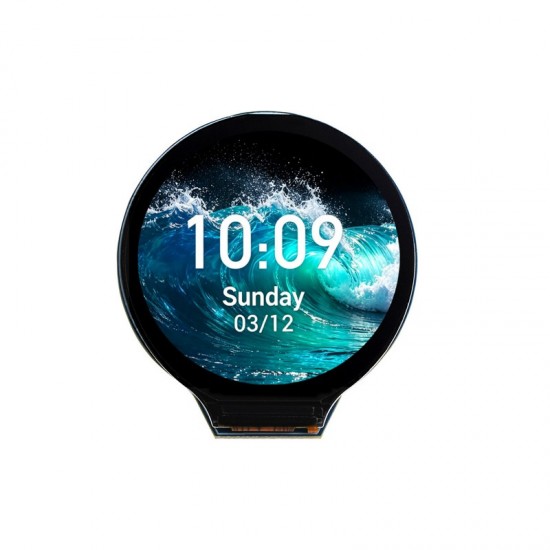

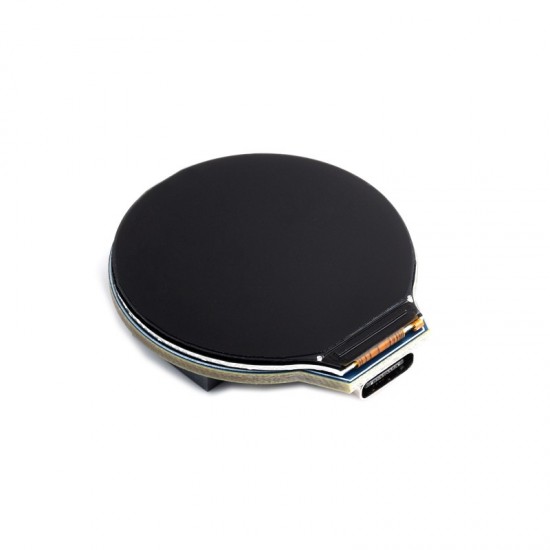

Onboard 1.28inch LCD display for clear color picture display, 240 × 240 resolution, 65K color

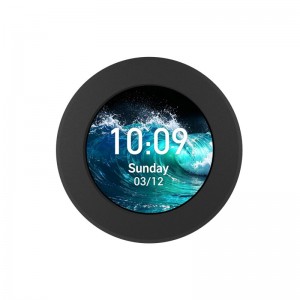

Optional CNC metal case, featuring a CNC metal top case with an acrylic dull-polish bottom plate on the back
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope)
Onboard PCF85063 RTC chip for convenient RTC functionality
Onboard 3.7V MX1.25 Lithium Batt recharge/discharge header
Onboard SH1.0 14PIN expansion connector, adapting 6 × GPIO, 1 × UART, and 1 × I2C
Onboard TF card slot, supporting storage expansion and high-speed data transfer for greater flexibility

Specifications

Display panel: IPS
Display Size: 1.28inch
Display Resolution: 240 × 240 resolution
Display Color: 65K
Brightness: 400cd/㎡
Contrast Ratio: 1100 : 1
communication interface: SPI
Driver IC: GC9A01A

Package Includes

ESP32-C6-LCD-1.28 host x1
SH1.0 14PIN cable 100mm x1

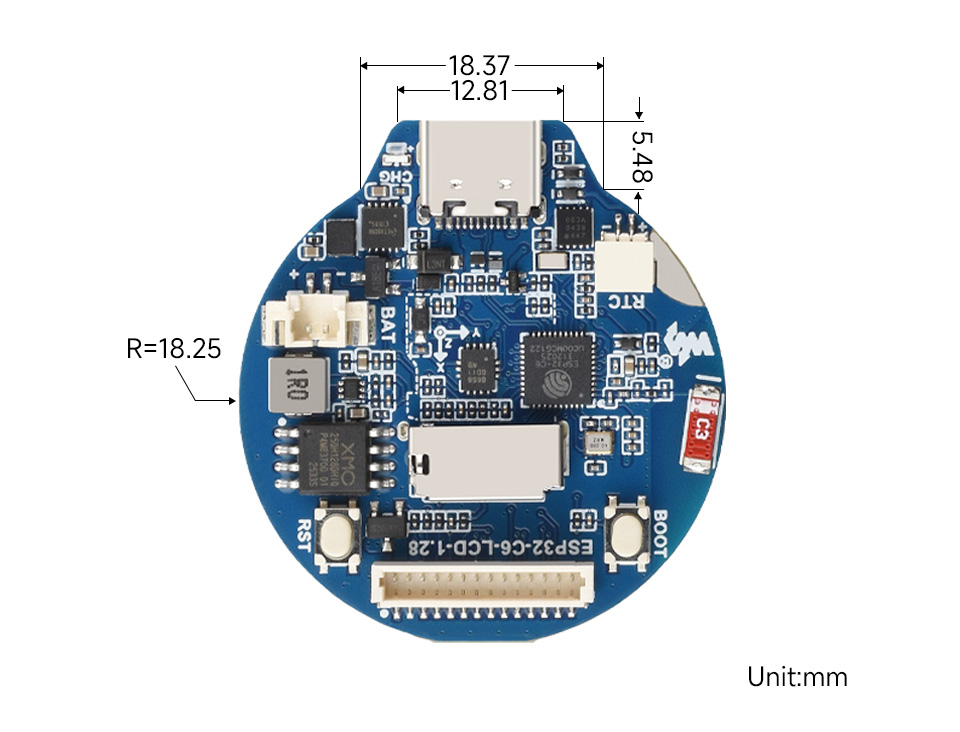

Dimensions
