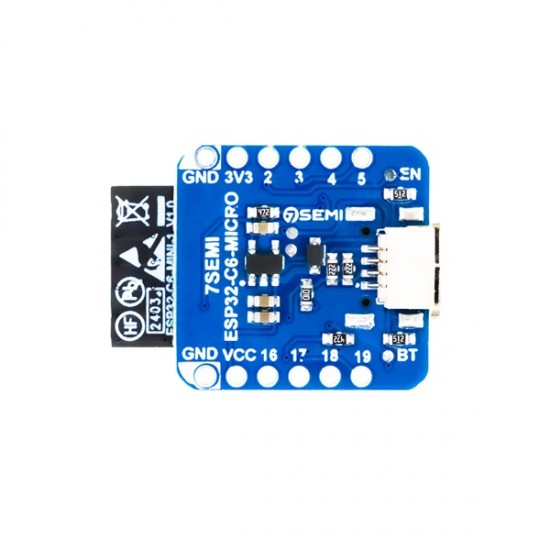

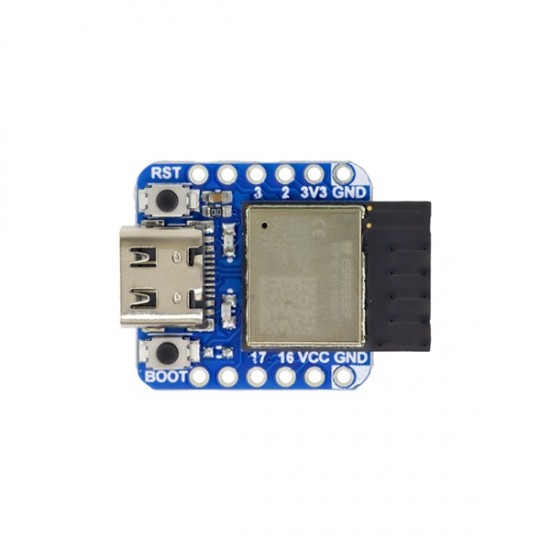

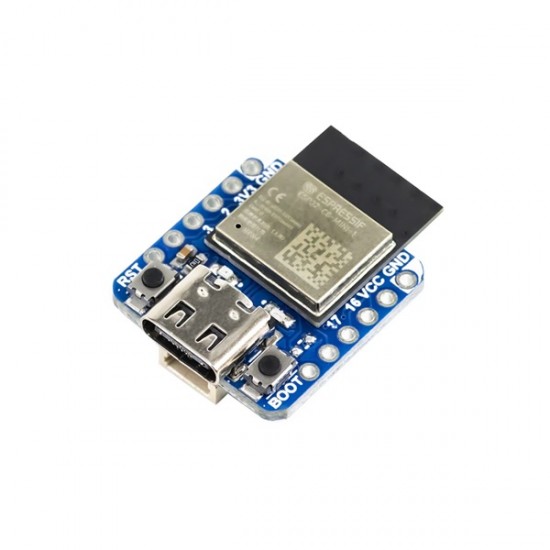

ESP32-C6 Mini Wifi Development Board Qwiic
The ESP32-C6 Mini WiFi Development Board Qwiic is a compact and powerful next-generation IoT development board built around the advanced ESP32-C6-MINI-1 module. Designed for modern wireless applications, it supports Wi-Fi 6, Bluetooth 5 LE, Zigbee, and Thread (802.15.4), making it ideal for smart home automation, Matter-compatible devices, wireless sensor networks, and embedded IoT projects.
Powered by a 32-bit RISC-V single-core processor, this mini development board delivers efficient performance with low power consumption, making it suitable for battery-powered applications. The integrated Qwiic connector enables quick plug-and-play interfacing with a wide range of I2C sensors and modules without soldering.
It features a USB Type-C interface for easy programming and power delivery, onboard LiPo battery charging support, multiple GPIOs, ADC channels, UART, PWM, SPI, and I2C interfaces for versatile hardware expansion. Its compact form factor and broad protocol compatibility make it an excellent choice for rapid prototyping, smart IoT devices, and wireless edge computing applications.
Features
- ESP32-C6-MINI-1 chipset
- 32-bit RISC-V single-core processor
- Wi-Fi 6 (2.4GHz) support
- Bluetooth 5 LE
- Zigbee & Thread (802.15.4)
- Qwiic connector for plug-and-play I2C modules
- USB Type-C for programming and power
- 4MB onboard Flash memory
- Low power consumption with deep sleep support
- GPIO, UART, SPI, PWM, ADC, I2C interfaces
- LiPo battery charging support
- Compact mini development board design
Specifications
- Main Chipset: ESP32-C6-MINI-1
- Processor: 32-bit RISC-V Single-Core
- Wireless Connectivity: Wi-Fi 6 (2.4GHz), Bluetooth 5 LE, Zigbee, Thread (802.15.4)
- Flash Memory: 4MB
- Interface: USB Type-C
- Communication Protocols: UART, SPI, I2C, PWM, ADC
- Connector: Qwiic I2C Connector
- Power Supply: USB / LiPo Battery
- Battery Support: Onboard LiPo Charging Circuit
- GPIO Support: Multiple Programmable GPIO Pins
- Low Power Modes: Deep Sleep Supported
- Form Factor: Compact Mini Development Board
Applications
- Smart home automation
- Matter-compatible IoT devices
- Wireless sensor networks
- Battery-powered IoT nodes
- Industrial monitoring
- Home automation controllers
- Rapid prototyping and embedded development
Package Includes
- 1x ESP32-C6 Mini Wifi Development Board Qwiic

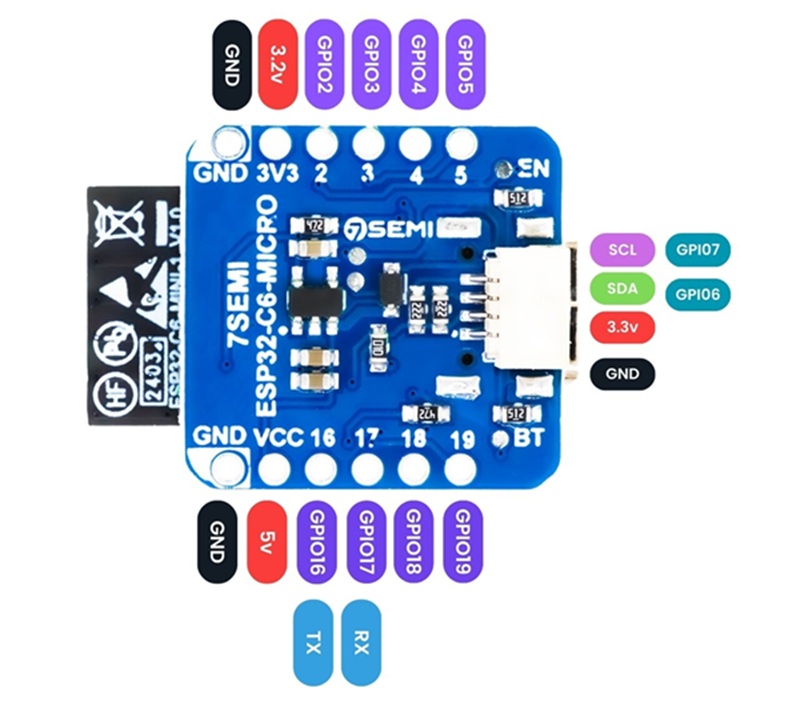

Pinouts
