Waveshare ESP32-S3 Microcontroller, 2.4GHz Wi-Fi Development Board, 240MHz Dual Core Processor, 16MB Flash and 8MB PSRAM, ESP32-S3-DEV-KIT-N16R8-U, With External Antenna (Unsolder Version)

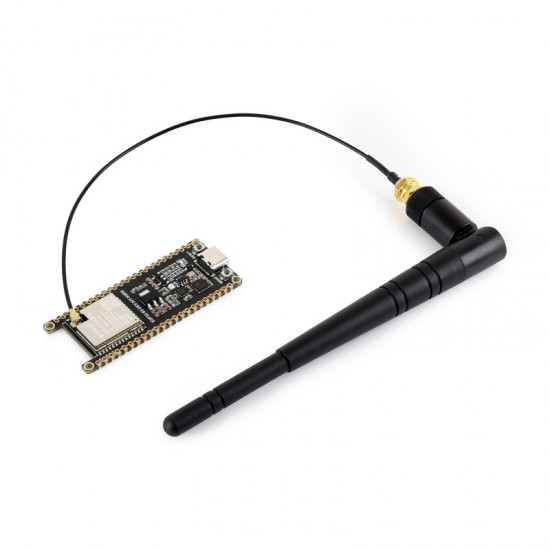

This product is a compact-size microcontroller development board with multiple digital interfaces.

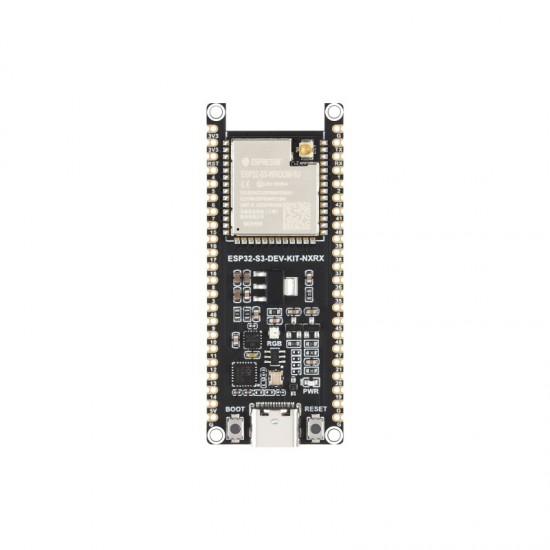

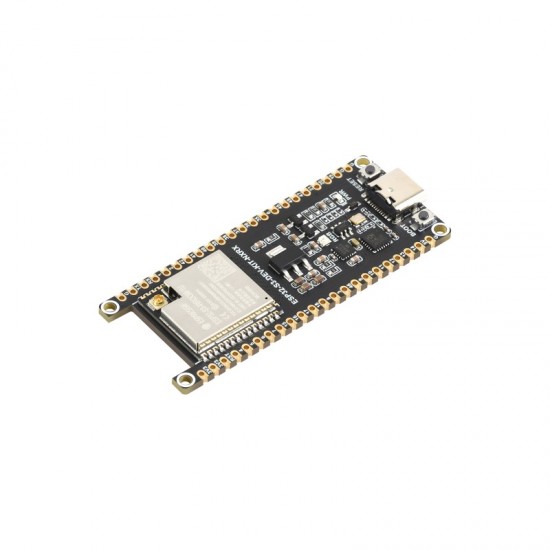

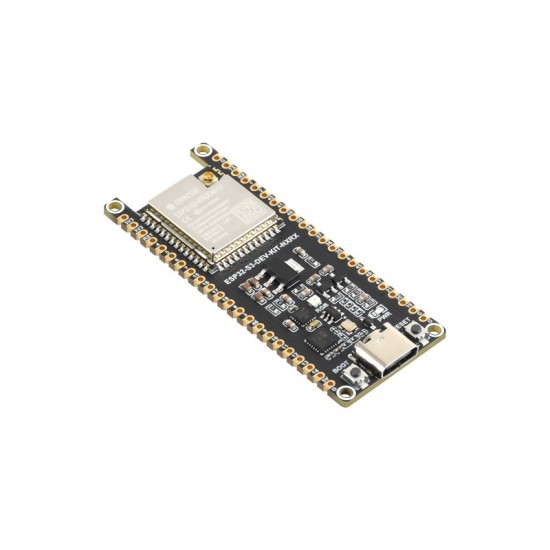

Adopts ESP32-S3-WROOM series module, which is equipped with a dual-core Xtensa 32-bit LX7 processor with 240MHz running frequency, built-in 512 KB Static RAM (TCM), provides 16MB Flash memory and 8MB PSRAM. Onboard CH343 and CH334 chips for USB and UART development via USB-C port. Compatible with the pinout of ESP32-S3-DevKitC-1 development board, more convenient to use and expand a variety of peripheral modules.

You can choose ESP-IDF, Arduino, MicroPython, or other development environments in software so that you can easily and quickly get started and apply it to the product.

User Manual / Datasheet / Example Codes Etc.

This item is available in multiple variants

ESP32-S3 Microcontroller 1-N16R8 (Unsolder Version): Link
ESP32-S3 Microcontroller 1-N8R8 (Unsolder Version): Link
ESP32-S3 Microcontroller N16R8-U (Unsolder Version): Link
ESP32-S3 Microcontroller N32R16V (Unsolder Version): Link
ESP32-S3 Microcontroller N16R8 (Solder Version): Link
ESP32-S3 Microcontroller 1-N8R8 (Solder Version): Link
ESP32-S3 Microcontroller N16R8-U (Solder Version): Link

Features

Adopts ESP32-S3-WROOM series module with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
Integrated 512KB Static RAM, 384KB ROM,16MB Flash memory and 8MB PSRAM.
Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance.
Type-C connector, easier to use
Onboard CH343 and CH334 chips can meet the needs of USB and UART development via a Type-C interface
Rich peripheral interfaces, compatible with the pinout of ESP32-S3-DevKitC-1 development board, offers strong compatibility and expandability
Castellated module allows soldering directly to carrier boards
Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios

Specifications

Frequency range: 2400 ~ 2500 MHz
Storage temperature: -30°C ~ +75°C
VSWR: ≤2.5
Peak Gain: 3±0.5 dBi
Output Impedance: 50 Ω
Polarisation: Vertical
Maximum power: 10 W
Dimensions: 155 × 12 (mm)
Connector: SMA male central pin
Body Material: TPEE
Operating Voltage: -20˚C ~ + 65˚C
Radiation: Omnidirectional

Package Includes

1x ESP32-S3-DEV-KIT-N16R8-U
4x 20PIN male pinheader (black)

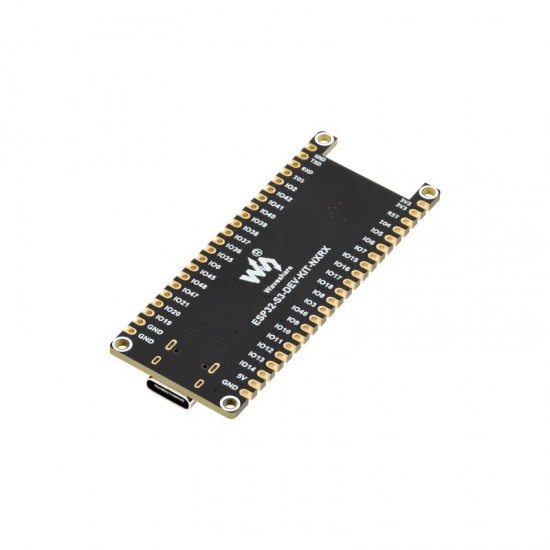

Pinout Definition

Onboard Resources

Dimensions
