Adafruit ESP32-S3 Feather 8MB with w.FL Antenna

This product qualifies for Free Surface Shipping !

All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)
₹​2,886.00
₹​2,445.76 + 18% GST
All Inclusive, Shipping Calculated at Checkout
Assured Cashback of ₹ 24
B2B GST Credit Available
Price in reward points: 2445

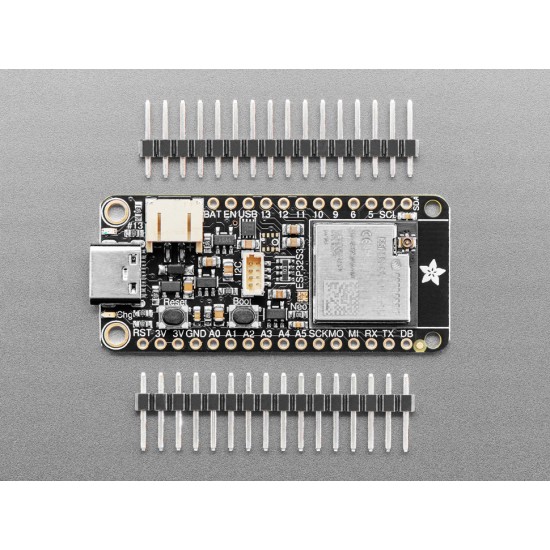

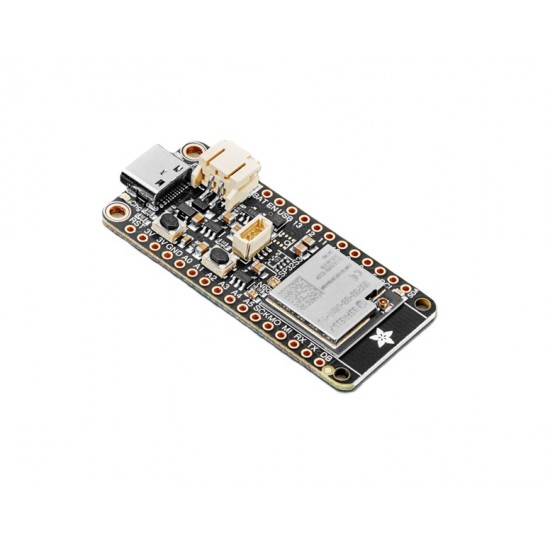

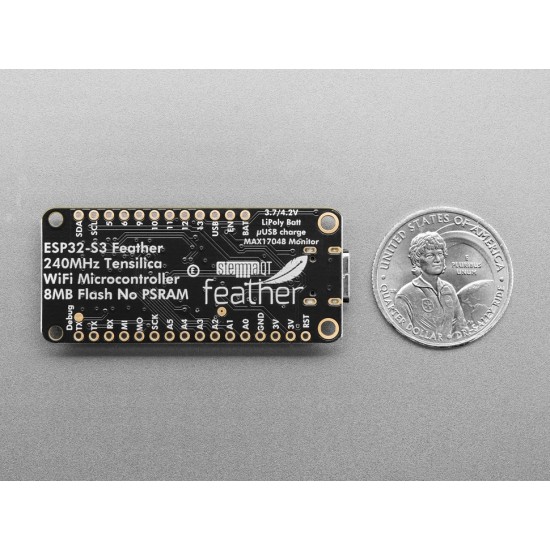

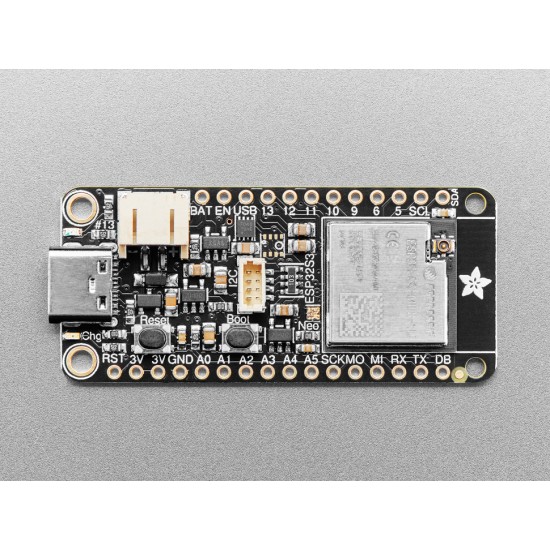

Adafruit ESP32-S3 Feather 8MB with w.FL Antenna

The Adafruit ESP32-S3 Feather 8MB with w.FL Antenna is a compact and powerful development board built around the advanced ESP32-S3 dual-core processor. Designed in Adafruit’s popular Feather form factor, this board offers built-in Wi-Fi and Bluetooth LE connectivity along with native USB support for modern IoT, automation, wearable, and embedded AI applications. The onboard w.FL (MHF3/IPEX3) antenna connector enables the use of external antennas for improved wireless range and signal performance, making it ideal for enclosed or long-range projects.

Powered by the dual-core 240MHz Tensilica ESP32-S3 chipset, the board includes 8MB Flash memory and 512KB SRAM, delivering excellent performance for Arduino, ESP-IDF, and lightweight CircuitPython applications. Native USB functionality allows the board to emulate devices such as keyboards, mice, MIDI controllers, and USB serial interfaces without requiring an external USB-to-UART chip.


User Manual


Features

  • ESP32-S3 dual-core 240MHz processor
  • 8MB onboard Flash memory
  • Native USB support for HID, MIDI, and serial applications
  • Wi-Fi 2.4GHz + Bluetooth Low Energy (BLE)
  • External antenna support via w.FL / MHF3 connector

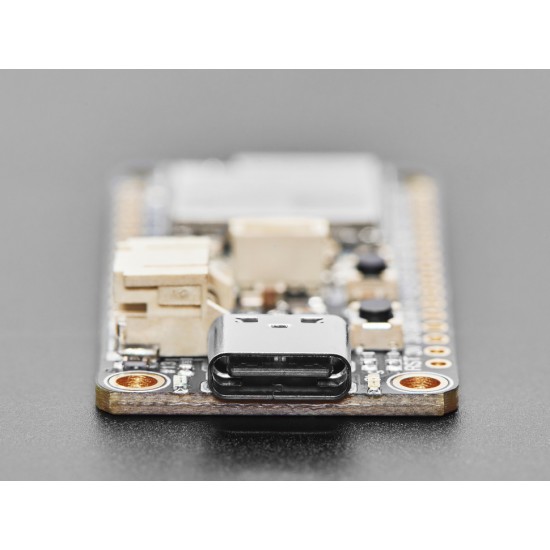

  • USB Type-C interface
  • LiPo battery charging and battery monitoring
  • STEMMA QT / Qwiic compatible I2C connector
  • Onboard NeoPixel RGB LED
  • Deep sleep low-power support
  • Compatible with Arduino, ESP-IDF, and CircuitPython


Specifications

  • Processor: ESP32-S3 Xtensa Dual-Core LX7
  • Clock Speed: Up to 240MHz
  • Flash Memory: 8MB
  • SRAM: 512KB
  • Wireless: 2.4GHz Wi-Fi + BLE
  • USB Interface: Native USB Type-C
  • Antenna Connector: w.FL / MHF3 / IPEX3
  • Operating Voltage: 3.3V
  • Battery Support: 3.7V LiPo/Li-Ion
  • Form Factor: Feather
  • Connectivity: STEMMA QT, GPIO, I2C, SPI, UART, ADC, PWM


Package Includes

  • 1xESP32-S3 Feather 8MB with w.FL Antenna
