ESP32-S3 4inch (No Touch) Display Development Board, 480×480, 32-Bit LX7 Dual-Core Processor, Up To 240MHz Frequency, Supports WiFi & Bluetooth, With Onboard Antenna

ESP32-S3 4inch (No Touch) Display Development Board, 480×480, 32-Bit LX7 Dual-Core Processor, Up To 240MHz Frequency, Supports WiFi & Bluetooth, With Onboard Antenna, ESP32 With Display

ESP32-S3-Touch-LCD-4 is a microcontroller development board with 2.4GHz WiFi and BLE 5 support, integrates 16MB Flash and 8MB PSRAM. Onboard 4inch 480 × 480 no touch screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces to quickly develop the HMI of ESP32-S3, suitable for scenarios such as smart control panel, home gateway, intelligent interactive panel, industrial control, and smart lighting control.

User Manual / Datasheet / Example Codes Etc.

Features

• Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency.
• Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna.
• Built in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM.
• Onboard 4inch no touch display, 480×480 resolution, 65K color.
• Supports capacitive touch control via I2C interface, 5-point touch with interrupt support.
• Onboard CAN, RS485, I2C interface and TF card slot, and integrates full-speed USB port.
• Supports flexible clock, module power supply independent setting and other controls to realize low power consumption in different scenarios.

Package Includes

• ESP32-S3-LCD-4 x1
• Back wiring 3.5mm pitch 10P pluggable terminal block ×1
• Bottom wiring 3.5mm pitch 10P pluggable terminal block ×1

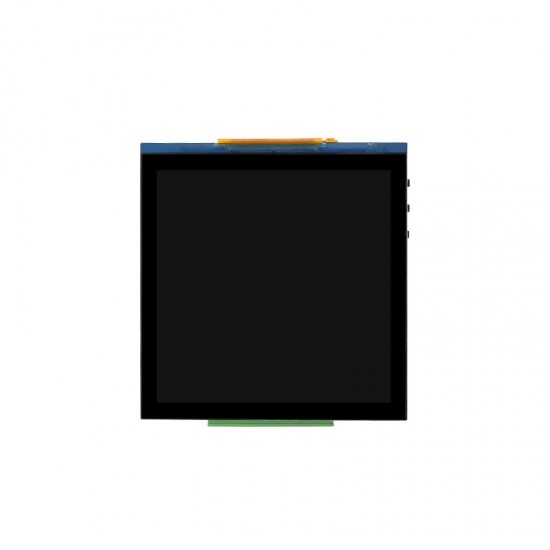

IPS Display Panel

Excellent display performance, 160° wide viewing angle

WIFI And Bluetooth Support

supports 2.4 GHz Wi-Fi (802.11 B/G/N) and Bluetooth 5 (LE), Onboard Antenna

What's On Board

Dimensions
