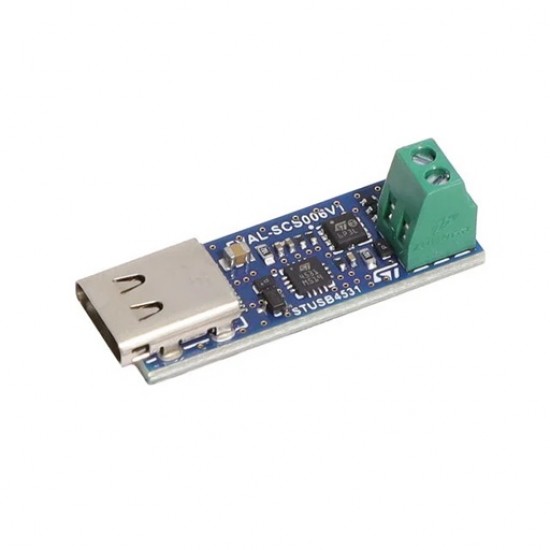

STMicroelectronics EVAL-SCS006V1 USB Type-C Power Delivery (PD) Power Management Evaluation Board

STMicroelectronics EVAL-SCS006V1 USB Type-C Power Delivery (PD) Power Management Evaluation Board
New
STmicroelectronics
STMicroelectronics EVAL-SCS006V1 USB Type-C Power Delivery (PD) Power Management Evaluation Board

This product qualifies for Free Surface Shipping !

All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)
Based on 0 reviews. - Write a review
₹​2,616.00
₹​2,216.95 + 18% GST
All Inclusive, Shipping Calculated at Checkout
Assured Cashback of ₹ 22
B2B GST Credit Available
Price in reward points: 2216
Buy Now NOTIFY WHEN AVAILABLE
Plan to Buy Later ? Add to Wish List

STMicroelectronics EVAL-SCS006V1 USB Type-C Power Delivery (PD) Power Management Evaluation Board

The STMicroelectronics EVAL-SCS006V1 is a compact evaluation board designed to demonstrate a minimal USB Type-C® Power Delivery (PD) Sink implementation, enabling fast and cost-effective migration from traditional DC barrel connectors to modern USB Type-C power inputs. Built around the STUSB4531 USB PD controller, the board supports USB PD 3.2 and USB Type-C Rev. 2.4 standards, providing reliable power negotiation for applications requiring up to 100W of USB-C power. It features dead battery support, short-to-VBUS protection up to 28V, a status LED for power profile indication, and a low-BOM, space-saving design. Certified as a USB Power Sinking Device, the EVAL-SCS006V1 serves as an ideal reference platform for developing USB-C powered industrial, consumer, IoT, medical, and embedded electronic products while simplifying USB PD integration.


Datasheet


Features

  • USB Type-C® Power Delivery (PD) Sink evaluation board
  • Based on the STUSB4531 standalone USB PD controller
  • Supports USB Power Delivery 3.2 and USB Type-C Rev. 2.4
  • Delivers up to 100W (20V/5A) USB-C power negotiation
  • Enables easy migration from DC barrel jack to USB Type-C power input
  • USB-IF certified USB Power Sinking Device reference design
  • Supports Dead Battery Mode operation
  • Integrated 28V VBUS short-circuit protection
  • LED indicator for USB PD contract and power status
  • Compact, low-BOM design for rapid prototyping and evaluation
  • Suitable for industrial, consumer, IoT, medical, and embedded applications


Package Includes

  • 1x STMicroelectronics EVAL-SCS006V1 USB Type-C Power Delivery (PD) Power Management Evaluation Board
