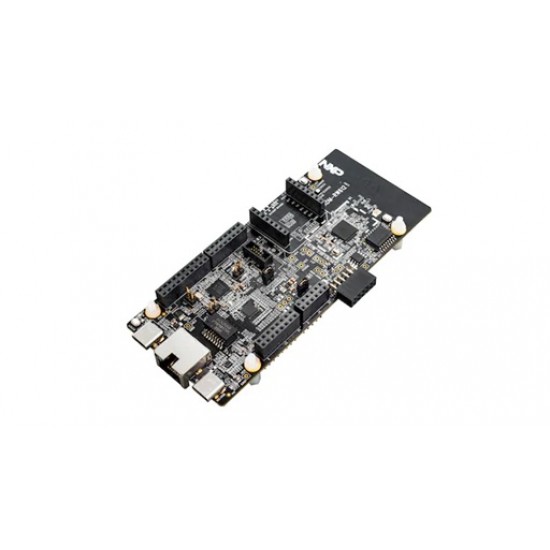

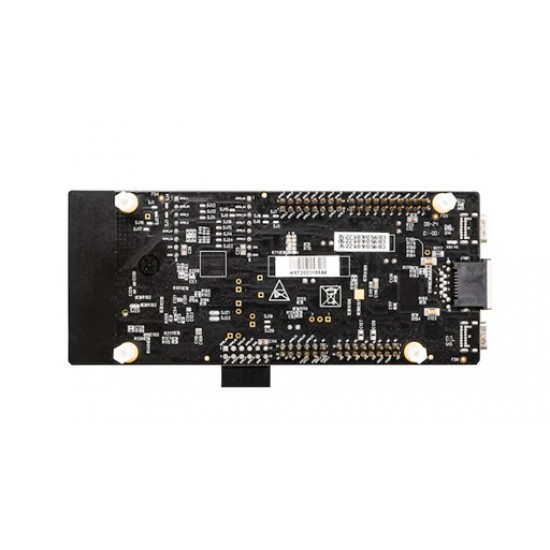

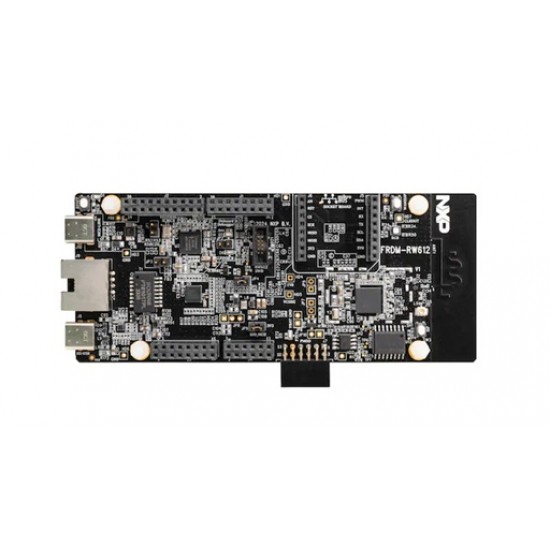

NXP FRDM-RW612 Development Board for RW612 MCU with Wi-Fi 6, Bluetooth LE 5.4 & 802.15.4 Tri-Radio Wireless MCU
FRDM-RW612 is a compact and scalable development board for rapid prototyping of the RW61x series of Wi-Fi 6 + Bluetooth Low Energy + 802.15.4 tri-radio wireless MCUs.
It offers easy access to the MCU’s I/Os and peripherals, integrated open-standard serial interfaces, external flash memory and on-board MCU-Link debugger.
NXP's Expansion Board Hub for add-on boards, the Application Code Hub for software examples and more are available through the MCUXpresso Developer Experience.
Features
- Microcontroller: RW612 Arm™ Cortex™-M33 core @260MHz with optimized performance efficiency, 1.2 MB on-chip SRAM
- Memory Expansion
- Winbond QSPI flash (512Mbit): W25Q512JV
- AP Memory QSPI pSRAM (64 Mbit): APS6404L-SQN-SN
- Connectivity
- SPI/I2C/UART connector (mikroBUS, Pmod™)
- Ethernet Phy and connector
- HS USB Type-C connectors
- Dual-band, 1x1 Wi-Fi 6 radio with 20 MHz channel bandwidth
- Bluetooth LE radio
- 802.15.4 radio supporting Zigbee and Thread
- Debug
- On-board MCU-Link debugger with CMSIS-DAP
- JTAG/SWD connector
- Sensor: P3T1755 I3C temperature sensor
- Expansion Options
- Arduino® Header (with FRDM expansion rows)
- FRDM Header
- Pmod™
- mikroBUS™
- User Interface: RGB user LED, Reset, ISP, Wakeup buttons
Package Includes
- 1x NXP FRDM-RW612 Development Board for RW612 MCU with Wi-Fi 6, Bluetooth LE 5.4 & 802.15.4 Tri-Radio Wireless MCU

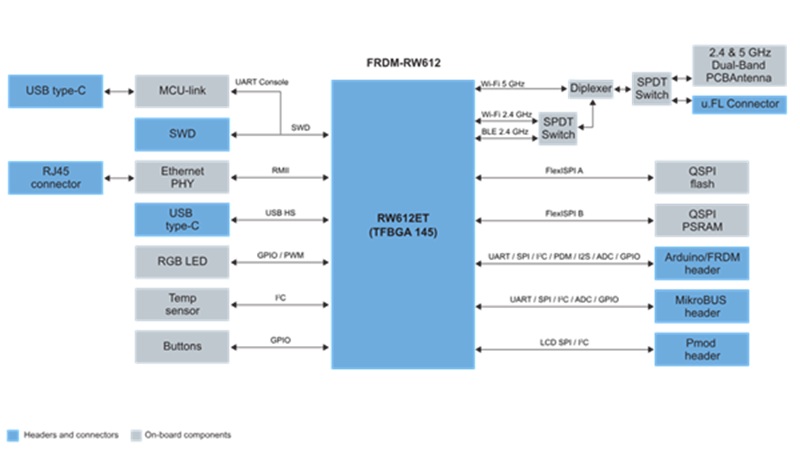

Block Diagram
