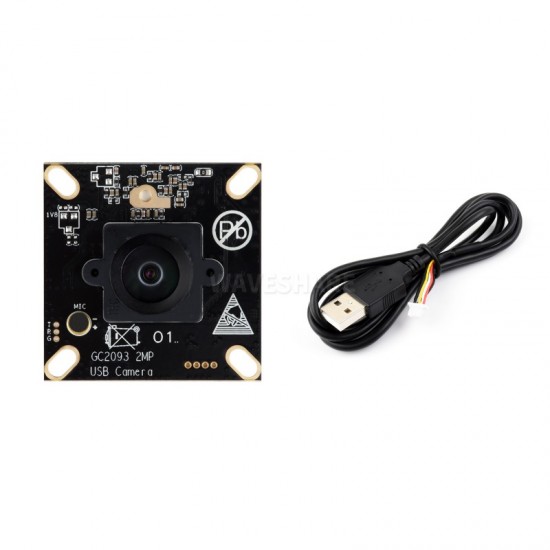

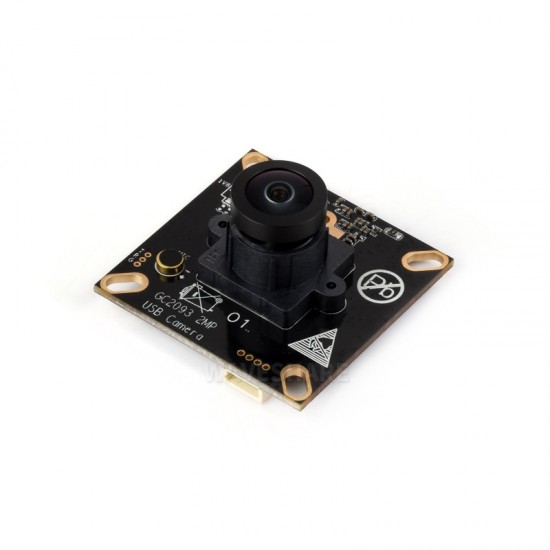

GC2093 2MP USB Camera Module, Wide Dynamic Backlight Imaging, Fixed-Focus, Onboard Microphone
This product qualifies for Free Surface Shipping !
All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)
₹2,599.00
All Inclusive, Shipping Calculated at Checkout
Assured Cashback of ₹ 22
B2B GST Credit Available
Price in reward points: 2203
- Stock: 0 in Stock
- SKU: 31328
- Delivery Time
- Bulk & B2B RFQ
Featuring a high dynamic range of 81dB in Linear mode and up to 105dB in HDR mode, combined with the characteristics of GC2093, it performs impressively in backlit environments. Whether under direct sunlight or in scenes with strong contrast between light and shadow, it effectively balances image brightness and preserves detail in both highlights and shadows.
Specifications
| Pixels | 2MP | |
|---|---|---|
| sensor chip | GC2093 | |
| Interface | USB 2.0 | |
| Camera | Sensor size | 1/2.9 inch |
| Aperture (F) | 2.2 | |
| Effective Focal length (EFL) | 2.28 mm | |
| Field of View (FOV) | 170.2°(D) 144°(H) 77.6°(V) | |
| Focusing | Fixed-focus | |
| Distortion | <-27° | |
| Dynamic Range | 81dB Linear mode, 105dB HDR mode | |
| IR Filter | 650nm filter | |
| Image | Format support | MJPG、YUY2 |
| Static photographic resolution | 1920 × 1080 | |
| Video recording | MJPG: 30FPS 640×360 30FPS 640×480 30FPS 1024×576 30FPS 1280×720 30FPS 1920×1080 | |
| YUY2: 25FPS 640×360 25FPS 640×480 20FPS 1024×576 15FPS 1280×720 | ||
| Audio | Onboard microphone | |
| Operating Voltage | 5V ± 5% | |
| Operating current | 180mA | |
| Dimensions | 38.00 × 38.00 × 19.01 (mm) | |
Resources
User Manual / Datasheet / Example Codes Etc.
Dimensions
