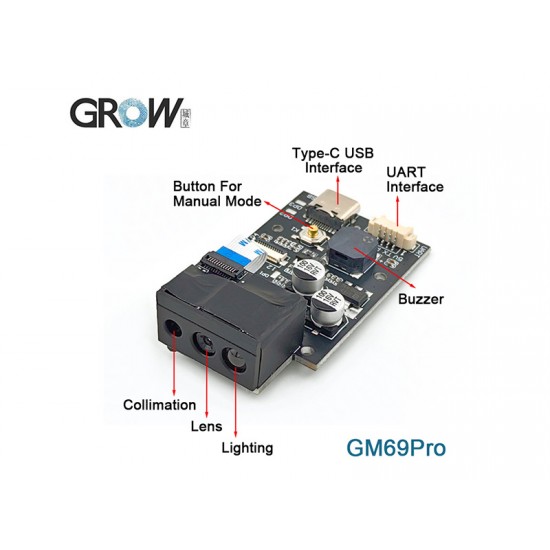

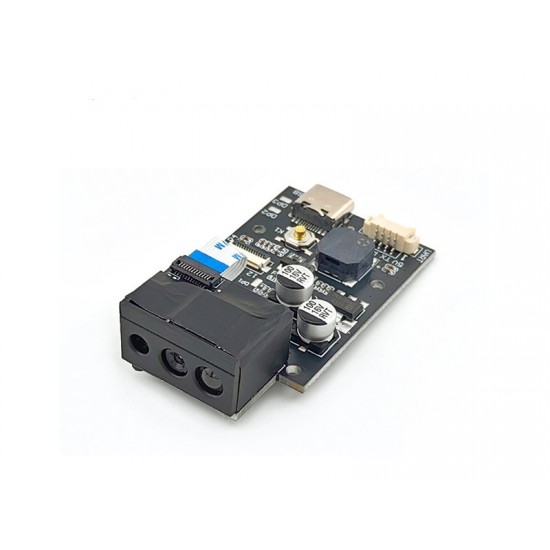

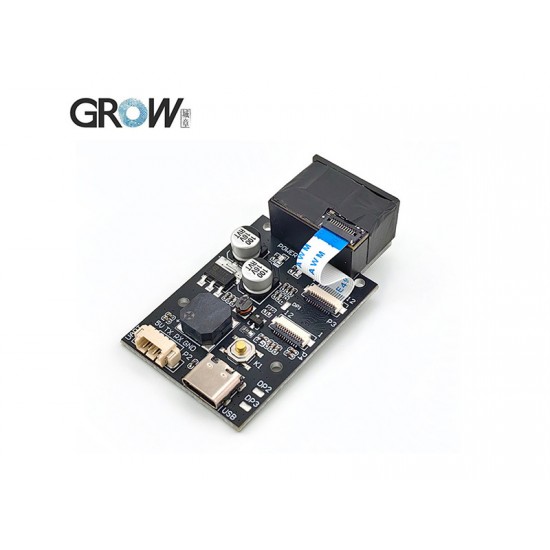

GROW GM69Pro 1D/2D Barcode QR Code Scanner Module USB and UART interface
GM69Pro is a high-performance embedded 2D image module, using advanced CMOS image recognition technology, intelligent image recognition system, equipped with 1 million pixel global camera, with excellent reading performance, can easily read the bar code on paper, goods, screens and other media. According to different size bar codes, the reading distance can reach more than 2.5 meters; Through the OCR function Settings, you can read the Chinese ID number and passport number. The all-in-one compact design allows easy insertion into a wide range of devices.It can read 50+ codes type, including bar code and qr code and OCR passport. It use 1280*800 CMOS, can read high density code, have USB and UART interface.
Specifications
- Interface: USB(USB-KBW,USB-COM,HID-POS),TTL-232
- Image sensor: CMOS, Global
- Pixel: 1 million pixel
- Resolution: ≥3mil/0.076mm (PCS90%,CODE 39)
- Read Mode: Manual Mode,Induction Mode,Continuous Mode
- Prompting mode: LED, Buzzer

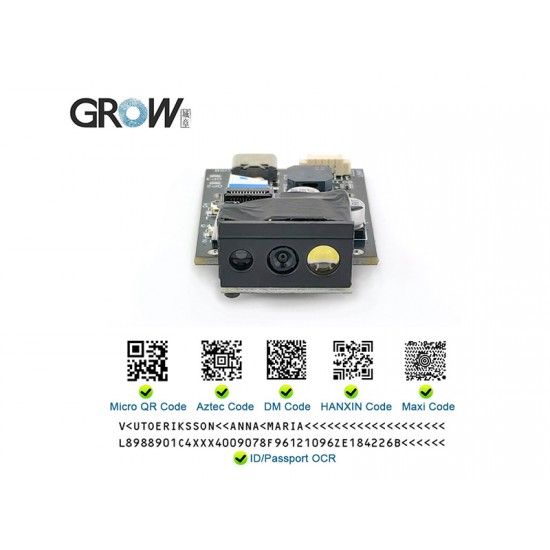

- Read CodeType
- 2D
- QR code,Micro QR,Data Matrix,PDF417,Micro PDF417
- Maxi Code,Aztec Code,Hanxin Code,Pharma Code,Codablock A Code,Codablock F Code,Code16K,
- Code49,Dot Code,Grid Matrix,Australian Post,British Post,USPS Intelligent Mail,Japanese Post,Planet Code,Postnet Code,UPU 4-State,KIX Code,etc.
- 1D
- UPC-A,UPC-E0,UPC-E1,EAN-8,EAN-13,ISBN,ISSN,
- Code 128,GS1 128,ISBT 128,Code 39,Code 32 Pharmaceutical,Code 93,Code11,Codabar,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5,
- NEC 2 of 5,MSI Plessey,UK Plessey,Posi Code,Telepen
- Trioptic,BC412,Febraban,Coupon,HongKong 2 of 5(China Post),Korea Post,GS1 DataBar 14 (RSS-14)
- GS1 Databar Limited,GS1 Databar Expanded
- GS1 Composite Code,TLC 39 Code,OCR.
- Depth of Field
- 40mm~900mm (different bar code range): Decode speed
- 65CM/S: Contrast
- ≥20%: Scanning angle
- Test Conditions：CODE39,10mil/0.25mm,PCS90%: Roll: ±360°, Pitch:±60°, Skew: ±55°
- Viewing Angle: H:42° V:27° opposite angles: 49°
- Mechanical/: Electrical Parameters
- Weight: 11.8g

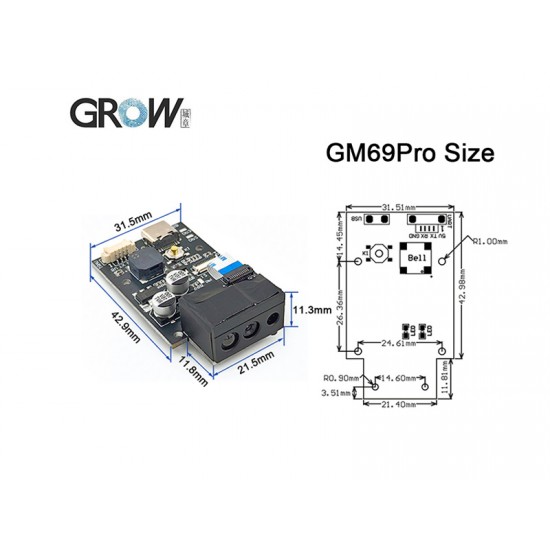

- Dimension: 54.8mm L* 31.5mm W * 13.5mm H
- Operating Voltage: DC 5V
- Current: 200mA(Average Work), 95mA(Standby), 38mA(Sleep)
- Environmental Parameters
- Operating Temperature: -20℃~+50℃
- Storage Temperature: -40℃~+60℃
- Operating Humidity: 5%~95%（Non-Condensing）
- Environmental Light: 0~100000LUX

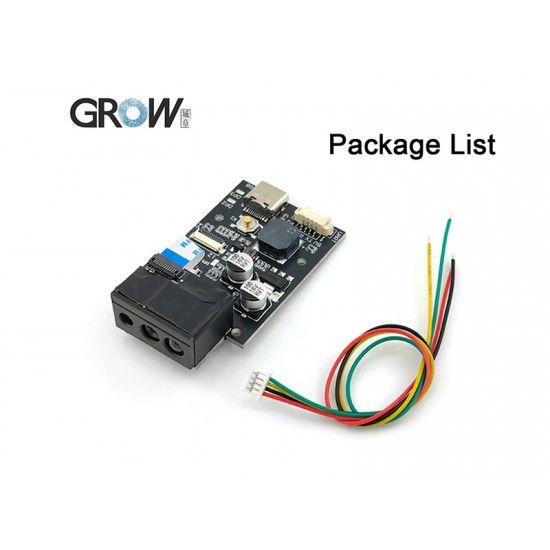

Package Includes
- 1x GROW GM69Pro 1D/2D Barcode QR Code Scanner Module USB and UART interface
