Waveshare HDMI to CSI Adapter Type B, 4K At 30fps Support, Compatible With Raspberry Pi Series Boards And Multiple Luckfox Linux Boards

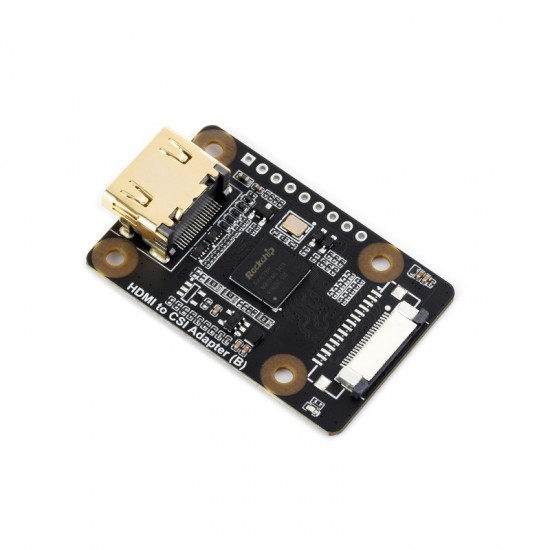

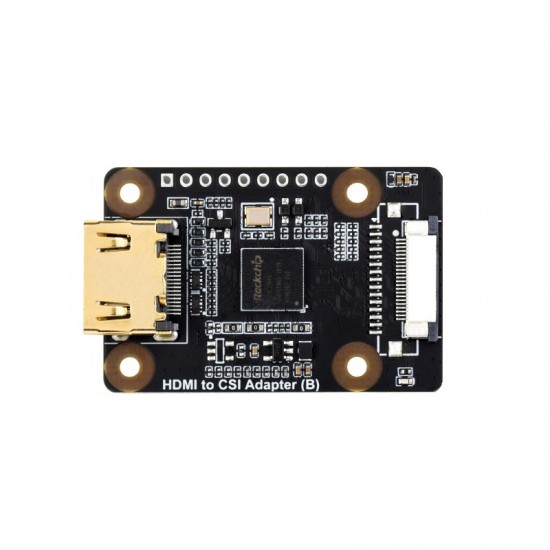

The HDMI to CSI Adapter (B) is an adapter based on the Rockchip RK628H chip, designed to convert HDMI input signal into MIPI CSI video and I2S audio signals. Supports HDMI input with up to 4K at 30fps resolution and MIPI CSI output with up to 4K at 30fps resolution. Supports HDMI video downsampling, with adjustable output resolution to meet different requirements. Suitable for video capture from HDMI sources such as PCs, game consoles, and cameras, and compatible with all Raspberry Pi boards and multiple Luckfox Linux boards.


User Manual / Datasheet / Example Codes Etc.


Specifications

  • Chip: RK628H
  • Input signal
    • Video: HDMI 2.0, supports up to 4K at 30fps
    • Audio: HDMI
  • Output signal
    • Video: 2/4-lanes MIPI CSI-2, up to 1.3Gbps data rate per channel

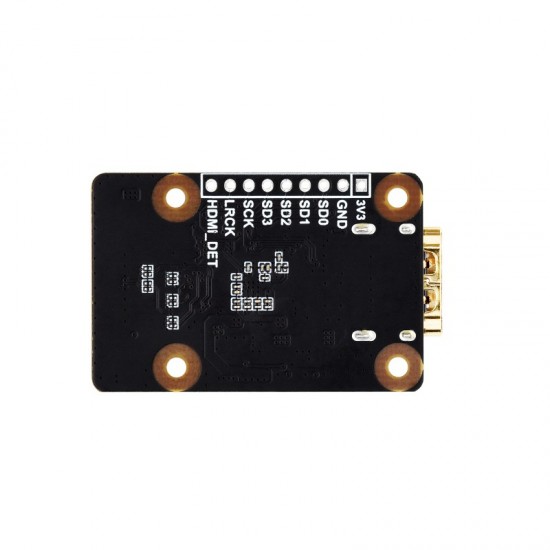

    • Audio: I2S audio output, LPCM audio stream format
  • Operating voltage: 3.3V
  • Operating temperature: -20 ~ 70°C

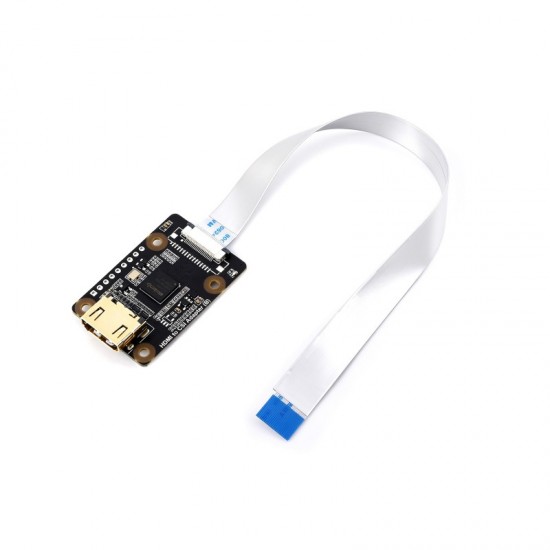

Package Includes

  • HDMI to CSI Adapter (B) x1
  • 22PIN 0.5mm pitch FFC cable (opposite) 200mm x1

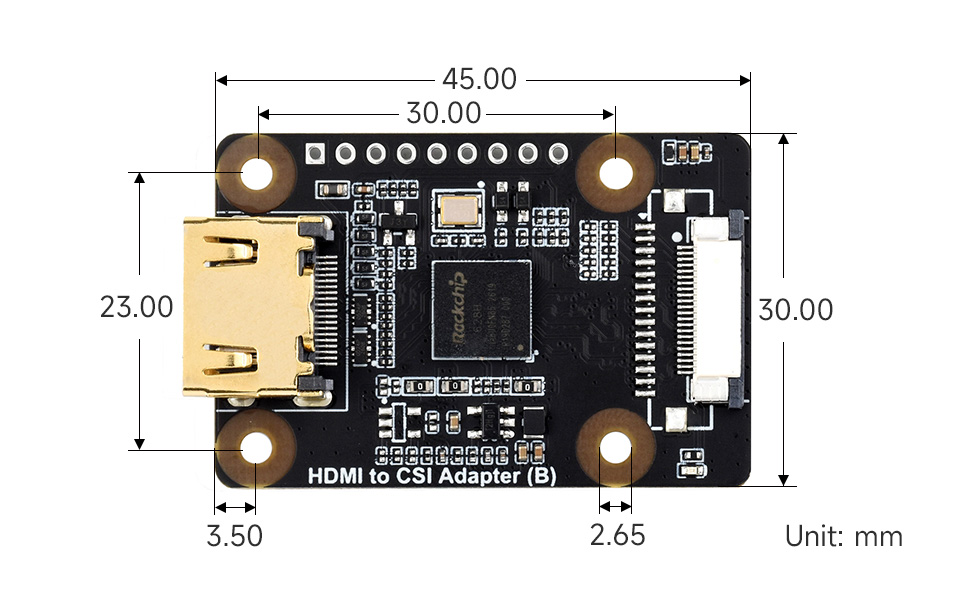

Dimensions
