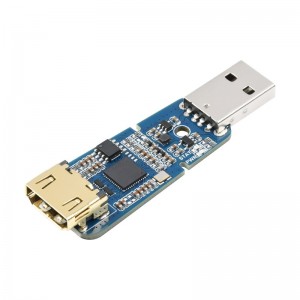

USB Port High Definition HDMI Video Capture Card, for Gaming / Streaming / Cameras, HDMI to USB 3.0 Adapter

USB Port High Definition HDMI Video Capture Card, for Gaming / Streaming / Cameras, HDMI to USB 3.0 Adapter

HDMI to USB 3.0 Adapter, a USB HD Video Capture Card, supports driver-free installation. It also supports main systems such as Windows, Linux, and macOS, and is applicable to OBS. Potplayer and other recording software. HDMI to USB Adapter can record/broadcast HDMI screen with up to 4K 30HZ input and 1080P 60HZ output.

User Manual / Datasheet / Example Codes Etc.

Features

HDMI Input

• Compatible with HDMI 1.4B
• Support DVI1.0
• Support HDCP1.4
• Support RGB444/YCBCR422/YCBCR444/YCBCR420
• Support color depth 24/30/36-bit mode
• Support CEA-861/CEA-861-F video format
• Maximum supported resolution: 4K（3840*2160@30Hz）

USB Output

• Built-in USB 3.0 device
• Compatible with USB 2.0 device mode
• USB video complies with the UVC 1.0 protocol
• Support YUV422 and MJPEG mode
• Maximum supported resolution: 1080P (1920*1080@60Hz)
• Support user-define resolution
• USB audio is compliant with the UVC1.0 protocol

Multi Systems Support Supports Windows, Linux, MacOS, Android

Wide Variety Of Hosts Support

Easy Use With Different Hosts Like: Smartphone, Game Console, Set-Top Box, Camera...

Dimensions
