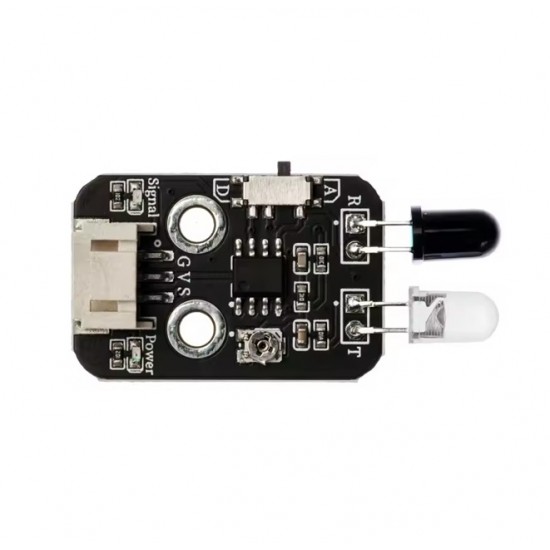

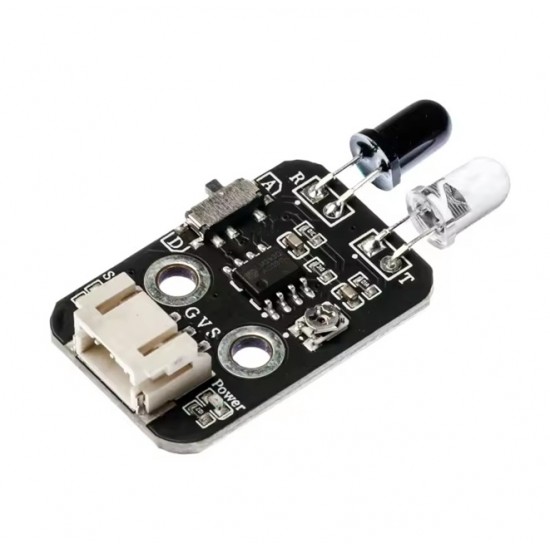

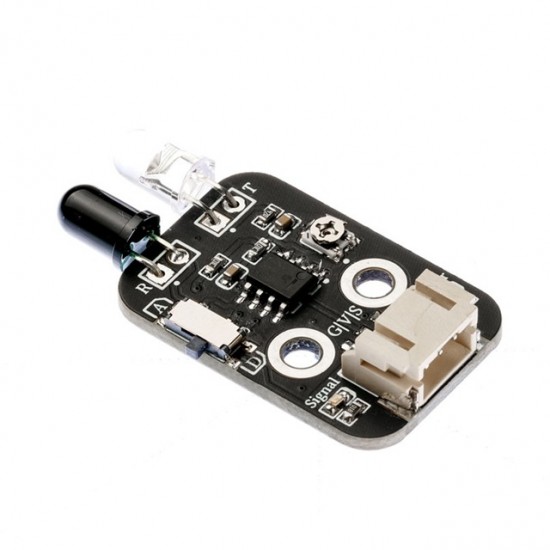

HS-S02P Infrared Obstacle Avoidance Sensor Module
This sensor module has strong adaptability to ambient light. It is equipped with an infrared transmitting tube and a receiving tube. The transmitter emits infrared light at a certain frequency, and when an obstacle (reflective surface) is detected in front of it, the infrared light is reflected back and received by the receiver. After being processed by the comparator circuit, the blue indicator LED lights up, and the signal output interface outputs a digital signal (a low-level signal). The detection distance can be adjusted using the potentiometer knob, with an effective range of 2–30 cm. The operating voltage is 3.3V–5V.
The detection distance of this sensor can be adjusted through the potentiometer. It features low interference, easy installation, and convenient use. It can be widely used in various applications such as robot obstacle avoidance, obstacle-avoidance cars, production line counting, and black-and-white line tracking.
Specifications
- Model: HS-S02P
- Operating Voltage: 3.3V–5.5V
- Interface Type: PH2.0 3-Pin Terminal

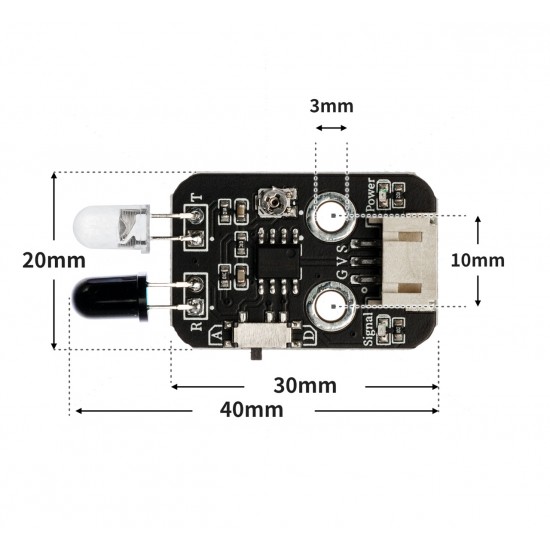

- Mounting Hole Specifications: Hole Diameter 3mm, Hole Spacing 10mm
- Module Size: 30mm × 20mm × 14mm
Interface Description
- G – Power Negative
- V – Power Positive
- D – Digital Signal Output Pin
- A – Analog Signal Output Pin
Package Includes
- 1x HS-S02P Infrared Obstacle Avoidance Sensor Module
