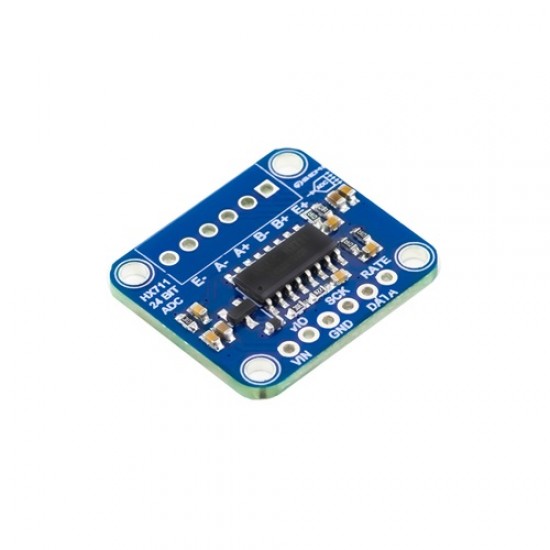

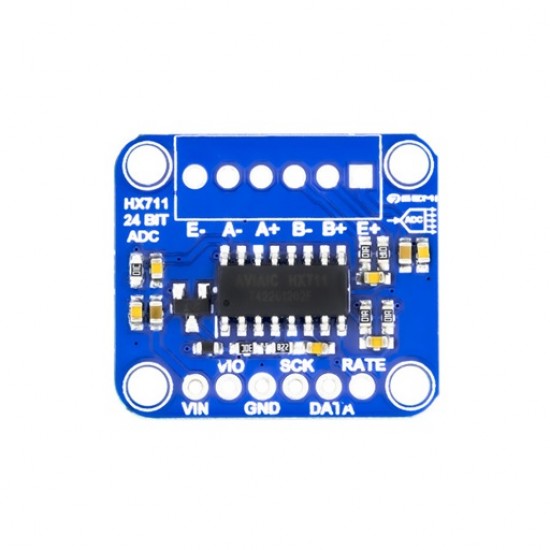

HX711 Load Cell Amplifier – 24-bit ADC for Weight Measurement
₹​92.00
₹​77.97 + 18% GST
All Inclusive, Shipping Calculated at Checkout

B2B GST Credit Available
Price in reward points: 77

HX711 Load Cell Amplifier – 24-bit ADC for Weight Measurement

The 7Semi HX711 Load Cell Amplifier is a high-precision module used for weight measurement and load sensing applications. It converts small signals from load cells into accurate digital values, making it easy to measure weight using a microcontroller. The module uses a simple two-wire interface, so it is easy to connect and use in projects. It works with a wide voltage range and supports different gain settings for better accuracy. This makes it ideal for weighing scales, industrial measurement, and automation systems.


Datasheet


Features

  • 24-Bit ADC: Provides very high accuracy for weight measurement.
  • Load Cell Support: Works with standard 4-wire load cells.
  • Dual Input Channels: Allows connection of multiple sensors.
  • Programmable Gain: Selectable gain for better signal accuracy.
  • Simple Interface: Uses only two wires for communication.
  • Wide Voltage Range: Operates from 2.6V to 5.5V.
  • Low Power Consumption: Efficient for long-term use.
  • Adjustable Data Rate: Supports 10SPS and 80SPS modes.

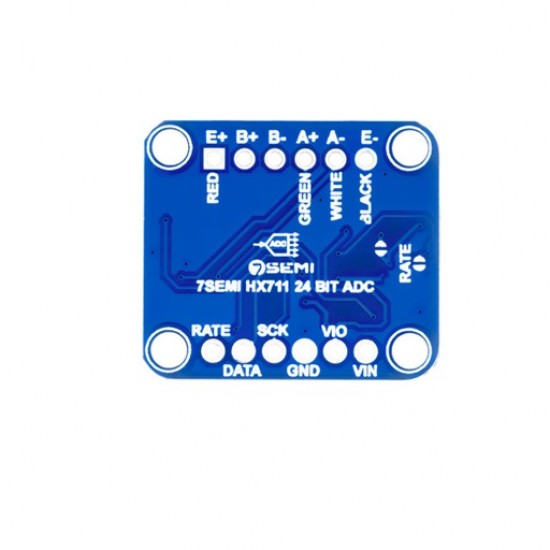

  • Easy Wiring: Color-coded connections for quick setup.


Specifications

  • TYPE OF PRODUCT: ADC FOR WEIGHT SCALE
  • VOLTAGE REQUIRED: 5V
  • OPERATING TEMPRATURE: -40 TO +85℃
  • TOPOLOGY: (ΔΣ) + PGA
  • RESOLUTION: 24 BIT
  • SAMPLING RATE: 80 KSPS
  • COMMUNICATION METHOD: SERIAL
  • DIMENSION: L=19mm W=16mm H=2.55mm


Package Includes

  • 1x HX711 Load Cell Amplifier – 24-bit ADC for Weight Measurement
