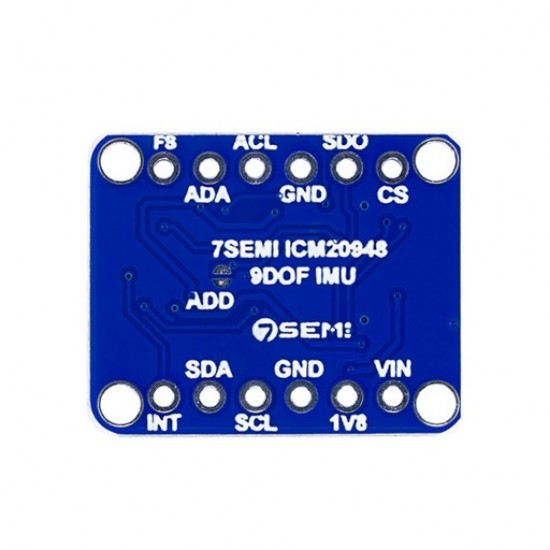

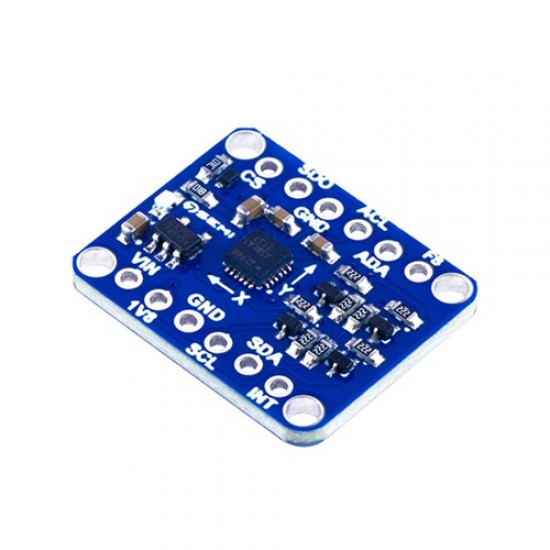

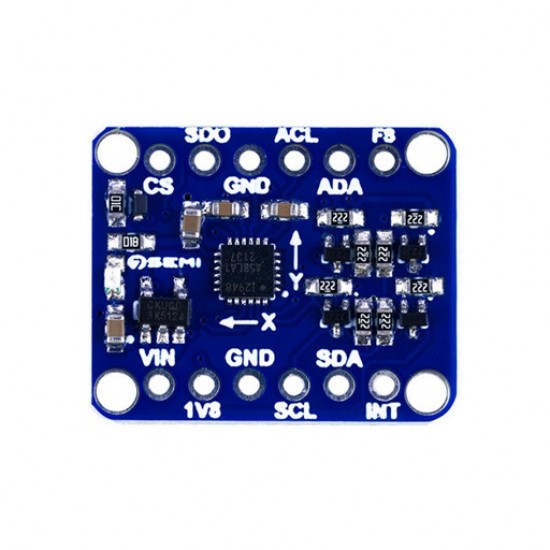

ICM-20948 9DoF IMU Breakout (MPU-9250 Upgrade)
The 7Semi ICM-20948 9DoF IMU Breakout integrates a 3-axis gyroscope, accelerometer, and magnetometer, offering comprehensive motion tracking. It features a Digital Motion Processor (DMP) to offload computation, supports I²C and SPI interfaces, and operates within a 1.95V to 3.6V supply range. This breakout board is ideal for applications in smartphones, wearables, and IoT devices.
Features
- Comprehensive 9-Axis Motion Tracking: Triple-axis gyroscope, accelerometer, and magnetometer with multiple programmable ranges.
- Efficient Digital Motion Processor (DMP): Offloads computation to ensure smooth and accurate motion tracking.
- Versatile Communication Interfaces: Supports I2C and SPI, with up to 7 MHz for SPI communication.
- Wide Supply Voltage Range: Operates efficiently between 1.95 V to 3.6 V.
- Compact and User-Friendly Design: Breakout board with 0.1"-spaced pins for easy breadboard use, and clearly labeled I2C/SPI pins for seamless integration.
Specifications
- VOLTAGE REQUIRE: 3.3V
- OPERATIONAL TEMPRATURE: -40 TO 80
- AXIS-FOV: 9-DOF
- INTERFACE: SPI/I2C
- ACCELARATION: ±2g, ±4g, ±8g, ±16g
- GYROSCOPE: ±125 / ±250 / ±500 / ±1000 / ±2000 dps
- MAGNETOMETER RANGE: 1300UT

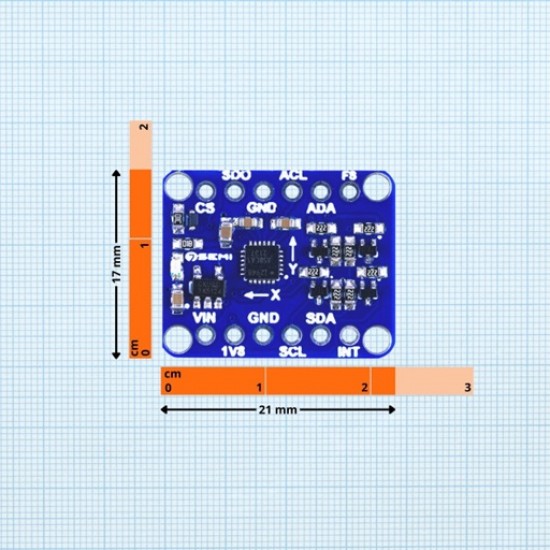

- DIMENSION mm: 21 X 17 X 2
Package Includes
- 1x 7Semi ICM-20948 9DoF IMU Breakout (MPU-9250 Upgrade)
