Waveshare IMX415 8MP MIPI Camera Module Type B, Autofocus, 93.5° D-FoV, Distortion-free, Supports Raspberry Pi 5 / 4B / 3 / Zero

The Waveshare IMX415 8MP MIPI Camera Module Type B is a high-resolution camera module designed for Raspberry Pi and embedded vision applications. Built around the Sony IMX415 image sensor, it delivers 8-megapixel image capture with excellent image detail and clarity. The module features autofocus and a 93.5° diagonal field of view (D-FoV), making it suitable for applications that require a wider viewing area.

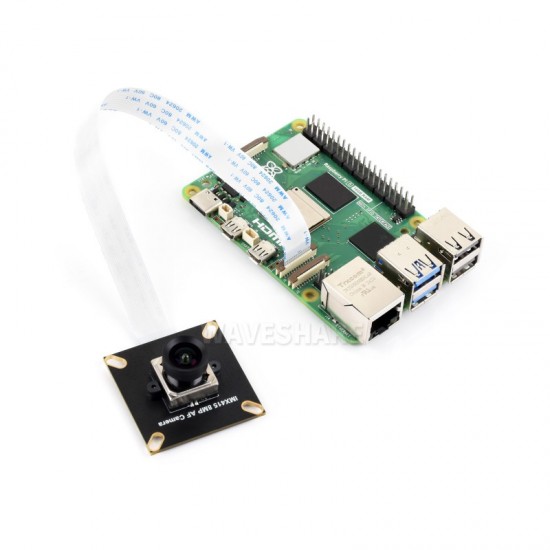

The camera uses a MIPI CSI interface for high-speed image transmission and is designed to work with compatible Raspberry Pi platforms, including Raspberry Pi 5, Raspberry Pi 4B, Raspberry Pi 3 series, and Raspberry Pi Zero. Its compact form factor makes it convenient for robotics, smart vision systems, AI projects, surveillance, industrial monitoring, and embedded camera applications.

With its distortion-free imaging, autofocus capability, and high-resolution 8MP sensor, the Waveshare IMX415 camera provides reliable visual input for computer vision and image-processing projects. It is a practical choice for Raspberry Pi-based systems requiring detailed and wide-angle image capture.

User Manual / Datasheet / Example Codes Etc.

Specifications

Sensor: IMX415
Camera Type: Color
Image Size: Diagonal 6.43mm
Aperture: F2.2
FoV: 93.5°(D) × 85.2°(H) × 55.5°(V)
CMOS Size: 1/2.9″
Recommended Recording Pixels: Approx. 8.29MP (3840 × 2160)
Unit Cell Size: 1.45um (H) × 1.45um (V)
Focal Length: 3.3mm
Distortion: -0.4%
Applications: Suitable for AI applications such as facial recognition, road marking recognition, license plate recognition, etc.

Package Includes

1x IMX415 8MP AF Camera (B)
1x FFC 22PIN cable (opposite) 200mm

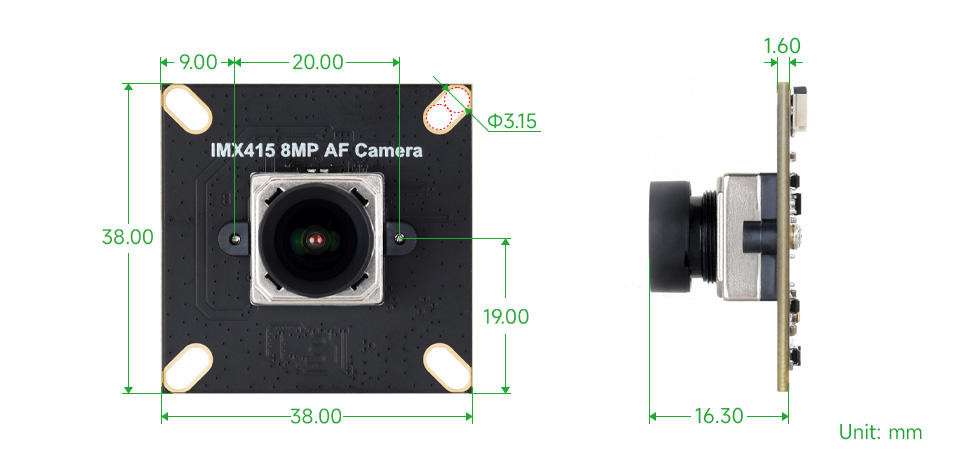

Dimensions
