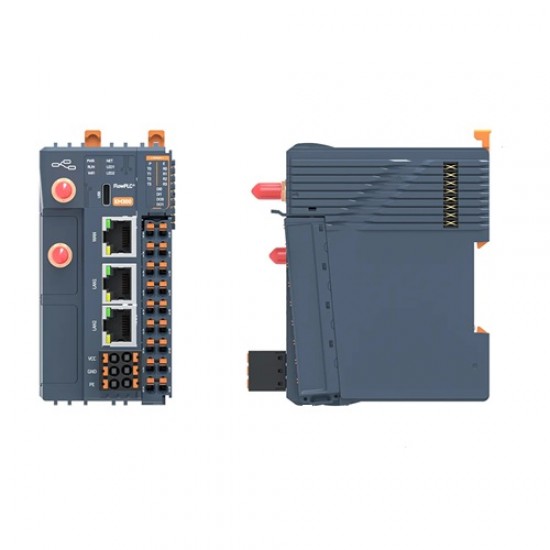

IOTROUTER EM300 Modular Industrial Edge Controller - Based On RK3506J - 512MB RAM - Support Wireless Connectivity

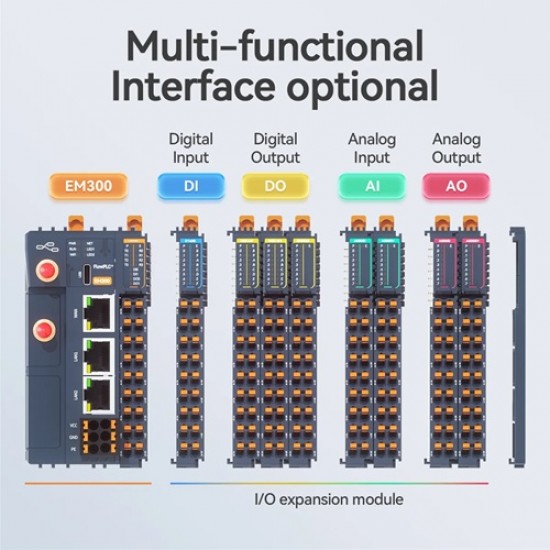

EM300 is an all-in-one modular industrial edge controller, FlowPLC, designed to redefine industrial IoT applications. Powered by a triple-core A7 processor at 1.2GHz with 512MB of RAM, it innovatively integrates six major functions into a single device: edge computing, visual programming, protocol conversion, industrial protocols, industrial routing, and scalable I/O.
With intranet penetration and P2P direct connection technologies, remote device access feels as seamless as local operation. The device also supports intelligent recovery from network connection interruptions and UPS power-off protection, minimizing the risk of data loss during unexpected power outages. EM300 is an ideal choice for improving efficiency and reducing operational costs in industrial environments.
Specifications
- Model: EM300
- Core Configuration
- Processor: RK3506J
- 3 × Cortex-A7 @ 1.2GHz
- RAM: 512MB
- Storage: 4GB
- Expansion Slot: Micro SD card slot, supports up to 128GB
- RTC: Supported (Battery not included by default)
- 4G Module
- Module Type: Quectel - Cat.1 (4G)
- Frequency Bands
- LTE-FDD: B1/B3/B5/B8
- LTE-TDD: B34/B38/B39/B40/B41
- Transmission Power
- LTE-FDD: Class 3 (23 dBm ±2 dB)
- LTE-TDD: Class 3 (23 dBm ±2 dB)
- Bandwidth (Theoretical Max)
- LTE-FDD: Max 10Mbps (DL) / Max 5Mbps (UL)
- LTE-TDD: Max 8.96Mbps (DL) / Max 3.1Mbps (UL)
- SIM Card: SIM0: SMD IC Card, SIM1: Nano SIM
- Wi-Fi
- Standard: 802.11a/b/g/n/ac/ax (Wi-Fi6)
- Frequency Band: Dual-band (2.4GHz + 5GHz)
- Mode: STA + AP
- Theoretical Rate: 433 Mbps
- Optimal Distance: 10m
- AP Connections: Up to 20 clients

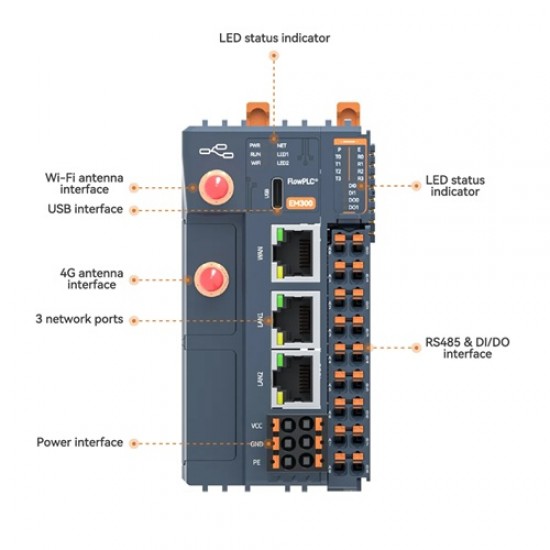

- Ethernet Port
- WAN: 1 × 10/100 Mbps adaptive
- LAN: 2 × 10/100 Mbps adaptive
- USB Type-C: USB 2.0
- RS485
- Ports: 4 Channels
- Wiring: A, B
- Baud Rate: 2400 ~ 921600 bps
- Data Bits: 7, 8
- Stop Bits: 1, 2
- Parity: NONE, EVEN, ODD
- Protection: Isolation, ESD, Surge protection
- Digital Input (DI)
- Channels: 2 Channels
- Wiring: DI × 2, COM × 2
- Input Type: NPN/PNP
- Detection Range: 12V / 24V
- Protection: Isolation, ESD, Surge protection
- Protocols
- Industrial: PLC, CNC, IEC104, IEC61850*, Modbus TCP/RTU
- Meters & IoT: DLT645, HJ212, CJ188, MQTT, HTTP, TCP...
- Software Features
- Management: Remote O&M, Remote Management, Remote Upgrade
- Networking: SD-WAN / Networking, VPN, Firewall
- Data & Dev: Breakpoint Resume, Virtual Network/Serial Port, Local DB, Visual Programming

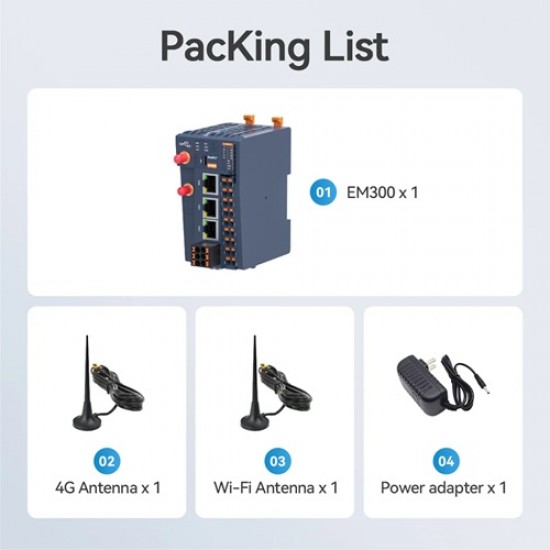

Package Includes
- 1x IOTROUTER EM300 Modular Industrial Edge Controller - Based On RK3506J - 512MB RAM - Support Wireless Connectivity
