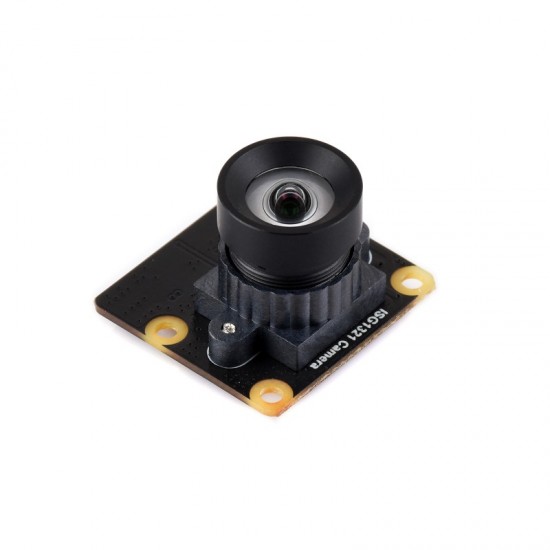

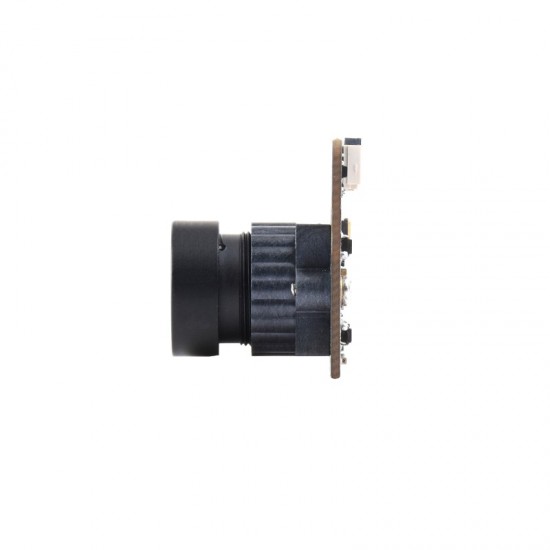

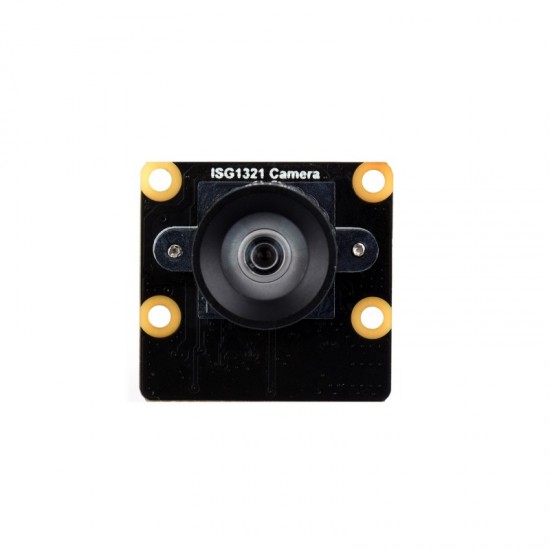

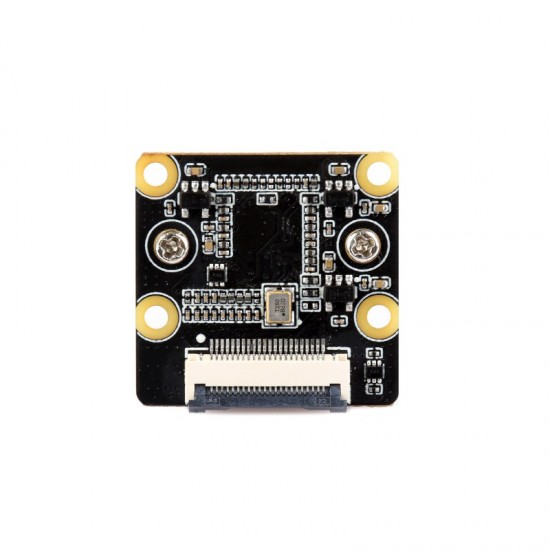

Waveshare ISG1321 1.38MP Mono Camera Module, Global Shutter, 95.5° FOV Wide Angle Lens, Supports 1280 × 1080@120fps Output

Waveshare ISG1321 1.38MP Mono Camera Module, Global Shutter, 95.5° FOV Wide Angle Lens, Supports 1280 × 1080@120fps Output

The Waveshare ISG1321 1.38MP Mono Camera Module is a high-performance imaging solution designed for precision capture in fast-moving and industrial environments. Featuring a global shutter sensor, it eliminates motion distortion, making it ideal for applications such as machine vision, robotics, industrial inspection, and motion tracking.

Equipped with a 1.38MP monochrome sensor, the module delivers sharp and detailed grayscale images with enhanced light sensitivity compared to color cameras. Its wide 95.5° field of view (FOV) allows broader scene coverage, reducing the need for multiple cameras in monitoring or vision systems.

The ISG1321 supports high-speed output up to 1280 × 1080 resolution at 120 frames per second, ensuring smooth image capture even in high-speed scenarios. Designed for seamless integration, it is compatible with various development platforms and embedded systems, making it suitable for both prototyping and industrial deployment.

User Manual / Datasheet / Example Codes Etc.

Features

• Global Shutter Technology – Captures fast-moving objects without distortion or rolling shutter artifacts
• 1.38MP Monochrome Sensor – Delivers high-contrast, detailed grayscale images with improved light sensitivity
• High-Speed Imaging – Supports up to 1280 × 1080 resolution at 120fps for smooth motion capture
• Wide 95.5° Field of View – Covers a larger scene area, reducing the need for multiple cameras
• Low Motion Blur – Ideal for applications like robotics, machine vision, and industrial inspection
• Accurate Image Capture – Ensures precise frame acquisition for tracking and measurement tasks
• Compact and Lightweight Design – Easy to integrate into embedded and space-constrained systems
• Flexible Integration – Compatible with various development boards and embedded platforms
• Stable and Reliable Performance – Suitable for continuous operation in industrial environments

Specifications

• Sensor: ISG1321
• Camera type: mono
• Shutter: Global Shutter
• Interface: MIPI-CSI (2-lane)
• Distortion: < 1%
• Focal length: 2.88mm
• Applications: Machine Vision, Logistics Barcode Reading, and Industrial Inspection
• CMOS size: 1/4 inch
• Pixels: 1.38MP (1280 x 1080)
• Output: 120 FPS (MAX)
• Aperture: F2.4
• FOV: 95.5°
• Focusing: Manual focus

Package Includes

• ISG1321 Camera
• 22PIN FFC cable ~200mm

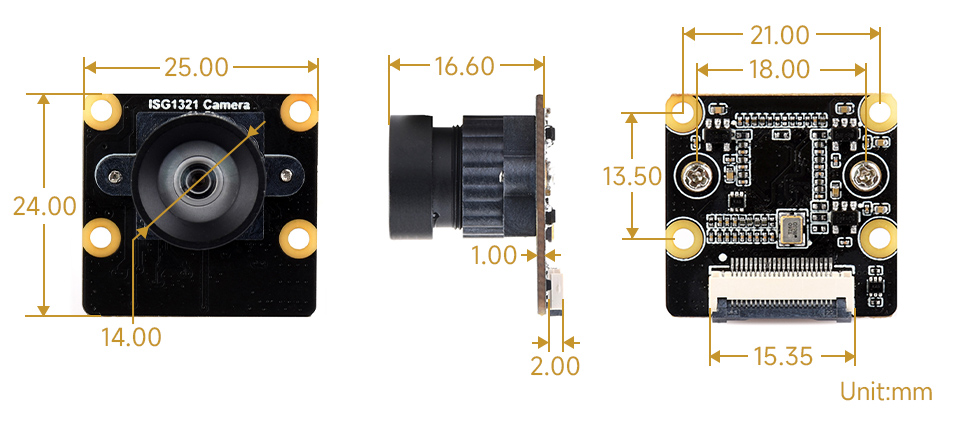

Dimensions
