3MP MP ISX031-H190 Image Sensor GMSL Camera Module, Rolling Shutter, IP67 Protection Degree, More Durable

3MP MP ISX031-H190 Image Sensor GMSL Camera Module, Rolling Shutter, IP67 Protection Degree, More Durable
3MP MP ISX031-H190 Image Sensor GMSL Camera Module, Rolling Shutter, IP67 Protection Degree, More Durable
3MP MP ISX031-H190 Image Sensor GMSL Camera Module, Rolling Shutter, IP67 Protection Degree, More Durable
3MP MP ISX031-H190 Image Sensor GMSL Camera Module, Rolling Shutter, IP67 Protection Degree, More Durable
3MP MP ISX031-H190 Image Sensor GMSL Camera Module, Rolling Shutter, IP67 Protection Degree, More Durable
3MP MP ISX031-H190 Image Sensor GMSL Camera Module, Rolling Shutter, IP67 Protection Degree, More Durable
3MP MP ISX031-H190 Image Sensor GMSL Camera Module, Rolling Shutter, IP67 Protection Degree, More Durable
3MP MP ISX031-H190 Image Sensor GMSL Camera Module, Rolling Shutter, IP67 Protection Degree, More Durable
3MP MP ISX031-H190 Image Sensor GMSL Camera Module, Rolling Shutter, IP67 Protection Degree, More Durable
3MP MP ISX031-H190 Image Sensor GMSL Camera Module, Rolling Shutter, IP67 Protection Degree, More Durable
WaveShare Electronics
3MP MP ISX031-H190 Image Sensor GMSL Camera Module, Rolling Shutter, IP67 Protection Degree, More Durable

This product qualifies for Free Surface Shipping !

All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)
₹​43,565.00
₹​36,919.49 + 18% GST
All Inclusive, Shipping Calculated at Checkout
Assured Cashback of ₹ 369
B2B GST Credit Available
Price in reward points: 36919

3MP MP ISX031-H190 Image Sensor GMSL Camera Module, Rolling Shutter, IP67 Protection Degree, More Durable

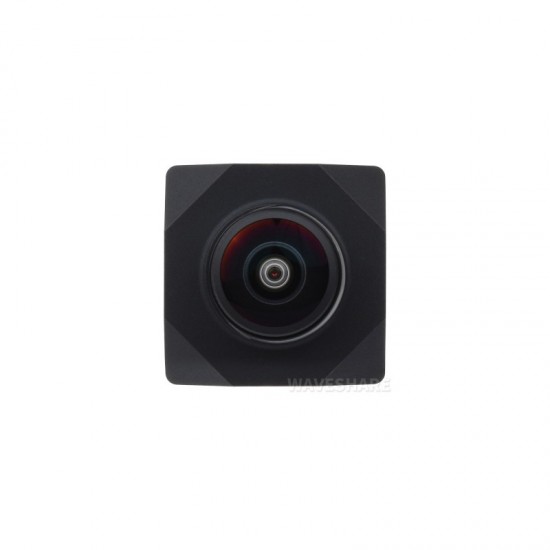

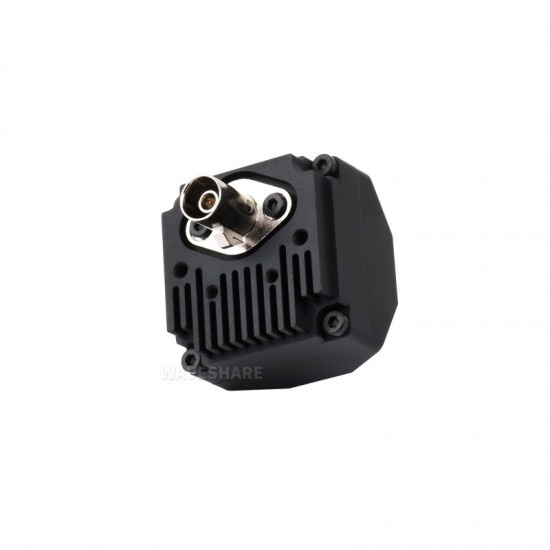

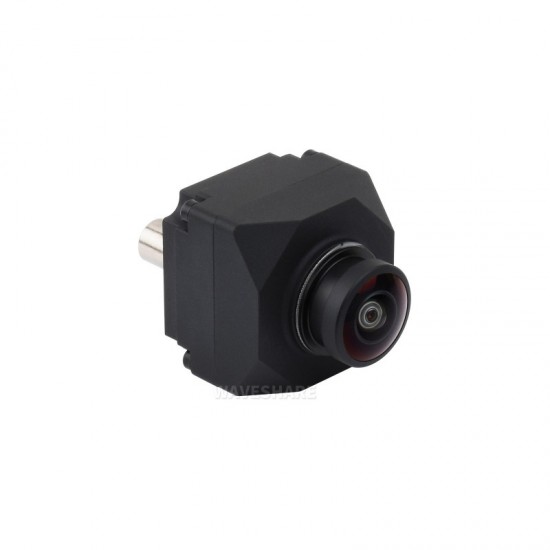

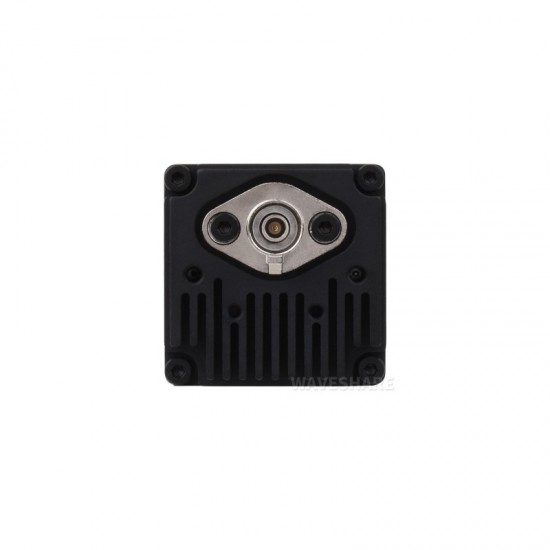

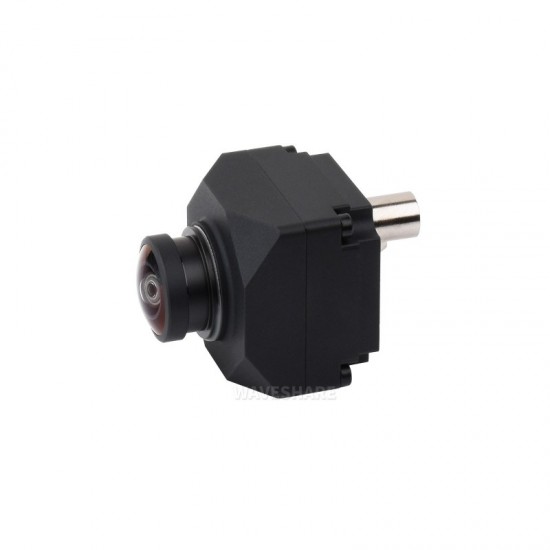

The ISX031-GMSL-Camera-H190 modules is based on the ISX031 automotive-grade CMOS image sensor, integrating a high-performance image signal processor and a Maxim GMSL2 serializer (MAX96717), providing a stable and reliable image capture solution for automotive and intelligent perception applications. The module features an ultra-high dynamic range of up to 120 dB, enabling clear image capture even under direct strong sunlight and in high-contrast lighting conditions. It also maintains excellent low-noise performance, significantly improving image quality in low-light and nighttime environments.

The optical system features multiple aspherical all-glass lenses, effectively suppressing distortion and optical aberrations to ensure consistently sharp and clear images in complex and dynamic application scenarios. Built-in ISP image processing chip, supporting real-time image optimization, including intelligent noise reduction, color calibration, and other functions, enhancing image consistency and stability. With a waterproof structural design, this camera module is ideal for demanding outdoor and automotive environments, and is widely used in intelligent driving, ADAS, and automated perception systems.




Specifications

  • Camera Model: ISX031-GMSL-Camera-H190
  • Sensor
    • Model: 2.95MP ISX031 RGGB
    • Resolution: 1920 × 1536
    • CMOS Size: 1/2.4inch
    • Pixel Size: 3.0um × 3.0um
  • Camera
    • Field of View (H × V): 197.0° × 162.3°
    • Focal Length: 1.14mm
    • Aperture: 2.0
  • ISP: Built-in
  • Frame Rate: 1920 × 1536 at 30fps (Typical)
  • Dynamic Range: 120dB
  • Output Format: YUV422 at 8bit
  • Serializer
    • Model: MAXIM MAX96717
    • I2C Address: 0x80 (8-bit address)
    • GMSL2 Rate: 6Gbps
  • Camera Interface: GMSL2 (Amphenol Fakra Z-Coded connector)
  • Operating Voltage: 9 ~ 12V PoC
  • Operating Temperature: -40°C ~ 85°C
  • Protection Grade: IP67


Package Includes

  • ISX031-GMSL-Camera-H190 x1
  • Fakra-Dual-Female-Cable-174-2M x1



Application Example


Dimensions
