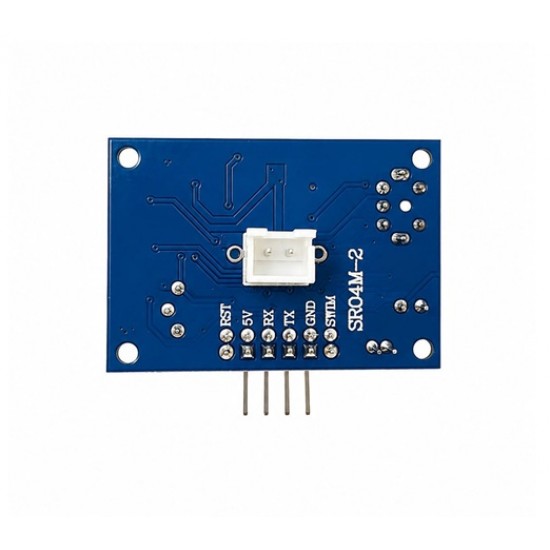

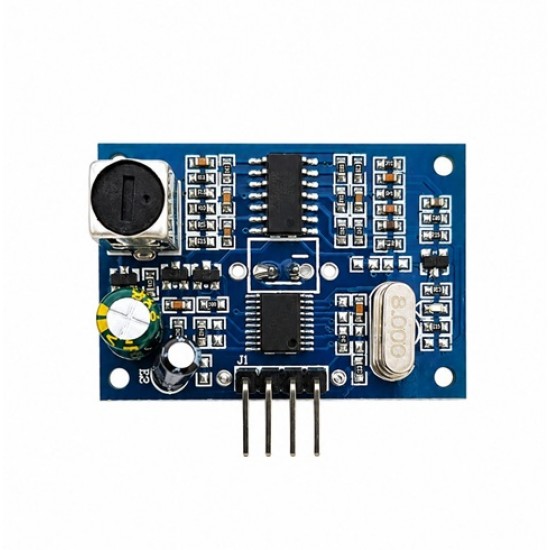

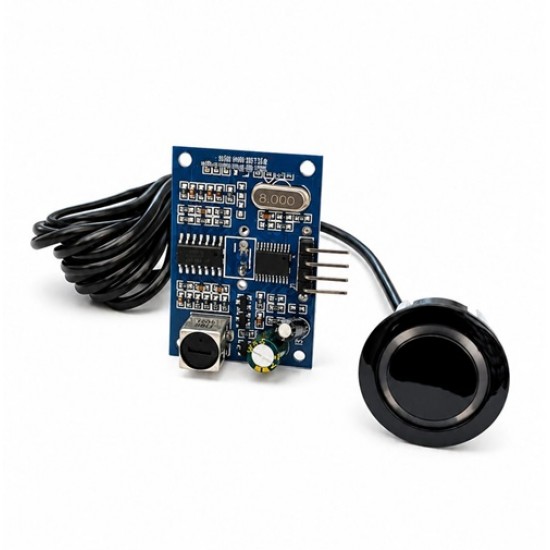

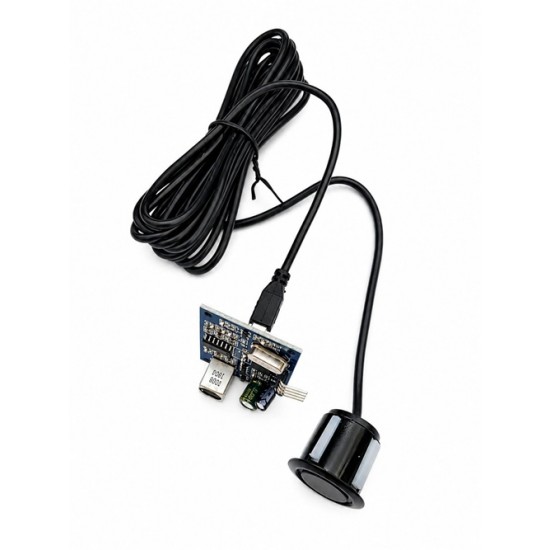

JSN-SR04M-2.0 Waterproof Ultrasonic Distance Sensor Module with Probe
The JSN-SR04M-2.0 Waterproof Ultrasonic Distance Sensor Module with Probe is a reliable non-contact distance measurement solution designed for outdoor and moisture-prone environments. It uses a 40 kHz ultrasonic transducer to measure the distance between the sensor and a target by transmitting ultrasonic pulses and measuring the returning echo. The separate sealed probe helps protect the sensing element from water, rain, dust, and harsh operating conditions.
With an operating voltage of 3.0–5.5V DC, the module can be integrated with popular microcontrollers and development platforms. It supports the familiar TRIG/ECHO pulse interface, making it suitable for applications using Arduino, ESP32, STM32, Raspberry Pi interfaces, and other embedded controllers. Depending on the specific JSN-SR04M-2.0 variant, the sensor can provide a measuring range of approximately 20 cm to 600 cm, with around 1 mm resolution and typical distance accuracy of about ±1 cm.
Features
- Waterproof ultrasonic sensor probe for wet and outdoor environments
- Non-contact distance measurement
- 40 kHz ultrasonic operating frequency
- Approx. 20–600 cm measurement range
- 3.0–5.5V DC operating voltage
- Typical resolution up to 1 mm
- TRIG/ECHO TTL pulse interface
- Separate probe and controller board for flexible installation
- Compact PCB measuring approximately 42 × 29 × 12 mm
- Operating temperature approximately -20°C to +70°C
- Suitable for Arduino, ESP32, STM32 and other microcontroller projects
Specifications
- Model: JSN-SR04M-2.0
- Sensor Type: Waterproof Ultrasonic Distance Sensor
- Ultrasonic Frequency: 40 kHz
- Operating Voltage: 3.0–5.5V DC
- Measurement Range: Approx. 20–600 cm
- Resolution: Up to 1 mm
- Interface: TRIG / ECHO
- Detection Method: Non-contact ultrasonic measurement
- Probe Type: Waterproof remote ultrasonic probe
- Operating Temperature: Approx. -20°C to +70°C
- Module Size: Approx. 42 × 29 × 12 mm
- Application: Water level, tank monitoring, obstacle detection, robotics, industrial sensing
Package Includes
- 1x JSN-SR04M-2.0 Waterproof Ultrasonic Distance Sensor Module with Probe
