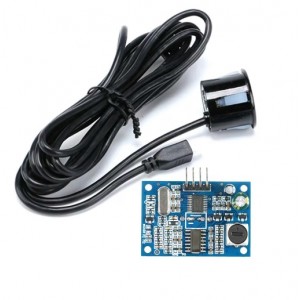

JSN-SR04T-2.0 Waterproof Ultrasonic Distance Measuring Sensor Module With Probe
JSN-SR0T4-2.0 ultrasonic distance measurement module can provide 20cm-600cm non-contact distance sensing function, ranging accuracy up to 2mm; module includes the transceiver of an integrated ultrasonic sensor and control circuit.
Waterproof Ultrasonic Distance Sensor Module JSN-SR04T is an industrial grade sensor to measure distance. Interfacing with it is same as other cheap ultrasonic sensor, but it offers better performance and can be used in harsher environments and is waterproof too! It can be easily interfaced with Arduino.
Features
- Small size, easy to use.
- Low voltage, low power consumption.
- High precision measurement.
- Strong anti-interference.
- Integrated closed waterproof cable probe, suitable for wet, bad measurement occasions.
Specifications
- Working voltage: DC: 3.0V-5.5V
- Working current: less than 8mA
- Cable Length: 2.5 meter
- Probe frequency: 40kHz
- The longest range: 600cm
- Recent range: 20cm
- Long range accuracy: ±1cm
- Resolution: 1mm
- Mileage angle: 75 degrees
- Working temperature: - 20 ℃ - + 70 ℃
- Input trigger signal: 1. TTL pulse above 10uS; 2. Serial port sending command 0X55
- Output echo signal Output pulse width level signal, or TTL
Package Includes
- JSN-SR04T 2.0 Ultrasonic Sensor with 2.5m Separate Probe
