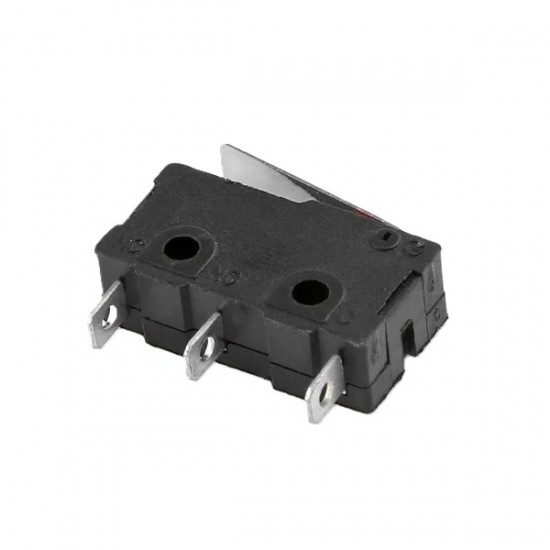

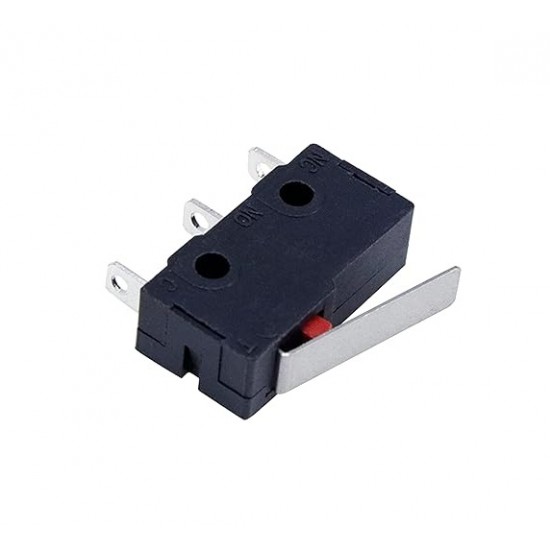

KW-12 3-Pin 5A 250V Micro Switch with Hinge Lever - SPDT NO / NC Snap Action Switch
The KW-12 3-Pin 5A 250V Micro Switch with Hinge Lever is a compact and reliable SPDT snap-action switch designed for precise and fast switching applications. It features Normally Open (NO) and Normally Closed (NC) contacts, allowing flexible circuit control in a wide range of electronic and electromechanical systems.
Built with a durable hinge lever actuator, this micro switch ensures smooth operation, high sensitivity, and long mechanical life. With a current rating of 5A at 250V AC, it is suitable for both low-voltage DC and standard AC applications. The quick-response snap-action mechanism provides accurate switching even with small actuator movement, making it ideal for limit detection and safety control.
The KW-12 micro switch is commonly used in appliances, automation equipment, 3D printers, CNC machines, door sensors, robotics, and industrial control systems where dependable switching performance is required.
Specifications
- Model: KW-12
- Switch Type: Micro Switch / Snap Action Switch
- Contact Configuration: SPDT (Single Pole Double Throw)
- Contact Terminals: 3 Pin (COM, NO, NC)
- Rated Voltage: 125/250V AC
- Rated Current: 5A
- Operating Voltage (DC): Suitable for low-voltage DC applications
- Actuator Type: Hinge Lever
- Contact Form: Normally Open (NO) / Normally Closed (NC)
- Operation Mechanism: Snap Action
- CONTACT RESISTANCE: ≤30mΩ
- INSULATION RESISTANCE: ≥100MΩ
- DIELECTRIC STRENGTH: AC500V 50Hz / 1 Minute
- LIFE EXPECTANCY: 10,000 cycles
- Operating Temperature: –25°C to +85°C
- Mounting Type: Through Hole
- Housing Material: High-strength plastic
- Application: Limit switches, automation equipment, appliances, robotics, 3D printers, CNC machines
Package Includes
- 1x KW-12 3-Pin 5A 250V Micro Switch with Hinge Lever
