450nm High Precision Laser Module, 4.5W Blue Laser Head, Adjustable Focus, Suitable For DIY Engraving Of Multiple Materials

450nm High Precision Laser Module, 4.5W Blue Laser Head, Adjustable Focus, Suitable For DIY Engraving Of Multiple Materials

This product is a blue laser module with a wavelength of 450nm, features a high-precision laser head with 4.5W output power.

• Adjustable focus, the spot size can be adjusted according to the working distance
• Supports engraving on various materials, such as stainless steel, acrylic, wood boards, leaves, etc.

User Manual / Datasheet / Example Codes Etc.

Specifications

• Control Signal Voltage: 2.5V~5V
• Response frequency: <2KHz
• Focus length: 50±1mm / adjustable
• Focus size: <40×400μm
• Control mode: PWM modulation
• Laser mode: Spot
• Operating temperature: 0℃~35℃
• Operating Voltage: 12V

Package Includes

• 1x Laser-450nm-5W

Adjustable laser head for Ideal Focus and spot effect

By rotating the laser head, the focus can be adjusted according to the working distance to achieve a proper spot size

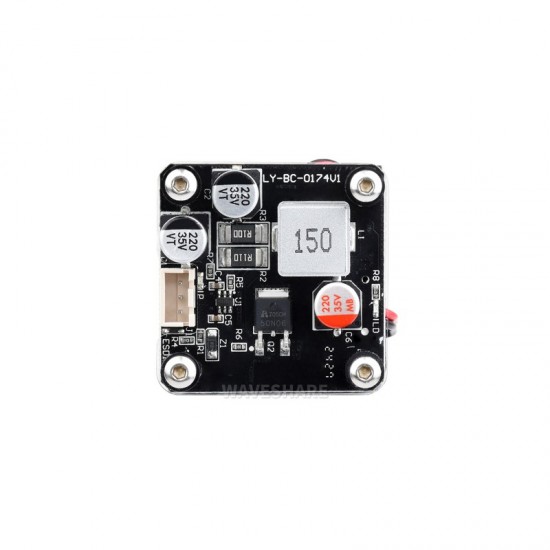

Pin Definition

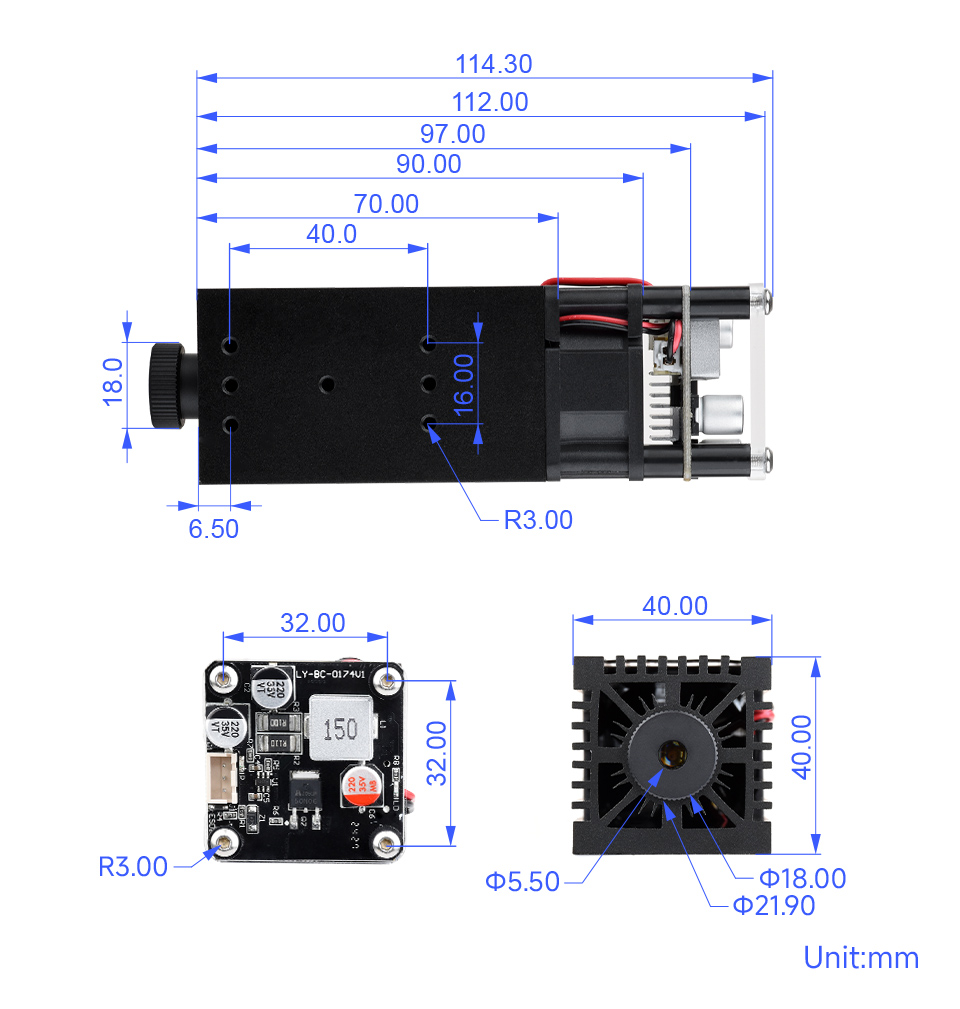

Dimensions
