LILYGO T-Display-P4 Keyboard Extension Board for LILYGO T-Display P4 [K270]

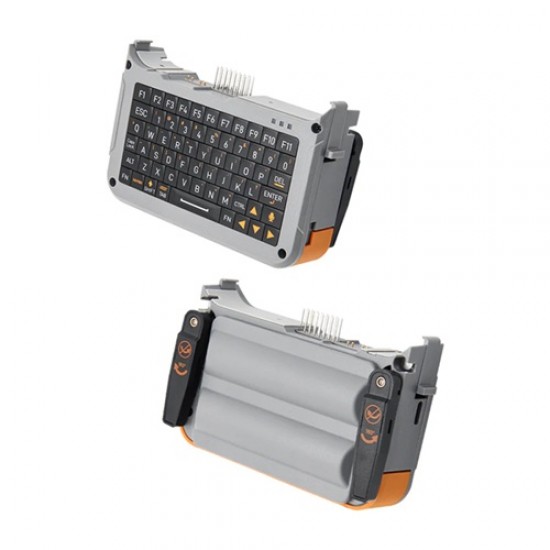

The LILYGO T-Display-P4 Keyboard Extension Board [K270] is an official expansion accessory designed to transform the LILYGO T-Display P4 development board into a compact handheld development platform. It features a built-in physical QWERTY keyboard for convenient text input and integrates multiple wireless communication modules, making it ideal for IoT development, wireless testing, portable terminals, cyberdeck projects, and embedded applications.

In addition to the keyboard, the K270 extension board includes NFC (ST25R3916), 2.4GHz NRF24L01, and Sub-1GHz CC1101 transceivers, significantly expanding the capabilities of the T-Display P4. An onboard TCA8418 keyboard controller and XL9555 I/O expander ensure efficient peripheral management over I²C, while support for a 21700 Li-ion battery enables portable, battery-powered operation. The board also features a 5V USB output and adjustable side brackets for flexible assembly and ergonomic use.


Features

  • Official keyboard expansion board for LILYGO T-Display P4
  • Compact QWERTY physical keyboard for fast text entry
  • Integrated ST25R3916 NFC module
  • Built-in NRF24L01 2.4GHz wireless transceiver
  • Integrated CC1101 Sub-1GHz wireless transceiver
  • TCA8418 keyboard controller via I²C
  • XL9555 16-bit GPIO expander for additional I/O
  • Supports 21700 Li-ion battery (battery not included)
  • USB port with 5V output

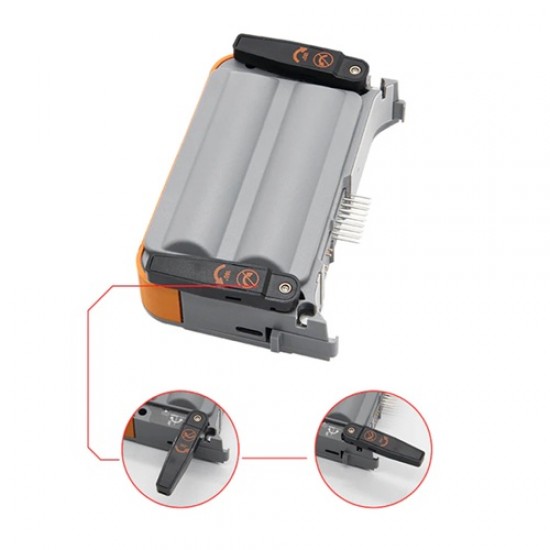

  • Adjustable mounting brackets with 180° rotation
  • Compatible with both TFT and AMOLED versions of the LILYGO T-Display P4
  • Ideal for portable IoT devices, cyberdecks, wireless communication, and embedded development projects


Specifications

  • Compatibility: LILYGO T-Display P4 (TFT & AMOLED)
  • Keyboard: Physical QWERTY Keyboard
  • Keyboard Controller; TCA8418
  • NFC IC: ST25R3916
  • 2.4GHz Module: NRF24L01
  • Sub-1GHz Module: CC1101
  • GPIO Expander: XL9555
  • Battery Support: 21700 Li-ion Battery Holder
  • Interface: I²C, GPIO
  • USB Output: 5V
  • Mounting: Adjustable 180° Side Brackets

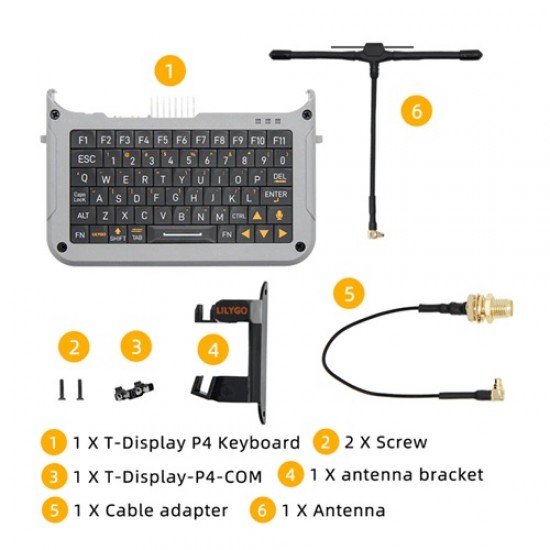

Package Includes

  • 1x LILYGO T-Display-P4 Keyboard Extension Board for LILYGO T-Display P4 [K270]
