LILYGO T-Display S3 Pro LR1121 - ESP32-S3 + Dual Band LR1121 LoRa Wireless Wi-FI Bluetooth Developement Board with 2.33inch IPS Touch LCD & 2000mAh Battery (K252-01)

The T-Display S3 Pro LR1121 combines touchscreen UI, full wireless suite (Wi‑Fi, BLE, LoRa sub‑GHz+2.4 GHz), audio/haptic feedback, battery power, and rugged mounting. It’s a standout for prototyping mobile or remote IoT systems, though expect to dive into LoRa setup and power considerations.

The T-Display S3 Pro LR1121 is based on the external expansion module version of the T-Display S3 Pro.

With dual LoRa bands-- Lora Sub-G and 2.4G.
Motor vibration + RTC + speaker and microphone function, built-in high capacity 2000mAh Li-ion battery.

User Manual / Datasheet / Example Codes Etc.

Features

Platform: ESP32‑S3R8 dual‑core LX7 microprocessor.
Display: 2.33″ IPS capacitive touchscreen (222×480 via ST7796 SPI) .
Wireless: Wi‑Fi 802.11 b/g/n, BLE 5, BT mesh, plus dual‑band LoRa (Sub‑GHz & 2.4 GHz) via LR1121 external module.
Audio & Haptics: Built‑in speaker, microphone, and vibration motor; features a real‑time clock (RTC).
Battery: Integrated 2000 mAh Li‑ion cell.
Enclosure & Connectors: ABS+PC case with side-mounted LoRa antenna ports; bottom ¼″ tripod mount for outdoor use.

Specifications

MCU: ESP32‑S3R8 (dual-core, AI vector support, 512 KB RAM, 8 MB PSRAM)
Flash: 16 MB
DisplayL 2.33″ IPS touchscreen (222×480 pixels)
Sensors: Light & proximity (LTR‑553ALS‑01); RTC
Audio/Vibration: Speaker (MAX98357A), mic (MSM261S4030 or MP34DT05), PWM-controlled motor
LoRa Module: HPD16E with Semtech LR1121 chip (sub-GHz & 2.4 GHz support)
Wireless: Wi-Fi 802.11, BLE 5+BT mesh with separate LoRa via expansion
Programming Platform: Arduino-ide, VS Code
USB Supply: 5V 500mA

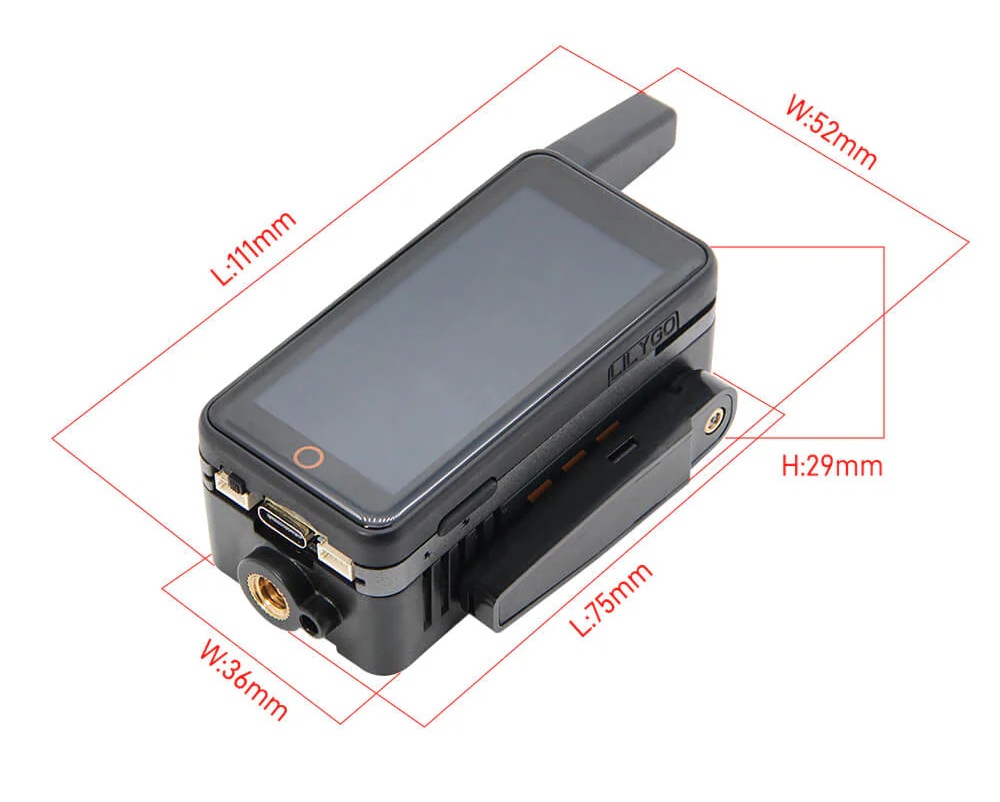

Size: 111x36x52  mm
Onboard functions: Boot+Reset IO12+IO16 Button
