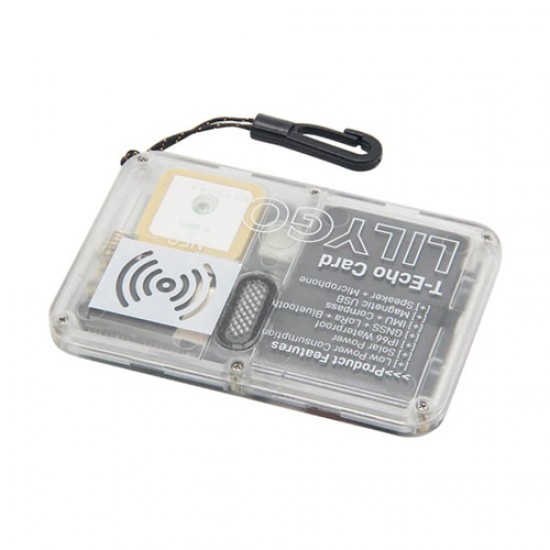

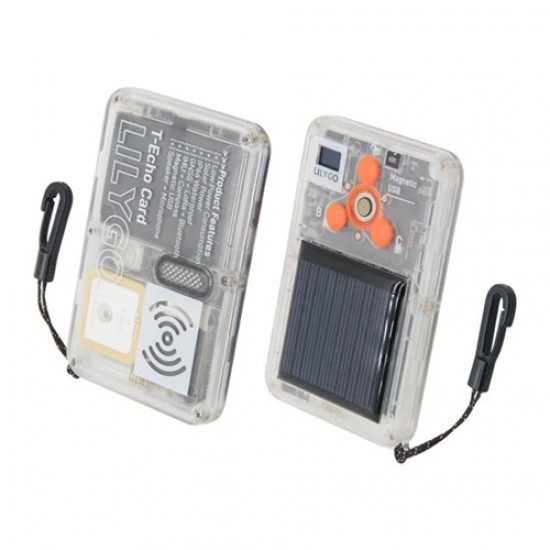

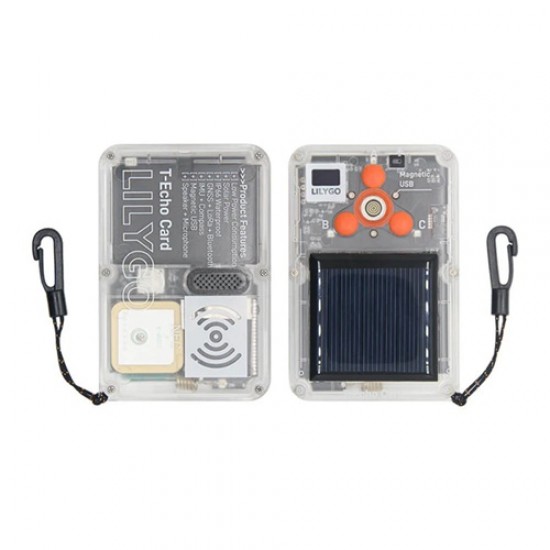

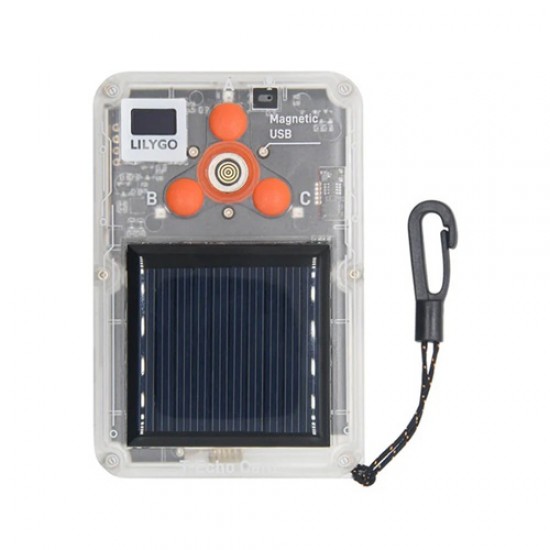

LILYGO T-Echo Card NRF52840 + SX1262 868MHz Wireless LoRa Development Board wtih 0.42inch OLED Display

The LILYGO T-Echo Card is a compact, ultra-low-power LoRa development board built around the Nordic nRF52840 microcontroller and Semtech SX1262 LoRa transceiver. Operating on the 868MHz frequency band, it is designed for long-range wireless communication, Meshtastic networks, IoT applications, asset tracking, and portable sensor nodes. Its slim card-sized design features a 0.42-inch OLED display, integrated GNSS, 9-axis motion sensor, Bluetooth 5.0, microphone, speaker, RGB LED, and solar charging support, making it an all-in-one platform for advanced wireless development.

User Manual / Datasheet / Example Codes Etc.

Features

nRF52840 @ 64 MHz, 256 kB RAM, 1 MB internal Flash + 32 Mbit external SPI Flash
SX1262 LoRa transceiver, 400–945 MHz (variants: 433 / 868 / 915 / 920 MHz)
L76K multi-constellation GNSS (GPS, GLONASS, BeiDou, QZSS)
ICM20948 9-axis IMU (accelerometer + gyroscope + magnetometer)
0.42" OLED display (SSD1306/SSD1315, 72 × 40 px, I2C)
MP34DT05 PDM digital MEMS microphone + MAX98357 I2S mono amplifier
WS2812C-2020 RGB LED (256 brightness levels)
Solar charging: 0.25 W, 5 V
Wireless: BLE 5, Thread, Zigbee, ANT, NFC, 802.15.4, Bluetooth Mesh
Compact: 90 × 60 × 9.5 mm

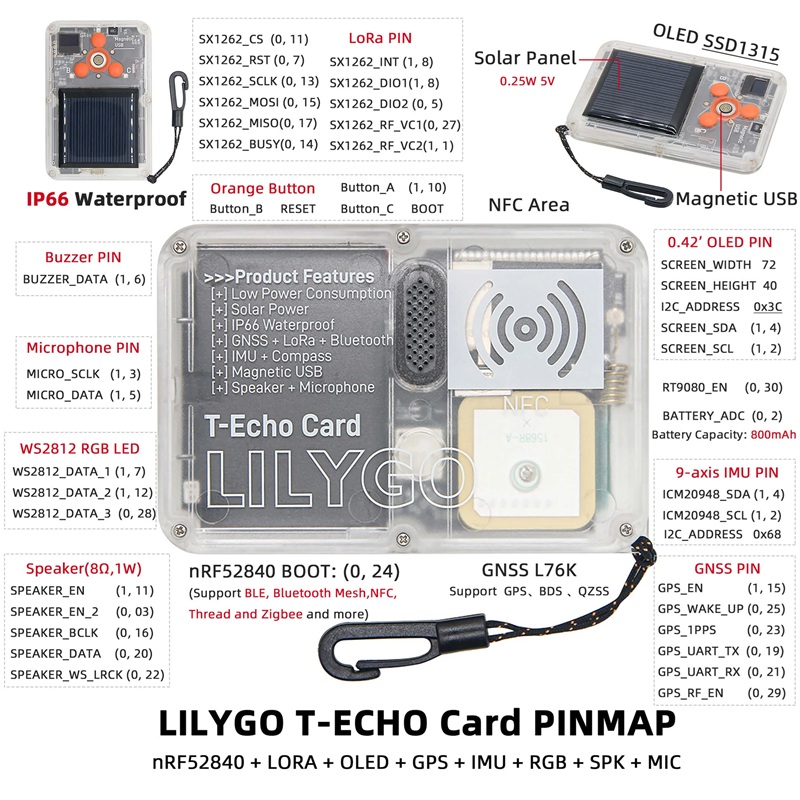

Specifications

MCU: NRF52840
FLASH: 1MB
RAM: 256kB
Wireless: Bluetooth 5, Thread, NFC, Bluetooth Mesh, ANT, 802.15.4, Zigbee
LoRa: SX1262, Long Range, Low Power
Support Bands: 400~520MHz, 830~945MHz
Display: 0.42 inch OLED I2C, Resolution: 72 x 40, Driver: SSD1315
GNSS Module: L76K, Support: GPS, GLONASS, BeiDou, QZSS, Multi-system joint positioning + AGNSS
Motion Sensor: ICM20948 Low power 9-axis, 3-axis Gyroscope + 3-axis Accelerometer + 3-axis Compass + DMP
Flash Memory: 32M-bit Serial Multi I/O Flash, Chip: ZD25WQ32CEIGR, Interface: SPI
RGB LED: Full-color WS2812, three primary color can achieve 256 brightness display
Speaker: I2S Class-D Mono Amp, Driver: MAX98357, Output: 8Ω 1W
Microphone: Digital MEMS Low-power, Driver: MP34DT05, Protocol: PDM
Solar Panel: 0.25W, 5V
Dimensions: 90 x 60 x 9.5 mm

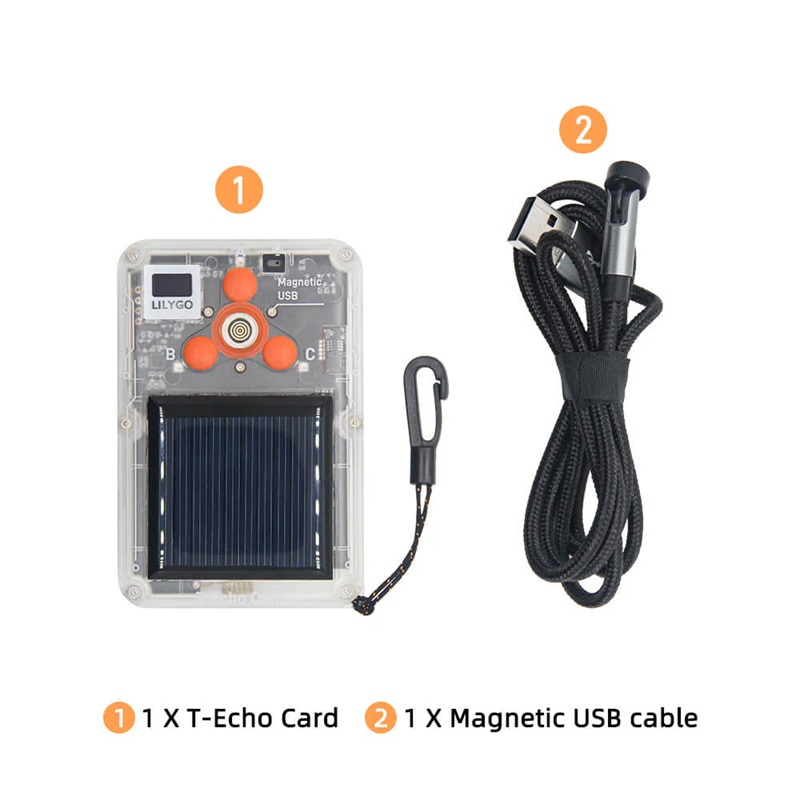

Package Includes

1x LILYGO T-Echo Card NRF52840 + SX1262 868MHz Wireless LoRa Development Board wtih 0.42inch OLED Display
