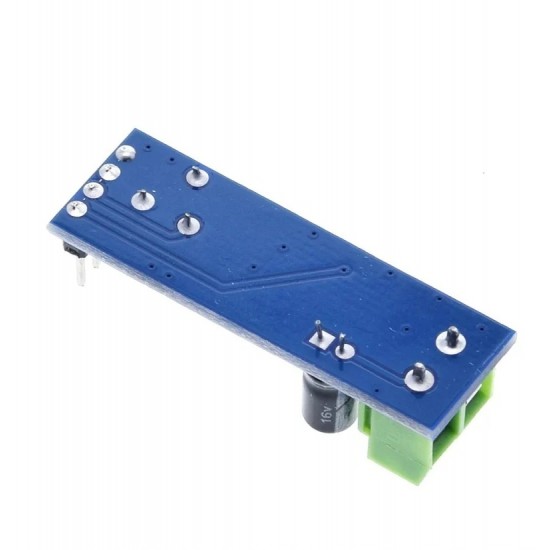

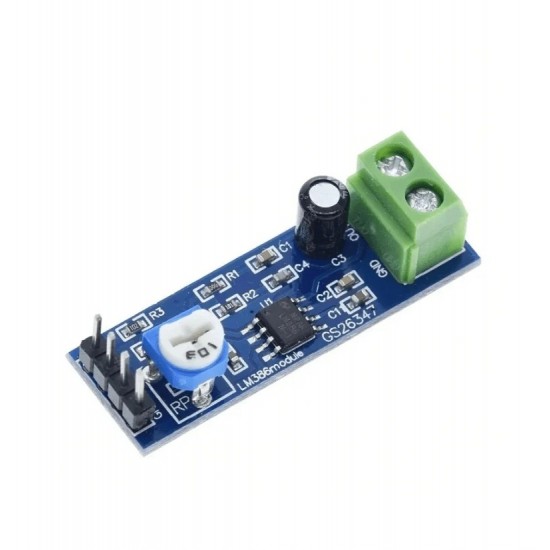

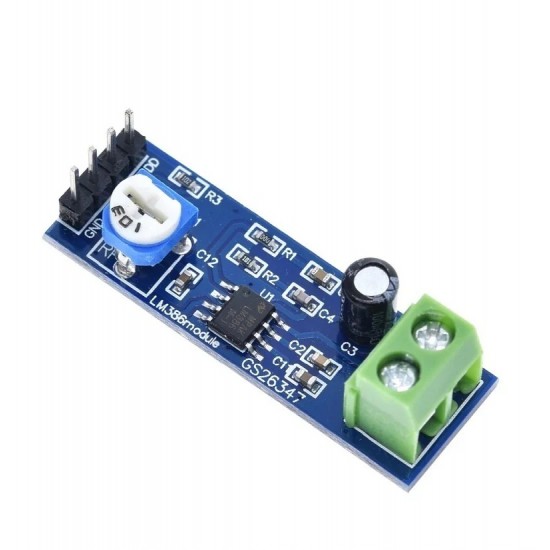

LM386 Audio Amplifier Module
The LM386 Audio Amplifier Module is a compact and easy-to-use audio amplification board based on the popular LM386 low-voltage audio power amplifier IC. Designed to amplify small audio signals from sources such as microcontrollers, MP3 players, smartphones, and audio output pins, this module is ideal for DIY audio projects and embedded sound applications.
With a wide operating voltage range and onboard volume control potentiometer, the LM386 module delivers clear, higher power audio output suitable for driving small speakers in portable devices, alarm systems, buzzer circuits, and educational electronics kits. Its simple interface and few external components make it perfect for beginners and hobbyists looking to add sound amplification to their projects without complex circuitry.
Specificatons
- Amplifier IC: LM386
- Operating Voltage: 5V – 12V DC (typical 9V operation)
- Gain: Adjustable (internally set, externally adjustable via potentiometer)
- Output Power: Approx. 0.5W – 1W (depends on load and supply voltage)
- Input Impedance: ~50 kΩ
- Speaker Impedance: 4Ω – 8Ω recommended
- Frequency Response: ~20Hz – 20kHz (audio range)
- Control: Onboard volume control potentiometer
- Input Interface: Audio input header
- Output Interface: Speaker output terminals
- Board Size: Compact PCB form factor (varies by manufacturer)
Applications
- Portable speaker projects
- Audio amplification for microcontroller projects
- Sound output for alarms and alerts
- DIY music players and audio testers
- Educational electronics
Package Includes
- 1x LM386 Audio Amplifier Module
